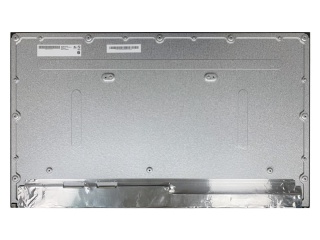

G270QAN02.0

G270QAN02.0

Download PDF Send Message

Basic Parameters

Panel Brand	AUO	panel model	G270QAN02.0
Panel size	27.0 inches	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	2560(RGB)x1440, Quad-HD,108PPI	pixel layout	RGB vertical stripes
display area	596.736(W)x335.664(H) mm	Appearance size	606.44(W)x355.56(H)x15.03(D) mm
viewable area		surface treatment	Hard coating(3H)
panel brightness	350 cd/m² (Typ.)	contrast	1000:1 (Typ.) (TM)
visual Angle	89/89/89/89 (Typ.) (CR≥10)	work pattern	AHVA, normally black display, transmissive
viewing direction	full-view	reaction time	8/8 (Typ.) (Tr/Td) ms
display color	16.7M,100% sRGB	light source type	4 strings WLED,30K hours, without driver
working frequency	60Hz	touch screen	touchless
Panel Weight	3.50Kgs (Typ.)	panel application	Industrial, Medical Imaging
signal interface	LVDS(4 ch,8-bit), 70 pins, terminals
driving voltage	5.0V (Typ.)
work environment	Operation: 0~50° C; Storage: -20 ° C ~ 60 ° C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
AUO	G240HVT01.0	24"	1920×1080	260 nits	5000:1	WLED	LVDS	30	-20~70 ° C
AUO	G240UAN01.0	24"	1200×1920	900 nits	1000:1	WLED	LVDS	51	0~50℃
Tianma	P2700FHF1MA00	27"	1920×1080	1500 nits	1000:1	WLED	LVDS	30	-30~70 ° C
AUO	G270QAN01.2	27"	2560×1440	550 nits	1000:1	WLED	LVDS	92	0~50℃
AUO	G270QAN01.4	27"	2560×1440	400 nits	2000:1	WLED	LVDS		0~50℃
AUO	G240UAN01.3	24"	1200×1920	410 nits	1350:1	WLED	LVDS	51	0~50℃
AUO	G240UAN01.2	24"	1200×1920	400 nits	1800:1	WLED	LVDS	51	0~50℃
