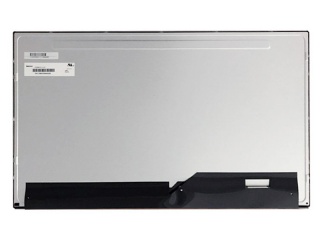

G238HCJ-L01

G238HCJ-L01

Download PDF Send Message

Basic Parameters

Panel Brand	Innolux	panel model	G238HCJ-L01
Panel size	23.8 inches	panel type	a-SiTFT-LCD, LCD Module
resolution ratio	1920(RGB)x1080,FHD,92PPI	pixel layout	RGB vertical stripes
display area	527.04(W)x296.46(H) mm	Appearance size	543(W)x317.4(H)x11.6(D) mm
visible size	530.2(W)x299.6(H) mm	surface treatment	Haze (25%),Hard coating (3H)
Brightness (cd/m²)	350 (Typ.)	contrast	1000:1(Typ.) [Transmission]
best angle	full-view	optical mode	AAS, normally black display, transmissive
visual Angle	89/89/89/89 (Typ.) (CR≥10)	response speed	8/7 (Typ.) (Tr/Td) ms
number of colors	16.7M,72% NTSC	Backlight type	WLED,30K hours, no drive
Screen Weight	2.71Kgs (Typ.)	be the same with	industrial engineering
refresh rate	60Hz	touch function	touchless
signaling system	LVDS(2 ch,8-bit), Terminals, 30 pins
supply voltage	5.0±0.5V
maximum rated	Storage temperature: -20 ° C ~ 60 ° C Working temperature: 0~50 ° C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P2380FHF1MB00	23.8"	1920×1080	350 nits	1800:1	WLED	LVDS	30	0~50° C
Tianma	P2380UHF1MA00	23.8"	3840×2160	1300 nits	1200:1	WLED	eDP	30	-20~70 ° C
Innolux	G238HCJ-L01	23.8"	1920×1080	350 nits	1000:1	WLED	LVDS	30	0~50 ° C
Innolux	G238HCJ-L02	23.8"	1920×1080	450 nits	1000:1	WLED	LVDS	30	0~60℃
Innolux	G238HCJ-LH1	23.8"	1920×1080	1000 nits	1000:1	WLED	LVDS	30	-30~80 °C
AUO	G238HAN01.5	23.8"	1920×1080	350 nits	1800:1	WLED	LVDS	30	0~50 ° C
AUO	G238HAN04.0	23.8"	1920×1080	350 nits	1000:1	WLED	LVDS		0~60℃
AUO	G238HAN01.0	23.8"	1920×1080	250 nits	1000:1	WLED	LVDS	30	0~50℃
AUO	G238HAN01.3	23.8"	1920×1080	600 nits	1000:1	WLED	LVDS	30	0~50℃
AUO	G238HAN01.1	23.8"	1920×1080	400 nits	1000:1	WLED	LVDS	30	0~50 ° C
