G190ETN02.0

Ultra-high Brightness, White LED Backlight, Lifespan exceeding 50,000 hours, Front-mounted Terminals, and Mirror surface.

Download PDF Send Message

Basic Parameters

Brand	AUO	Type	a-Si TFT-LCD
Model	G190ETN02.0	Surface Finish	Mirror (Haze 0%) Hard coating
Size (inch)	19	Pixel Layout	RGB Vertical Strip
Outline Dimension (WxHxD mm)	396(W)×324(H)×17.7(D)	Operating Mode	TN
Active Area (WxH mm)	376.32(W)x301.056(H)	Backlight Type	WLED
Viewing Angle	80/80/80/80	Interface	LVDS, 30 pins
Resolution	1280x1024 (SXGA)	Response Time	22/3 (Typ.)(Tr/Td) ms
Brightness (cd/m²)	1000	Dispay Colors	16.7M, 72%NTSC
Contrast Ratio	800:1	Operating Temperature (°C )	0~ 60
Operating Voltage	5V	Storage Temperature (°C )	-20 ~ 60
Operating Frequency	60Hz	Weight	1.99Kgs
Application	Industrial Control, Game Imaging, Outdoor High Brightness Environment

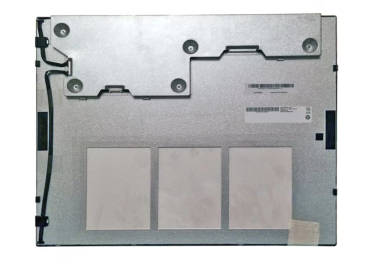

AUO G190ETN02.0 Product Real Shot

Why Choose Us?

12 Years of LCD Supply Chain Expertise
Since 2013, we’ve specialized in LCD distribution and customization, representing 7 top brands like AUO, TIANMA, and BOE. With over 100,000 panels in stock and 24/7 global shipping, our supply chain is rock-solid and reliable.

Backed by 7 International Certifications
ISO 9001/13485/14001, CE, RoHS, and IATF 16949 (in progress) — every shipment includes original test reports, ensuring zero export hurdles.

One-Stop Engineering Customization
Our 15-member expert team delivers prototypes in 7 days and mass production in 30. We support IP67 protection, -40~85℃ extreme temps, MIL-STD shock resistance, and sunlight-readable displays.

Proven by 3000+ Global Clients
Serving industry leaders like CRRC, Philips Healthcare, and BYD Automotive, we’ve delivered over 3 million flawless panels with zero returns and 95+ NPS satisfaction.

Request Full Free Quotation & Custom Solution Now → Email & WhatsApp & Wechat

FAQ

1. What are the brightness specifications for AUO G190ETN02.0?
A: Brightness reaches 1200 cd/m², classified as industrial-grade high brightness. It remains clearly visible under strong light and is fully suitable for outdoor scenarios.

2. What customization dimensions does HXD support?
A: We support brightness adjustments, interface additions/removals, and aesthetic optimizations. Our streamlined OEM/ODM process offers one-on-one technical coordination and rapid fulfillment for bulk orders.

3. Do you provide free technical documentation and quotes?
A: Yes. We offer complimentary product manuals, wiring diagrams, and other technical materials. Quotes are provided in real-time, typically within 2-5 hours after submitting your request.

3. What is the product warranty period?
A: One-year warranty for the entire unit. Mean Time Between Failures (MTBF) ≥50,000 hours. Prompt after-sales support.

4. Besides AUO, can you supply 19-inch high-brightness displays from other brands like IVO or BOE?
A: Yes. HXD covers brands including AUO, IVO, BOE, Sharp, and CHIMEI. We can match different brand models of 19-inch high-brightness LCD displays based on your requirements.

5. What interface types are available?
A: Equipped with HDMI, VGA, DVI, and BNC interfaces, compatible with most industrial control hosts, computers, and AV equipment for strong versatility.

6. What are the shipping lead times and logistics methods for cross-border orders?
A: Standard orders ship within 3-5 days. We support DHL and FedEx cross-border logistics, providing complete customs documentation to facilitate rapid clearance.

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
AUO	G190EAN01.1	19"	1280×1024	1300 nits	1000:1	9S6P WLED	LVDS	30	-20 ~ 60 °C
AUO	G190EAN01.6	19"	1280×1024	1000 nits	1000:1	WLED	LVDS	30	-20 ~ 60 °C
AUO	G190ETN01.8	19"	1280×1024	800 nits	1000:1	WLED	LVDS	30	-30 ~ 70 °C
Sharp	LQ190E1LC08	19"	1280×1024	400 nits	800:1	WLED	LVDS	31	0~75℃
Sharp	LQ190E1LX76	19"	1280×1024	470 nits	1500:1	WLED	LVDS	30	-20~70℃
Sharp	LQ190E1LX75T	19"	1280×1024	350 nits	1500:1	WLED	LVDS	30	-20~70℃
Sharp	LQ190E1LW72	19"	1280×1024	350 nits	1500:1	WLED	LVDS	30	-20~70℃
