Wide color gamut, DCI-P3, sRGB, Wide Temperature Operation Range, White LED Backlight, Lifespan ≥ 50,000 hours, With LED Driver, Front-Mount Connectors, Matte Surface.

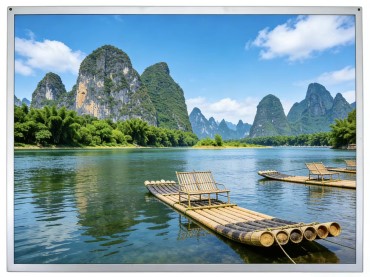

AUO G190ETN01.4 is a 19.0-inch industrial-grade LCD display module designed for high-frequency use in harsh environments. This LCD display module features a 1280×1024 (SXGA) resolution and a pixel density of 86 PPI, delivering clear and detailed images within 19-inch display area. Whether for industrial control interfaces, medical imaging displays, or public information terminals, it ensures accurate and readable information transmission. A brightness of 450 cd/m² and a high contrast ratio of 1000:1 maintain excellent visibility even in complex lighting conditions. AUO G190ETN01.4 supports a wide operating temperature range from -30℃ to 85℃, and its long-life LED backlight (50,000 hours) and built-in LED driver significantly reduce maintenance frequency and long-term costs. It adopts an LVDS dual-channel 8-bit signal interface, offering strong compatibility and adaptability to mainstream industrial control boards and embedded systems, facilitating rapid integration and upgrades.
Choosing AUO G190ETN01.4 means choosing more than just an LCD panel. It's about injecting a long-lasting, stable, clear, and reliable visual core into your equipment.
Backlight Features
Lamp Type
WLED
Replacement
---
Position
Edge Light type (bottom)
Amount
4 strings
Lamp Shape
4 series
Life Time
50K (Min.) hours

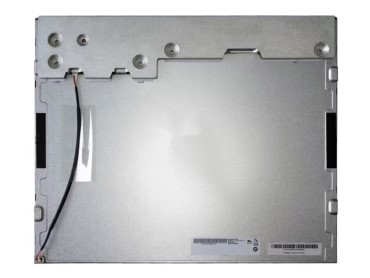

Interface Features
Back
Type
Connector
Interface Details
Brand
Model
Pins
Pin Pitch
JST-Purple
SM08B-GHH-TB(HF)
1 pcs
8 pins
1.25 mm
Driver Electrical
with LED Driver
Current Input
1.25/1.73A (Typ./Max.)
Voltage Input
10.8/12.0/13.4V (Min./Typ./Max.)
Consumption
15/18.7W (Typ./Max.)
AUO G190ETN01.4, with wide temperature adaptability, long-life backlight, and stable electrical performance, is widely used in the following industries and terminal equipment:

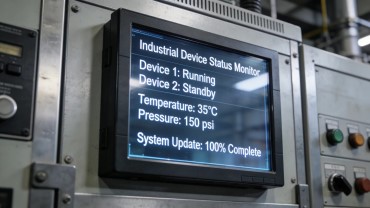

Application Terminals: Human-Machine Interfaces (HMIs), industrial PCs, CNC equipment, production line dashboards etc.
In industrial environments with dust, high temperatures, and vibration, it provides a stable and clear real-time monitoring and operation interface, reducing the risk of production line downtime due to display failure.
Application Terminals: Patient monitors, imaging diagnostic equipment, operating room display terminals, mobile medical vehicles etc.
Brightness and wide viewing angle ensure accurate data reading by medical personnel under various lighting conditions; wide temperature design and long-life backlight meet the stringent reliability requirements of medical equipment.

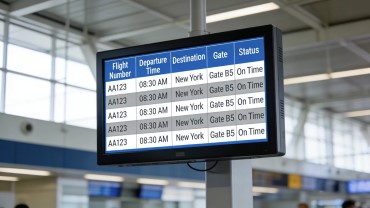

Application Terminals: Self-service kiosks, ticket vending machines, queuing systems, digital signage etc.
The matte screen reduces reflections, improving the user experience; the long-life design reduces maintenance frequency, making it suitable for unattended scenarios.
Application Terminals: Vehicle-mounted displays, rail transit passenger information systems, outdoor charging pile displays etc.
Wide operating temperature range adapts to outdoor temperature variations; 450 cd/m² brightness maintains good visibility even under direct indoor light, ensuring uninterrupted information transmission.
Application Terminals: Command and dispatch screens, monitoring terminals, portable testing equipment etc.
High reliability, wide temperature adaptability, and stable electrical performance meet the requirements for long-term operation in harsh environments, ensuring the visibility of mission-critical systems.
Choosing the right TFT LCD display means more than matching specifications, it’s about ensuring long-term stability for your end product. Whether you're in the prototyping phase, upgrading an existing system, or planning mass production, we are here to support you with:
• Genuine AUO Panels — Full traceability and quality assurance
• Expert Technical Support — From selection to testing to mass production
• Flexible Supply Options — Samples, small batches, and long-term volume orders
• Complete Integration Solutions — Compatible driver boards, touch screen, and cables available
📩 Send Us an Inquiry Today
Share your project details, and we’ll get back to you within one business day with datasheets, sample pricing, and tailored recommendations.
Q. Is your G190ETN01.4 a brand new, original LCD panel?
A: Yes, all G190ETN01.4 LCD panels we supply are brand new LCD display modules manufactured directly by AUO, with complete packaging. All products undergo rigorous power-on testing and appearance inspection before shipment to ensure quality meets industrial-grade standards.
Q. Does AUO G190ETN01.4 support touch functionality?
A: AUO G190ETN01.4 itself is a non-touch LCD display module, but we can provide a matching industrial-grade touch screen (resistive/capacitive/infrared) and touchscreen bonding services. If you require touch functionality, please specify this in your inquiry, and we will provide you with a complete touch solution, including bonding, driver adaptation, and other one-stop support.
Q. What is the interface of AUO G190ETN01.4?
A: G190ETN01.4 uses a standard LVDS dual-channel 8-bit interface (30-pin terminal), and the driving voltage is 5V. If your system motherboard natively supports LVDS signals, you can connect and use it directly. If you need compatibility with common interfaces such as HDMI, VGA, and DVI, we can provide matching industrial-grade driver boards.
Q. Do you support sample testing?
A: Yes. We offer sample sales services to facilitate your functional verification and structural adaptation. The sample procurement process is as follows:
1. Submit an inquiry, specifying the sample quantity and application scenario.
2. We provide a sample quotation and delivery date.
3. After confirmation, we arrange shipment, including specifications and testing guidelines.
4. Technical support is provided during sample testing. The sample quantity can be flexibly arranged according to requirements; 1-5 pieces are supported.
Q. What is the delivery cycle for AUO G190ETN01.4?
A: Samples/small batches (1-50 pieces): Shipped within 1-7 working days if in stock. Bulk orders (50 pieces or more): Usually 2-4 weeks depending on order quantity and inventory.
Q. Are there matching cables?
A. AUO G190ETN01.4 uses a 30-pin LVDS connector. We can provide matching LVDS signal cables and backlight driver cables to ensure a stable connection with the driver board or motherboard. Custom cable lengths or interface orientations can be specified in your inquiry.
Q. What is the operating temperature range of AUO G190ETN01.4?
A: AUO G190ETN01.4 supports operating temperatures from -30℃ to 85℃, and the storage temperature range is also from -30℃ to 85℃. Combined with 450 cd/m² brightness and a matte anti-glare surface treatment, it is suitable for harsh environments such as industrial sites, semi-outdoor terminals, and automotive equipment.
Q. What happens if AUO G190ETN01.4 malfunctions during the warranty period?
A: We offer a 12-month quality warranty (calculated from the date of shipment). During the warranty period, free repair or replacement services will be provided for non-human-caused quality problems.
