G190EAN01.2

Ultra-high Brightness, White LED Backlight, Lifespan exceeding 50,000 hours, Front-mounted Terminals, and Matte surface.

Download PDF Send Message

Basic Parameters

Brand	AUO	Type	a-Si TFT-LCD
Model	G190EAN01.2	Surface Finish	Matte
Size (inch)	19	Pixel Layout	LCR Vertical Strip
Outline Dimension (WxHxD mm)	396(W)×324(H)×17.5(D)	Operating Mode	AHVA
Active Area (WxH mm)	376.32(W)x301.056(H)	Backlight Type	WLED
Viewing Angle	89/89/89/89	Interface	LVDS, 30 pins
Resolution	1280x1024 (SXGA)	Response Time	13/12 (Typ.)(Tr/Td) ms
Brightness (cd/m²)	1300	Dispay Colors	Gray Level
Contrast Ratio	1000:1	Operating Temperature (°C )	0~ 50
Operating Voltage	5V	Storage Temperature (°C )	-20 ~ 60
Operating Frequency	60Hz	Weight	1.55Kgs
Application	Industrial Control, Medical Imaging, Outdoor High Brightness Environment

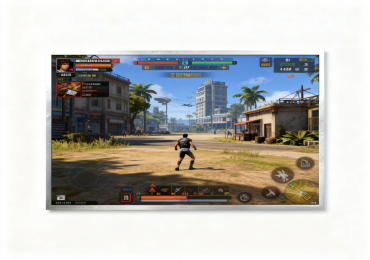

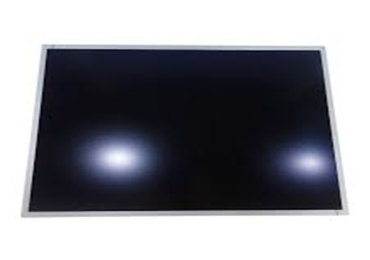

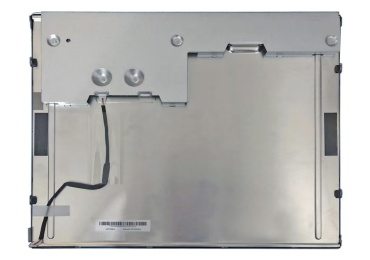

AUO G190EAN01.2 Product Real Shot

Why Choose Us?

✅12 Years of LCD Supply Chain Expertise
Since 2013, we’ve specialized in LCD distribution and customization, representing 7 top brands like AUO, TIANMA, and BOE. With over 100,000 panels in stock and 24/7 global shipping, our supply chain is rock-solid and reliable.

✅Backed by 7 International Certifications
ISO 9001/13485/14001, CE, RoHS, and IATF 16949 (in progress) — every shipment includes original test reports, ensuring zero export hurdles.

✅One-Stop Engineering Customization
Our 15-member expert team delivers prototypes in 7 days and mass production in 30. We support IP67 protection, -40~85℃ extreme temps, MIL-STD shock resistance, and sunlight-readable displays.

✅Proven by 3000+ Global Clients
Serving industry leaders like CRRC, Philips Healthcare, and BYD Automotive, we’ve delivered over 3 million flawless panels with zero returns and 95+ NPS satisfaction.

📩 Request Full Free Quotation & Custom Solution Now → Email & WhatsApp & Wechat

FAQ

1. Does this display meet medical device usage standards?
A: Certified for medical-grade displays with low blue light and high color accuracy, suitable for medical diagnostics, monitoring equipment, and similar applications.

2. Does the controller board support brightness adjustment?
A: Yes! The controller board adjusts brightness (50-1300 cd/㎡). Optional light sensor cables enable automatic light adaptation.

3. Can HXD's customization services meet specialized medical/industrial requirements?
A: Absolutely! We support medical-grade protection, industrial-grade wide temperature adaptation, interface customization, and more. OEM/ODM clients receive dedicated technical support for rapid implementation.

4. What are the operating temperature range and lifespan?
A: Operates within 0℃ to 50℃. MTBF ≥ 50,000 hours. One-year warranty on the entire unit.

5. Besides AUO G190EAN01.2, can you provide other brands of 19-inch high-brightness displays?
A: Yes. HXD comprehensively covers brands including AUO, IVO, BOE, Sharp, and CHIMEI, with models available to match your requirements.

6. What does the complimentary technical documentation include?
A: Product manuals, wiring diagrams, drivers, etc. Precise quotations provided within 12 hours of request submission. Expedited support available.

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
AUO	G190EAN01.3	19"	1280×1024	330 nits	1000:1	WLED	LVDS	30	0~50°C
AUO	G190EG01 V1	19"	1280×1024	350 nits	1000:1	WLED	LVDS	30	0~50℃
AUO	G190EAN01.0	19"	1280×1024	300 nits	1000:1	WLED	LVDS	30	0~50℃
Sharp	LQ190E1LW72	19"	1280×1024	350 nits	1500:1	WLED	LVDS	30	-20~70℃
Sharp	LQ190E1LW61	19"	1280×1024	470 nits	1500:1	WLED	LVDS	30	-15~65℃
AUO	G190EG02 V1	19"	1280×1024	300 nits	2000:1	WLED	LVDS	30	0~60℃
AUO	G190ETN01.4	19"	1280×1024	450 nits	1000:1	WLED	LVDS	30	-30~85°C
AUO	G190EAN01.5	19"	1280×1024	700 nits	1000:1	WLED	LVDS	30	0~50℃
