G185HAN01.100

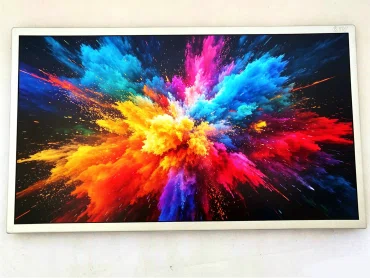

AUO LCD Display Panel AUO G185HAN01.100

AUO G185HAN01.100 is an 18.5-inch a-Si industrial TFT LCD display module equipped with a WLED backlight. It includes an LED backlight driver but does not feature touch functionality. G185HAN01.100 operates within a temperature range of -20 to 70°C and has a vibration resistance of 1.5G (14.7 m/s²). G185HAN01.100 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width:height), and uses a vertical RGB pixel arrangement. For backlight, AUO G185HAN01.100 uses a side (bottom) WLED light source with a lifespan of 50,000 hours. G185HAN01.100 features an LVDS (2-channel, 8-bit) signal interface with a total of 30 pins, connected via a connector, and a drive voltage of 5.0V (typ.). Its typical vertical refresh rate is 60 Hz. This 18.5-inch industrial LCD panel, G185HAN01.100, is widely applicable in industrial equipment and medical imaging devices. Please refer to the table below for key specifications of AUO G185HAN01.100.

	Size	18.5-inch	Backlight	WLED
	Brand	AUO	Interface	LVDS (2 ch, 8-bit)
	Model	G185HAN01.100	Brightness	500 cd/m²
	Resolution	1920×1080	Operating Temperature	-20 ~ 70 °C
	Visual Angle	89/89/89/89 (Typ.)	Production State	Out of Production

AUO G185HAN01.100 Key Features

1. AHVA Wide-Viewing-Angle Display Technology

G185HAN01.100 maintains consistent color across the LCD panel when viewed from full angles—up, down, left, and right—without color shift or loss of contrast, even at extreme viewing angles. It delivers deeper blacks and superior contrast in dark environments. Unlike standard TN panels, it ensures a consistent visual experience when viewed from multiple angles on workshop workstations, embedded devices, and outdoor cabinets.

2. FHD Full High-Definition Resolution

With a resolution of 1920×1080, G185HAN01.100 delivers crisp, detailed images, making it ideal for industrial human-machine interfaces and medical imaging, and providing clear text rendering for data-intensive applications.

3. High Contrast Ratio of 1000:1

Clear details in dark areas and no whiting in bright areas ensure text and icons remain visible in both brightly lit workshops and dimly lit server rooms. Reduces eye strain during prolonged viewing, enhancing operational efficiency.

4. Industrial-Standard LVDS Interface

The dual-channel LVDS (2 channels, 8-bit) interface with a 30-pin connector offers: stable long-distance signal transmission, strong anti-interference capabilities, and broad compatibility with industrial controllers, and embedded PCs.

5. Integrated LED Driver Board + 50,000-Hour Backlight Lifespan

The integrated driver board eliminates the need for an external driver power supply, simplifying the overall structure, reducing potential failure points, and minimizing installation space. The absence of an external driver design saves on BOM costs and PCB space. With an ultra-long backlight lifespan of 50,000 hours, it is durable enough for 24/7 continuous industrial operation.

6. Industrial-Grade Vibration Resistance

G185HAN01.100 features a vibration resistance rating of 1.5G (14.7 m/s²), making it suitable for vibration-prone environments such as machine tools, in-vehicle industrial control systems, assembly line equipment, and vibrating machinery. It is the top choice for outdoor mobile industrial equipment and in-vehicle displays, enhancing on-site stability.

7. 16.7M True Colors + 99% sRGB Wide Color Gamut

With 16.7 million true colors, G185HAN01.100 delivers precise color reproduction, meeting the demands of visual inspection, color calibration, medical industrial control, and smart vision applications. The wide color gamut ensures rich and lifelike colors, enabling accurate material identification, product appearance inspection, and high-definition visual monitoring.

AUO G185HAN01.100 combines wide viewing angles, high-definition image quality, high contrast, strong compatibility, long lifespan, and shock resistance—embodying all industrial attributes. It is suitable for industrial all-in-one computers, embedded industrial displays, equipment control panels, smart terminals, in-vehicle industrial displays, medical industrial control systems, and automated production lines. It operates reliably 24/7, withstands harsh industrial environments, reduces post-sales failure rates, and integrates seamlessly with the vast majority of industrial control systems. Detailed specifications of AUO G185HAN01.100 are in the following table.
