Lifespan ≥ 50k hours, Matte Surface, TCO'03 Compliance.

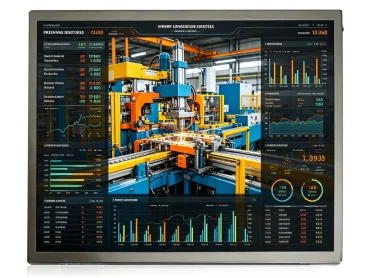

AUO G170EG01 V0 (also known as G170EG01 V.0) is a 17.0-inch a-Si industrial TFT-LCD display panel module. It features CCFL backlighting but do not have a backlight driver and touch functionality. G170EG01 V0 can operate from 0 to 50°C and has a vibration resistance of 1.5G (14.7 m/s²). It has a display resolution of 1280 (RGB) × 1024 (SXGA) with an aspect ratio of 5:4 (width:height), and the pixels are arranged in a vertical RGB strip pattern. For backlight, AUO G170EG01 V0 uses 4 pcs CCFL side light sources (top and bottom) with a lifespan of 50,000 hours. G170EG01 V0 uses an LVDS (2-channel, 8-bit) signal interface with a total of 30 pins, employing terminal connections, and a drive voltage of 5.0V (Typ.). It is more suitable for equipment operating in indoor normal temperature environments. Key parameters are shown in the below table.
17-inch
1. 5:4 Classic Industrial Aspect Ratio
The 5:4 aspect ratio has long been the standard for interfaces in industrial control systems, medical equipment, and legacy devices. This ensures seamless compatibility of G170EG01 V0 with existing software interfaces, eliminating the need for drastic scaling or cropping.
2. High Contrast Ratio (1000:1)
AUO G170EG01 V0 boasts a 1000:1 contrast ratio, resulting in clearer text, better image detail, and excellent visibility even in bright light. The matte surface treatment further enhances visibility by reducing unwanted reflections.
3. Ultra-Fast Response Speed (3.5/1.5 (Tr/Td) ms)
It features a top-tier fast response speed among industrial LCD panels, with extremely fast screen transitions and virtually no ghosting. Its dynamic display effect far surpasses that of ordinary industrial screens of the same size.
4. LVDS Interface for Industrial Compatibility
The dual-channel LVDS interface provides stable signal transmission and broad industrial controller compatibility, making it an excellent choice for industrial PCs and control systems.
Here are a table of basic parameters about AUO G170EG01 V0 for your check and reference.
Brand
AUO
Type
a-Si TFT-LCD, LCM
Model
G170EG01 V0
Surface Finish
Matte, Hard Coating (3H)
Size (inch)
17
Pixel Layout
RGB Vertical Strip
Outline Dimension
358.5(H)×296.5(V)×15.8(D) mm
Optical Mode
TN, Normally White Display, TM
Active Area
337.92(H)×270.336(V) mm
Backlight Type
4 pcs CCFL, 50K hours, without LED driver
Visual Area
341.6(W)×274.0(H) mm
Interface
LVDS (2 ch, 8-bit), 30 pins , FPC
Optimal Visual Angle
/
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Resolution
1280(RGB)×1024, SXGA, 5:4
Response Time
3.5/1.5 (Typ.)(Tr/Td) ms
Brightness (cd/m²)
380
Display Colors
16.7M, 72% NTSC
Contrast Ratio
1000 : 1 (Typ.) (TM)
Operating Temperature (°C )
0 ~ 50
Operating Voltage
5.0V (Typ.)
Storage Temperature (°C )
-20 ~ 60
Operating Frequency
60Hz
Touch Function
No
Power Consumption
22.2W (Typ.)
Weight
2.00Kgs (Typ.)
Application
Industrial Control
Production State
Out of Production
✅️ In Stock & Ready to Ship. Welcome to Get Detailed Quotation and Best Price. Noted: Stock is available. If the model is sold out, please check out its alternative models AUO G170EG01 V1 and G170EG01 V104.
AUO G170EG01 V0, with its fast response time, high contrast ratio of 1000:1, operating range of 0-50℃, and robust industrial construction, is suitable for the following industries and equipment:
a. Light Industrial Automation: Packaging machinery control panels, food processing equipment control panels, indoor HMIs, industrial control all-in-one machines for factory production lines, and other indoor ambient temperature workshops.
b. Medical Equipment: Waiting room queuing displays, routine instrument displays in medical examination centers, hospital information management terminals, waveform detectors, and medical dynamic imaging equipment, etc.
c. Indoor Commercial Self-Service Equipment: Ticket vending machines, information kiosks, ordering machines, government self-service machines, POS machines, advertising machines, and cash register display terminals, etc.
d. Security Monitoring Equipment: Security monitoring displays, access control displays, and control room console displays, etc.
