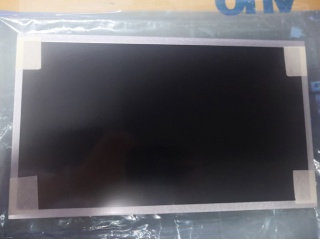

G156XTN01.0

Brand	AUO	Model P/N	G156XTN01.0
Diagonal Size	15.6"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)x768, WXGA 100PPI	Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)x193.536(H) mm	Bezel Opening	350.4(W)x196.94(H) mm
Outline (mm)	363.8x215.9x9.6 (HxVxD)	Treatment	Antiglare, Hard coating (3H),Reflection 4.3% (Typ.)
Luminance	400 cd/m² (Typ.)	Contrast Ratio	800: 1 (Typ.) (TM)
Viewing Angle	85/85/50/80 (Typ.)(CR≥10)	Response	10 (Typ.)(Tr+Td) ms
Good View at	6 o'clock	Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 62% NTSC	Backlight	WLED, 50K hours, With LED Driver
Mass	860g (Typ.)	Used for	industrial
Refresh Rate	60Hz	Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit) ,Connector 30 pins
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Te mp.: -30~85℃ Operating Temp.: -30~85℃
