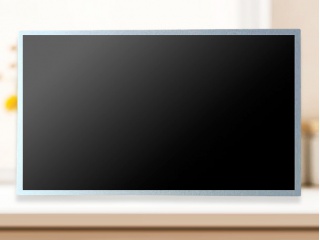

G156HCE-LN1

G156HCE-LN1

Download PDF Send Message

Basic Parameters

Panel Brand	Innolux	panel model	G156HCE-LN1
Panel size	15.6-inch	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	1920(RGB)x1080,FHD,141PPI	pixel layout	RGB vertical stripes
display area	344.16(W)x193.59(H) mm	Appearance size	363.8(W)x215.9(H)x9.8(D) mm
visible size	347.06(W)x196.49(H)	surface treatment	Hard coating (3H)
panel brightness	350 cd/m² (Typ.)	contrast	800:1(Typ.) (transmission)
visual Angle	89/89/89/89 (Typ.) (CR≥10)	work pattern	AAS, normally black display, transmissive
viewing direction	full-view	reaction time	14/11 (Typ.) (Tr/Td) ms
display color	16.7M,73% NTSC	Lamp Type	WLED,50K hours with LED driver
working frequency	60Hz	touch screen	touchless
weight	1.06/1.10Kgs (Typ./ Max.)	panel application	Industrial games
signal interface	LVDS (2 ch,8-bit), 40 pins, terminals
driving voltage	3.3V (Typ.)
work environment	Operating temperature: -20 ° C ~ 70 ° C; Storage temperature: -30 ° C ~ 70 ° C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P1560FHF1MB00	15.6"	1920×1080	400 nits	1000:1	WLED	LVDS	30	-20~70 °C
Tianma	P1560FHF2MA00	15.6"	1920×1080	1000 nits	1500:1	WLED	LVDS	30	-30~80 ° C
Tianma	P1560FHF2MB00	15.6"	1920×1080	350 nits	2000:1	WLED	LVDS	40	-10~60 ° C
Tianma	P1560FHF3MB00	15.6"	1920×1080	500 nits	1500:1	WLED	eDP	40	-10~70 ° C
AUO	G156HAN05.0	15.6"	1920×1080	500 nits	1000:1	WLED	eDP	30	-10~60°C
AUO	G156XTN02.0	15.6"	1366×768	220 nits	400:1	WLED	eDP	30	0~50℃
AUO	G156HAN04.0	15.6"	1920×1080	1000 nits	1000:1	WLED	LVDS	30	-30~85℃
AUO	G156HAN03.0	15.6"	1920×1080	300 nits	1000:1	WLED	eDP	30	0~50℃
AUO	G156HAN05.1	15.6"	1920×1080	300 nits	800:1	WLED	eDP	30	0~50°C
AUO	G156HAN02.3	15.6"	1920×1080	500 nits	1000:1	WLED	LVDS	30	-10~65℃
