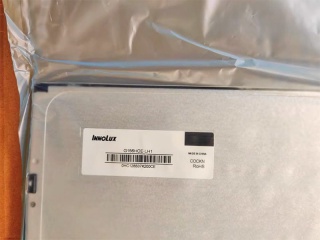

G156HCE-LH1

G156HCE-LH1

Download PDF Send Message

Basic Parameters

Panel Brand	Innolux	panel model	G156HCE-LH1
Panel size	15.6-inch	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	1920(RGB)x1080,FHD,141PPI	pixel layout	RGB vertical stripes
display area	344.16(W)x193.59(H) mm	Appearance size	363.8(W)x215.9(H)x12.5(D) mm
open area	347.06(W)x196.49(H) mm	surface treatment	Hard coating(3H)
display brightness	1200 cd/m² (Typ.)	contrast	800:1(Typ.) (transmission)
recommended angle of view	full-view	response time	14/11 (Typ.) (Tr/Td) ms
visual Angle	89/89/89/89 (Typ.) (CR≥10)	display mode	AAS, normally black display, transmissive
support color	16.7M,73% NTSC	light source type	WLED,50K hours with LED driver
weight	815±41g	application products	Industrial outdoor highlight game
frame frequency	60Hz	touch technology	touchless
interface type	LVDS (2 ch,8-bit), Terminals
voltage supply	3.3V (Typ.)
application environment	Operating temperature: -30~80 °C; Storage temperature: -40~90 °C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P1560FHF1MB00	15.6"	1920×1080	400 nits	1000:1	WLED	LVDS	30	-20~70 °C
Tianma	P1560FHF2MB00	15.6"	1920×1080	350 nits	2000:1	WLED	LVDS	40	-10~60 ° C
Tianma	P1560FHF2MA00	15.6"	1920×1080	1000 nits	1500:1	WLED	LVDS	30	-30~80 ° C
Tianma	P1560FHF3MB00	15.6"	1920×1080	500 nits	1500:1	WLED	eDP	40	-10~70 ° C
Innolux	G156HCE-L01	15.6"	1920×1080	450 nits	800:1	WLED	LVDS	40	-30~85 ° C
Innolux	G156HCE-E01	15.6"	1920×1080	450 nits	1000:1	WLED	eDP	40	0~60℃
Innolux	N156HCE-EN1	15.6"	1920×1080	300 nits	700:1	WLED	eDP	30	0~50° C
Innolux	G156HCE-LH1	15.6"	1920×1080	1200 nits	800:1	WLED	LVDS	40	-30~80 °C
Innolux	G156HCE-P01	15.6"	1920×1080		800:1	No Backlight	LVDS	40	-30~85 °C
Innolux	G156HCE-LN1	15.6"	1920×1080	350 nits	800:1	WLED	LVDS	40	-20~70 ° C
