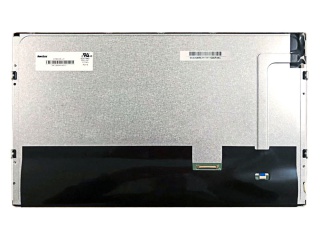

G156HCE-L01

G156HCE-L01

Download PDF Send Message

Basic Parameters

Panel Brand	Innolux	panel model	G156HCE-L01
Panel size	15.6-inch	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	1920(RGB)x1080, FHD, 141PPI	pixel layout	RGB vertical stripes
display area	344.16(W)x193.59(H) mm	Appearance size	363.8(W)x215.98(H)x9.6(D) mm
open area	347.06(W)x196.49(H) mm	surface treatment	Hard coating (3H)
display brightness	450 cd/m² (Typ.)	contrast	800:1(Typ.) (transmission)
recommended angle of view	full-view	response time	13/12 (Typ.) (Tr/Td) ms
visual Angle	85/85/85/85 (Typ.) (CR≥10)	display mode	AAS, normally black display, transmissive
support color	16.2M,73% NTSC	light source type	WLED,50K hours with LED driver
weight	1.06/1.10Kgs (Typ./ Max.)	application products	industrial engineering
frame frequency	60Hz	touch technology	touchless
interface type	LVDS(2 ch,8-bit), Terminals
voltage supply	3.3V (Typ.)
application environment	Operating temperature: -30 °C to 85 ° C; Storage temperature:-40 °C to 90 ° C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P1560FHF1MB00	15.6"	1920×1080	400 nits	1000:1	WLED	LVDS	30	-20~70 °C
Tianma	P1560FHF2MB00	15.6"	1920×1080	350 nits	2000:1	WLED	LVDS	40	-10~60 ° C
Tianma	P1560FHF2MA00	15.6"	1920×1080	1000 nits	1500:1	WLED	LVDS	30	-30~80 ° C
Tianma	P1560FHF3MB00	15.6"	1920×1080	500 nits	1500:1	WLED	eDP	40	-10~70 ° C
Innolux	G156HCE-P01	15.6"	1920×1080		800:1	No Backlight	LVDS	40	-30~85 °C
Innolux	G156HCE-LN1	15.6"	1920×1080	350 nits	800:1	WLED	LVDS	40	-20~70 ° C
Innolux	G156HCE-L01	15.6"	1920×1080	450 nits	800:1	WLED	LVDS	40	-30~85 ° C
Innolux	G156HCE-E01	15.6"	1920×1080	450 nits	1000:1	WLED	eDP	40	0~60℃
Innolux	N156HCE-EN1	15.6"	1920×1080	300 nits	700:1	WLED	eDP	30	0~50° C
Innolux	G156HCE-LH1	15.6"	1920×1080	1200 nits	800:1	WLED	LVDS	40	-30~80 °C
