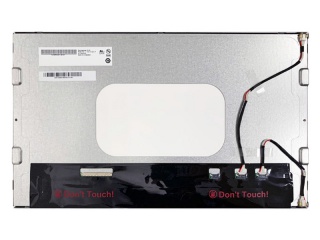

G156HAN05.0

Brand	AUO	Model P/N	G156HAN05.0
Diagonal Size	15.6"	Panel Type	a-Si TFT-LCD,LCM
Resolution	1920(RGB)x1080, FHD 141PPI	Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)x193.59(H) mm	Bezel Opening
Outline Size	351.84(W)x208.88(H) x6.5(D) mm	Surface	Hard coating (3H)
Brightness	500 cd/m² (Typ.)	Contrast Ratio	1000:1(Typ.)(TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	AHVA, Normally Black, Transmissive
Best View on	Symmetry	Response Time	25 (Typ.)(Tr+Td)
Display Colors	16.2M 100% sRGB	Lamp Type	WLED,50K hours, With LED Driver
Frequency	60Hz	Touch Screen	Without
Weight	580g (Max.)	Application	industrial healthcare
Signal Interface	eDP (2 Lanes),eDP1.2,30 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.:-10~60°C;Storage Temp.:-20~70°C
