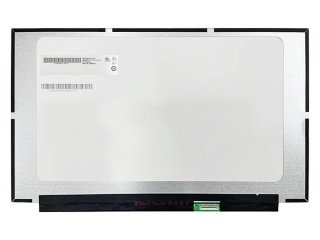

G156HAN03.0

Brand	AUO	Model P/N	G156HAN03.0
Diagonal Size	15.6"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)x1080, FHD 141PPI	Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)x193.59(H) mm	Bezel Opening
Outline (mm)	350.66x216.15x3.2 (HxVxD)	Treatment	Antiglare, Hard coating (3H)
Luminance	300 cd/m² (Typ.)	Contrast Ratio	1000:1(Typ.)(TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry	Work Mode	AHVA, Normally Black, Transmissive
Color Depth	16.2M 45% NTSC	Backlight	WLED , 30K hours , With LED Driver
Mass	370g (Max.)	Used for	industrial healthcare
Refresh Rate	60Hz	Touchscreen	Without
Signal Type	eDP(2 Lanes), eDP1.2,Connector 30 pins
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.:-20~60℃;Operating Temp.:0~50℃
