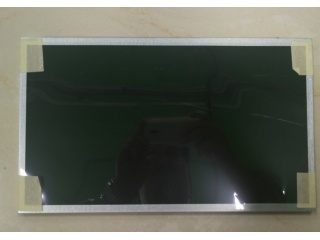

G156HAN02.0

G156HAN02.0

Download PDF Send Message

Basic Parameters

Brand	AUO		Model P/N	G156HAN02.0
Diagonal Size	15.6"		Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)x1080, FHD 141PPI		Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)x193.59(H) mm		Bezel Opening	347.06(W)x196.49(H) mm
Outline Dim.	363.8(H)x215.9(V) x9.3(D)mm		Treatment	Antiglare, Hard coating (3H)
Luminance	500 cd/m² (Typ.)		Contrast Ratio	1000:1(Typ.) (TM)
View Direction	Symmetry		Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)		Operating Mode	AHVA, Normally Black, Transmissive
Support Color	16.2M 99% sRGB		Light Source	WLED,50K hours, With LED Driver
Weight	600/660g (Typ./Max.)		Designed For	industrial ,healthcare
Frame Rate	60Hz		Touch Panel	Without
Interface Type	eDP (2 Lanes),30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature:-20~70°C;Storage Temperature:-20~70°C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P1560FHF2MA00	15.6"	1920×1080	1000 nits	1500:1	WLED	LVDS	30	-30~80 ° C
Tianma	P1560FHF3MB00	15.6"	1920×1080	500 nits	1500:1	WLED	eDP	40	-10~70 ° C
Tianma	P1560FHF1MB00	15.6"	1920×1080	400 nits	1000:1	WLED	LVDS	30	-20~70 °C
Tianma	P1560FHF2MB00	15.6"	1920×1080	350 nits	2000:1	WLED	LVDS	40	-10~60 ° C
Innolux	G156HCE-E01	15.6"	1920×1080	450 nits	1000:1	WLED	eDP	40	0~60℃
Innolux	G156HCE-P01	15.6"	1920×1080		800:1	No Backlight	LVDS	40	-30~85 °C
Innolux	G156HCE-L01	15.6"	1920×1080	450 nits	800:1	WLED	LVDS	40	-30~85 ° C
Innolux	G156HCE-LH1	15.6"	1920×1080	1200 nits	800:1	WLED	LVDS	40	-30~80 °C
Innolux	N156HCE-EN1	15.6"	1920×1080	300 nits	700:1	WLED	eDP	30	0~50° C
Innolux	G156HCE-LN1	15.6"	1920×1080	350 nits	800:1	WLED	LVDS	40	-20~70 ° C
