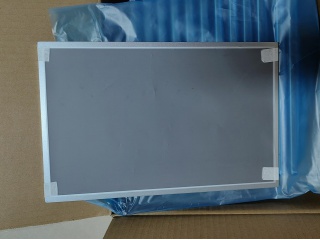

G154ICE-LH1

G154ICE-LH1

Download PDF Send Message

Basic Parameters

Panel Brand	Innolux	panel model	G154ICE-LH1
Panel size	15.4-inch	panel type	a-SiTFT-LCD, LCD Module
resolution ratio	1280(RGB)x800, WXGA,98PPI	pixel layout	RGB vertical stripes
display area	331.2(W)x207(H) mm	Appearance size	352(W)x230(H)x10(D) mm
viewable area	334.5(W)x210.3(H) mm	surface treatment	Hard coating (3H)
panel brightness	450 cd/m² (Typ.)	contrast	1000:1 (Typ.) (TM)
visual Angle	89/89/89/89 (Typ.) (CR≥10)	work pattern	AAS, normally black display, transmissive
viewing direction	full-view	reaction time	13/12 (Typ.) (Tr/Td) ms
display color	262K/16.7M ,72% NTSC	light source type	WLED,50K hours with LED driver
working frequency	60Hz	touch screen	touchless
Panel Weight	771/809g (Typ./ Max.)	panel application	industrial engineering
signal interface	LVDS (1 ch,8-bit), 30 pins, terminals
driving voltage	3.3V (Typ.)
work environment	Working temperature: -30 °C to 80 ° C; Storage temperature: -30 °C to 80 ° C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P1560FHF2MB00	15.6"	1920×1080	350 nits	2000:1	WLED	LVDS	40	-10~60 ° C
Tianma	P1560FHF1MB00	15.6"	1920×1080	400 nits	1000:1	WLED	LVDS	30	-20~70 °C
Tianma	P1560FHF2MA00	15.6"	1920×1080	1000 nits	1500:1	WLED	LVDS	30	-30~80 ° C
Tianma	P1560FHF3MB00	15.6"	1920×1080	500 nits	1500:1	WLED	eDP	40	-10~70 ° C
Tianma	P1500XGF1MB02	15"	1024×768	600 nits	1000:1	WLED	LVDS		-20 ~70 ° C
Tianma	P1500XGF2MB10	15"	1024×768	500 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1500XGF1MB01	15"	1024×768	400 nits	1500:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1500XGF2MA00	15"	1024×768	1500 nits	1000:1	WLED	LVDS	20	-20~70 ° C
Innolux	G154ICE-LH2	15.4"	1280×800	1000 nits	1000:1	WLED	LVDS	30	-30~80 ° C
Innolux	G154ICE-LH1	15.4"	1280×800	450 nits	1000:1	WLED	LVDS	30	-30~80 ° C
