G150XTN06.B

G150XTN06.B

Wide Temperature Operation, 800 nits High Brightness,White LED Backlight, 50,000+ Hours Lifespan, Integrated LED Driver, Front-Mount Terminals, Selectable 6/8-Bit Grayscale.

Download PDF Send Message

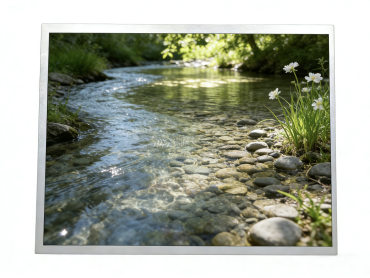

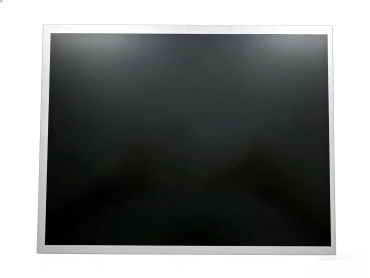

Original Industrial TFT LCD Display AUO G150XTN06.B

AUO G150XTN06.B is a 15-inch industrial-grade TFT LCD display module, specifically designed for devices that need to operate stably for long periods in outdoor strong light conditions. It features XGA (1024×768) resolution and supports a wide temperature range of -30°C to 70°C. It is suitable for outdoor terminals, charging stations, intelligent transportation equipment, and various industrial control systems in strong light environments. Unlike ordinary industrial LCD panels, the core advantage of G150XTN06.8 lies in its 800 nits high brightness and anti-reflection treatment. It solves the most common pain points of outdoor equipment: the screen becomes illegible under direct sunlight. Combined with a 3H hardness anti-reflection coating, the display content remains clearly visible even in the midday sunlight or in strong light workshops. For OEM manufacturers and system integrators, the most important value of this display is not only high brightness display, but also long-term reliability under extreme lighting and temperature conditions. With a 50,000-hour LED backlight lifespan, built-in LED driver, and terminal positive connection design, your equipment operates more stably on-site and maintenance is simpler.




AUO G150XTN06.B Basic Parameters

Brand AUO Model  G150XTN06.B
Diagonal Size 15.0 inch Panel  Type a-Si TFT-LCD,LCM
Resolution 1024(RGB)x768, XGA 85PPI Pixel Format RGB Vertical Stripe
Active Area 304.128(W)x228.096(H) mm Visual Size 311.9(W)x236.85(H) mm
Outline Dimmension 326.5(W)x253.5(H)x10(D) mm Surface Treatment Hard coating(3H),Antireflection
Brightness 800 cd/m²(Typ.) Contrast Ratio 800:1(Typ.)(TM)
Optimal Visual Angle Direction --- Response Time 5.7/2.3(Typ.)(Tr/Td)
Viewing Angle 80/80/70/80(Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Display Colors 262K/16.2M, 60% NTSC Backlight WLED,50K hours, With LED Driver
Weight 1.00Kgs(Max.) Application Industrial Control/ Outdoor High Brightness
Frame Frequency 60Hz Touch Function No touch function
Interface LVDS (1 ch,6/8-bit), 20 pins, Connector
Power Supply 3.3V (Typ.)
Environment Temperature Operating Temperature:-30~70℃; Storage Temperature: -30~80℃

AUO G150XTN06.B Optical Details

Basic Information

Brightness (cd/m2)

800

Contrast Ratio

800:1 (Transmission)

Viewing Angle

80/80/70/80 (Typ.)(CR≥10)

Optical Mode

TN, Normally White, Transmissive

Viewing Direction

---

Response Time

5.7/2.3 (Typ.)(Tr/Td) (ms)

Color Performance

Chromaticity

Wx:0.313; Wy:0.329

Color Numbers

262K/16.2M ( 6-bit /6-bit+FRC)

Color Temperature

6485K

Uniformity

1.25/1.33 (Typ./Max.)(9 points)

1931 Color Gamut

NTSC Ratio

60%

sRGB

84%

Adobe RGB

63%

DCI-P3

63%

REC.2020

45%

REmarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G150XTN06.B Interface Details

Signal Electrical

Current Input

1.0/1.2A (Typ./Max.)

Voltage Input

3.3V (Typ.)

Consumption

3.3/3.96W (Typ./Max.)

Signal System

LVDS (1 ch, 6/8-bit)

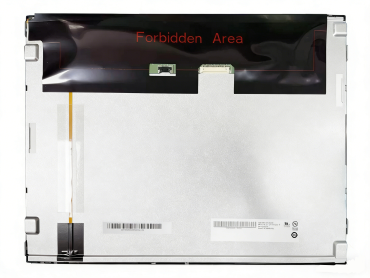

Interface Features

Position

back

Type

Connector

Connector Detail

Brand

Model

Amount

Pin Pitch

Pins

STM

MSB240420HD

1pcs

1.25 mm

20 pins

AUO G150XTN06.B Matching LCD Controller Board

12

♦ Model HXD-H58, HDMI+DC12V input, LVDS output, operating temperature-20 to 70, support maximum resolution of 1920*1080

♦ Model YT-VDH58 V1.1 HDMI +DC12V input, LVDS output, operating temperature-40 to 70, supports maximum resolution of 1920*1200

♦ Model HXD-VDH 58L V1.1 HDMI +DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200

♦ Model HXD-V1680 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200

♦ Model HXD-HP58UWV V1.1 HDMI+DC12V input, LVDS output, support audio amplifier: 2 x 10W, support maximum resolution 1920*1200

♦ Model HXD-VD68 V1.1 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200

◊ The supporting LCD driver board adopts stable industrial scheme. All devices meet industrial standards. LCD driver board has been strictly tested and demonstrated. The recommended LCD driver board is matched according to the parameters of the LCD panels.

◊ It expands the application of LCD panels. Detailed parameters of LCD driver board are described in detail on other pages.
