Wide temperature, ultra-high brightness, white LED backlight, lifespan over 50,000 hours, with LED driver, 180-degree flip display, 6/8-bit grayscale optional, matte surface

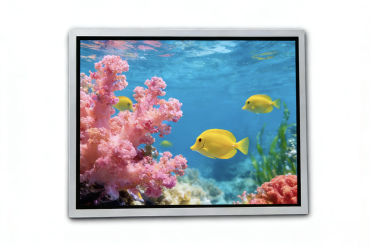

Innolux G150XJE-LM1 is a 15-inch NPVA industrial LCD tft displays, featuring high outdoor brightness and wide temperature stability. With a high brightness of 1800cd/㎡, it is suitable for outdoor strong light scenarios. It is equipped with a high contrast ratio of 2500:1 and full viewing angle display. It also supports wide temperature operation from -30℃ to 70℃. It can be widely applied in industrial control terminals, outdoor high-brightness devices, and game and video display, providing a highly reliable display solution for multiple scenarios.
Brand
Innolux
Type
a-Si TFT-LCD
Model
G150XJE-LM1
Surface Finish
Matte Surface, Hard Coating (3H)
Size (inch)
15
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
326.5(W)×253.5(H)×13.75(D)
Optical Mode
NPVA
Active Area (WxH mm)
304.128(W)x228.096(H)
Backlight Type
WLED, 50K hours
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Interface
LVDS (1 ch, 6/8-bit) , 20 pins
Resolution
1024(RGB)×768,XGA,85PPI
Response Time
16/7 (Typ.) (Tr+Td) ms
Brightness (cd/m²)
1800
Dispay Colors
16.2M,50% NTSC
Contrast Ratio
2500:1
Operating Temperature (°C )
-30~ 70
Operating Voltage
3.3V (Typ.)
Storage Temperature (°C )
-30~70
Operating Frequency
60Hz
Weight
880g
Application
Industrial Control/Outdoor Highlight Use/Game Images
HXD is a professional manufacturer that has been deeply involved in the LCD tft display industry for 12 years. We focuse on providing you with high-quality LCD display solutions and related services. At the core product level, we provide global high-end brands such as AUO, BOE, IVO, CHEIMEI, Innolux, and Sharp to meet the LCD display requirements in different scenarios. We also have our own independent R&D production capacity and can provide supporting accessories such as driver boards, cables, and touch screens that are compatible with LCD screens, achieving "LCD panel + accessories" one-stop supply, eliminating the complexity of multiple channel procurement for customers. With 12 years of accumulated professional technology and experience, HXD not only provides standardized products but also supports OEM & ODM customization services, precisely matching your individualized needs. The service also offers free quotations and free technical document support, providing efficient and high-quality services from demand connection, scheme design to after-sales guarantee, and is committed to becoming a trusted LCD display solution partner for you.
FAQ 1. Q: Can the LCD tft display 1800cd/㎡ brightness be clearly seen in outdoor sunlight? A: Yes, with the matte surface treatment, it can effectively reduce reflections and still display the content clearly in outdoor strong light conditions.
2. Q: Does you support touch functionality? A: The basic model does not have touch functionality. Customized capacitive/resistive touch modules can be provided upon request, with a sample production cycle of approximately 5 days.
3. Q: Does 50,000 hours of backlight lifespan refer to the continuous working duration? A: Yes, it meets the long-term usage requirements.
4. Q: Can sample testing be provided? A: One sample can be provided. The testing period is 7 days, and test guidance documents can be provided.
5. Q: Can export certifications be provided for overseas customers? A: Yes, export certification reports such as CE and RoHS can be provided upon request, and assistance can be given to customers for customs clearance.
