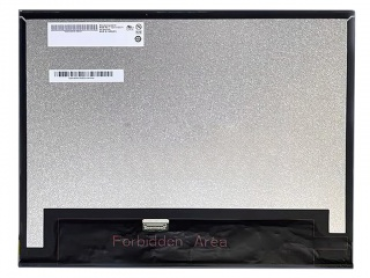

G150XAN03.0

WLED backlight, lifespan than 50,000 hours, includes LED driver, flip-chip mounting, and matte surface finish.

TFT LCD Panel AUO G150XAN03.0 Product Description

AUO G150XAN03.0 is a 15.0-inch a-Si TFT industrial LCD display module utilizing eDP interface. For engineers designing next-generation compact smart devices and seeking system integration and future compatibility, this LCD panel represents not just a screen upgrade, but a crucial step in optimizing the overall system architecture. It enables thinner and more reliable system integration: thanks to the efficient transmission architecture of the eDP interface and the ultra-thin module thickness of only 6.8mm, it allows you to design lighter and thinner device casings, or accommodate larger capacity batteries and other key components within a limited space. At the same time, the eDP interface offers stronger anti-interference capabilities compared to traditional LVDS, improving the display stability of the entire device in complex electromagnetic environments. The combination of 400 nits brightness and a 1000:1 contrast ratio, precisely calibrated, is optimized for typical indoor controlled lighting environments. Coupled with a 3H hardness matte anti-glare treatment, it effectively eliminates reflections from lights and windows, providing operators with a comfortable, eye-friendly viewing experience throughout the day, especially suitable for monitoring and interactive scenarios requiring prolonged screen focus.

Basic Parameter

Brand	AUO	Model Panel	G150XAN03.0
Diagonal Size	15.0 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)x768, XGA 85PPI	Pixel Format	RGB Vertical Stripe
Active Area	304.128(W)x228.096(H)mm	Display Area	---
Outline Dimmension	314.13(W)x245.3(H)x6.8(D)mm	Surface Treatment	Matte,Hard coating(3H)
Brightness	400 cd/m² (Typ.)	Contrast Ratio	1000:1(Typ.)(TM)
Optimal Visual Angle	Full-view	Response Time	25(Typ.)(Tr+Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	AHVA, Normally Black, Transmissive
Display Colors	16.2M 60% NTSC	Backlight	WLED,50K hours,With LED Driver
Weight	920g (Max.)	Application	Industrial Control
Frame Rate	60Hz	Touch Function	No touch function
Interface Type	eDP(1 Lane) 30 pins Connector
Power Supply	3.3V (Typ.)
Environment Temperature	Operating Temperature:-20~70℃;Storage Temperature:-20~70℃

AUO G150XAN03.0 Matching LCD Controller Board

♦ Model HXD-H58, HDMI+DC12V input, LVDS output, operating temperature-20 to 70, support maximum resolution of 1920*1080

♦ Model YT-VDH58 V1.1 HDMI +DC12V input, LVDS output, operating temperature-40 to 70, supports maximum resolution of 1920*1200

♦ Model HXD-VDH 58L V1.1 HDMI +DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200

♦ Model HXD-V1680 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200

♦ Model HXD-HP58UWV V1.1 HDMI+DC12V input, LVDS output, support audio amplifier: 2 x 10W, support maximum resolution 1920*1200

♦ Model HXD-VD68 V1.1 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200

◊ The supporting LCD driver board adopts stable industrial scheme. All devices meet industrial standards. LCD driver board has been strictly tested and demonstrated. The recommended LCD driver board is matched according to the parameters of the LCD panels.

◊ It expands the application of LCD panels. Detailed parameters of LCD driver board are described in detail on other pages.

Why Partner with HXD for LCD TFT Displays?

Zhengzhou Hengxinda Technology Co., Ltd is a profeesional LCD TFT display supplier from China, mainly providing brands sunch as AUO/BOE/IVO/Sharp/Innolux etc. We can offer the following service:

1. Customized Adaptation Services: We support customized adaptation of LCD screens in various sizes and models. From measurement to production, we provide one-on-one follow-up to ensure the glass cover perfectly fits the screen without affecting the original structure of the equipment.

2. Rigorous Quality Inspection: Every glass cover undergoes multiple tests for impact resistance, light transmittance, temperature tolerance, and more, meeting industrial-grade standards to ensure flawless products delivered to our customers.

3. Comprehensive After-Sales Support: Products come with a 12-month warranty. In case of non-human-caused issues such as glass breakage or detachment, we provide free replacement services.

4. "One-Stop Shopping" Experience: In addition to LCD TFT displays, we also supply a full range of related accessories, including LCD controller boards, LCD touch screens, light sensors, and compatible cables. You can also opt for touch screen bonding services or glass bonding services, enabling us to deliver an integrated display solution—from the screen to its peripheral components.

5. Reliable Logistics Shipping: We support various shipping methods, including air, sea, and land freight, and can flexibly adjust to your delivery timeline requirements. Standard LCD TFT panels products are shipped within 48 hours to 7 days, while customized products are delivered within 7 to 20 days.

FAQs:

1. Do you support free samples?

A: No, samples must be purchased at the retail price. When purchasing in bulk, the sample cost can be fully deducted from the corresponding payment. The sample delivery cycle is 1-2 working days.

2. How long is the cycle for customized complementary services (such as touch screen + bonding)?

A: If you choose the standard configuration of touch screen + bonding service, the order cycle is 7-10 working days; if you need a touch screen with customized special touch parameters, the cycle is 10-21 working days.

3. Is parameter customization supported?

A: Parameters such as interface type, brightness, and surface treatment can be customized. Customization requirements must meet a minimum order quantity of 500 units. Specific details can be discussed with us.

4. What is the after-sales guarantee for this product?

A: Provide 12 months full machine warranty (including screen and supporting driver board). Non-human damage (such as panel failure, backlight not working) can enjoy free repair / replacement services; beyond the warranty period, provide lifetime cost-price maintenance services.

5. Is there a price discount for bulk purchases?

A: Bulk purchases (≥100 units) can enjoy a stepped price discount. The larger the purchase volume, the higher the discount. Specific quotations can be provided by contacting us.

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
AUO	G150XTN06.4	15"	1024×768	400 nits	800:1	WLED	LVDS	20	-30~85℃
AUO	G150XTN01.0	15"	1024×768	350 nits	700:1	WLED	LVDS	20	-30~85℃
Tianma	P1500XGF2MA00	15"	1024×768	1500 nits	1000:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1500XGF1MB02	15"	1024×768	600 nits	1000:1	WLED	LVDS		-20 ~70 ° C
Tianma	P1500XGF1MB01	15"	1024×768	400 nits	1500:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1500XGF2MB10	15"	1024×768	500 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1560FHF2MA00	15.6"	1920×1080	1000 nits	1500:1	WLED	LVDS	30	-30~80 ° C
Tianma	P1560FHF3MB00	15.6"	1920×1080	500 nits	1500:1	WLED	eDP	40	-10~70 ° C
Tianma	P1560FHF1MB00	15.6"	1920×1080	400 nits	1000:1	WLED	LVDS	30	-20~70 °C
Tianma	P1560FHF2MB00	15.6"	1920×1080	350 nits	2000:1	WLED	LVDS	40	-10~60 ° C
Innolux	G156HCE-LN1	15.6"	1920×1080	350 nits	800:1	WLED	LVDS	40	-20~70 ° C
Innolux	N156HCE-EN1	15.6"	1920×1080	300 nits	700:1	WLED	eDP	30	0~50° C
Innolux	G156HCE-E01	15.6"	1920×1080	450 nits	1000:1	WLED	eDP	40	0~60℃
Innolux	G154ICE-LH2	15.4"	1280×800	1000 nits	1000:1	WLED	LVDS	30	-30~80 ° C
Innolux	G154ICE-LH1	15.4"	1280×800	450 nits	1000:1	WLED	LVDS	30	-30~80 ° C
