G150XAN02.1

G150XAN02.1

800 cd/mhigh brightness, WLED backlight, lifespan ≥ 50 K hours, with LED driver, matte surface.

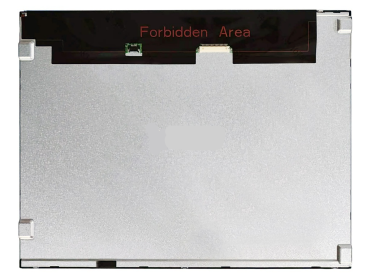

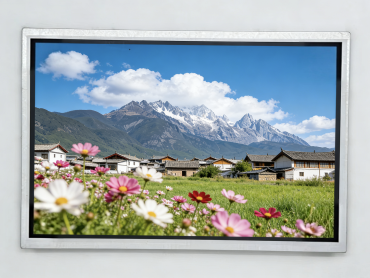

AUO G150XAN02.1 Industrial TFT LCD Display


AUO G150XAN02.1 is a 15.0-inch a-Si TFT LCD display module designed for industrial and commercial applications that demand long-term stability, cost-effectiveness, and broad compatibility. Its core value lies in the following three aspects:
1. Ensuring long-term operational stability for equipment: It supports a wide operating temperature range of -20℃ to 75℃ and an ultra-long backlight lifespan of 50,000 hours. When your equipment faces seasonal temperature changes or requires continuous 24/7 operation, this LCD panel effectively reduces the risk and cost of downtime and maintenance caused by screen failure.
2. Simplifying the integration process for engineers: The standard 20-pin LVDS interface, clear electrical specifications, and complete module form significantly reduce the complexity of driver design and hardware debugging.
3. Providing clear visuals in high-brightness environments: The typical high brightness of 800 nits, combined with a matte hard-coated (3H) surface treatment, effectively suppresses common ambient light reflections and glare in indoor environments.



Basic Parameters


Panel Brand AUO Panel Model G150XAN02.1
Panel Size 15.0 inch Panel Type a-Si TFT-LCD,LCD Module
Resolution 1024(RGB)×768, XGA, 85PPI Pixel Layout RGB vertical stripes
Display Area 304.128(W)×228.096(H) mm Appearance Size 326.5(W)×253.5(H)×9(D) mm
Brightness(cd/m²) 800 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (transmission)
Visual Angle 89/89/89/89 (Typ.) (CR≥10)  Surface Treatment Hardcoating (3H)
Display Colors 16.2M , 60% NTSC Optical Mode AHVA, normally black display, transmissive
Panel Weight 920g (Max.) Response Time 25 (Typ.) (Tr+Td) ms
Optimal Visual Angle full-view Backlight WLED , 50K hours, with LED driver
Frame Frequency 60Hz   Application Industrial Control
Signal Interface 20 pins, LVDS (1 ch, 8-bit) , Connectors Touch Function No touch function
Driving Voltage 3.3V (Typ.)
Environment Temperature Operating Temperature: -20 ~75 °C ; Storage Temperature: -20 ~75 °C

AUO G150XAN02.1 Matching LCD Controller Board


12

♦ Model HXD-H58, HDMI+DC12V input, LVDS output, operating temperature-20 to 70, support maximum resolution of 1920*1080

♦ Model YT-VDH58 V1.1 HDMI +DC12V input, LVDS output, operating temperature-40 to 70, supports maximum resolution of 1920*1200

♦ Model HXD-VDH 58L V1.1 HDMI +DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200

♦ Model HXD-V1680 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200

♦ Model HXD-HP58UWV V1.1 HDMI+DC12V input, LVDS output, support audio amplifier: 2 x 10W, support maximum resolution 1920*1200

♦ Model HXD-VD68 V1.1 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200

◊ The supporting LCD driver board adopts stable industrial scheme. All devices meet industrial standards. LCD driver board has been strictly tested and demonstrated. The recommended LCD driver board is matched according to the parameters of the LCD panels.

◊ It expands the application of LCD panels. Detailed parameters of LCD driver board are described in detail on other pages.

Why Partner with HXD for LCD TFT Displays?

  • Industrial Control and Automation
    Industrial Control and Automation

    Product: Medium-sized CNC machine tool control panels, packaging machine human-machine interfaces, production line status monitoring screens, test and measurement instrument displays etc. Pain points: High equipment value requires stable displays to avoid production interruptions; complex workshop lighting requires anti-glare features. Value: Provides a stable and reliable interactive interface, ensuring production continuity; matte screen ensures critical parameters are clearly readable under various lighting conditions.

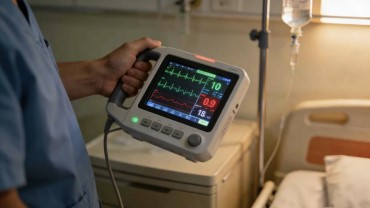

  • Specialized Equipment and Display Systems
    Specialized Equipment and Display Systems

    Products: Medical monitoring equipment (non-diagnostic), laboratory analysis instruments, conference room reservation panels, security and building control consoles etc. . Pain points: High degree of specialization of the equipment, requiring long-term stable display compatibility with the system; fixed installation location requiring clear viewing from multiple angles. Value: Standard interfaces facilitate integration into specialized systems; wide viewing angle allows multiple users to view information simultaneously.

  • Transportation
    Transportation

    In-vehicle information displays for passenger buses, logistics vehicle dispatch terminals, control panels for special vehicles (such as RVs and sanitation vehicles) etc.. Pain points: The vehicle interior environment experiences vibration and temperature fluctuations; displayed information needs to be visible from multiple angles for both drivers and passengers. Value: Wide temperature range and vibration-resistant design adapt to the in-vehicle environment; wide viewing angle ensures that information is clearly visible from different seats in the vehicle.

As a TFT LCD display module supplier with 13 years of expertise, Zhengzhou Hengxinda Technology Co., Ltd has provided high-quality LCD panels to thousands of customers across diverse industries. For these industrial-grade TFT LCD displays, we offer a full suite of supporting services: we not only supply compatible core components such as touch screens and LCD control boards, but also provide all the small parts required for installation, enabling a one-stop shopping "LCD panels + relevant components + custom services". With our in-depth understanding of the application needs of different industries, we can accurately meet customer requirements, facilitating smooth integration while saving both time and costs.
Whether you are looking for stable supply, reliable quality, or comprehensive supporting services, these cost-effective industrial LCD panels are the perfect fit. HXD is committed to advancing your industrial projects successfully with our professional services and complete supporting solutions.



FAQs:
1. Does G150XAN02.1  support touch functionality?
A: G150XAN02.1  is a non-touch design. If you need touch functionality, we can provide a corresponding capacitive/resistive/infrared touch screen solution, supporting one-stop integration services.
2. Does the signal interface of G150XAN02.1  support other interfaces?
A: The standard configuration is LVDS (1 ch, 8-bit). If you need HDMI, DP, etc. other interfaces, we can provide customized adapter board services to meet your device compatibility requirements.
3. How long is the delivery cycle for bulk orders?
A: The inventory of different models varies. The delivery cycle for regular bulk orders is 3-15 working days. For details, please contact us.
4. What is the warranty period of G150XAN02.1 ?
A: We offer a 12-month warranty. During the warranty period, if there are quality issues that are not caused by human error, you can enjoy free repair or replacement services.
5. Can you provide customized services for the LCD panel?
A: Yes. We support personalized requirements such as brightness adjustment, interface customization, and special optical processing. You can submit specific requirements, and our technical team will provide a customized solution within 3 working days.
6. Do you have a matching driver board or complete machine design solution?
A: Yes. We have a professional hardware R&D team that can provide a complete set of design solutions from driver boards to the overall machine structure, helping you quickly complete product development and mass production.
