Wide temperature range, WLED backlighting, with a lifespan exceeding 50,000 hours, including LED driver, matte surface.

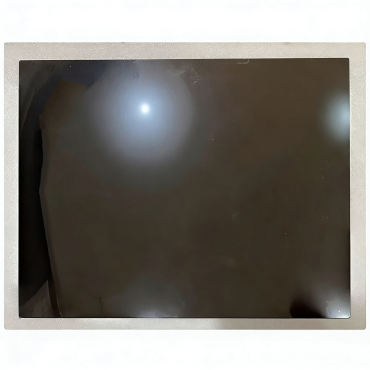

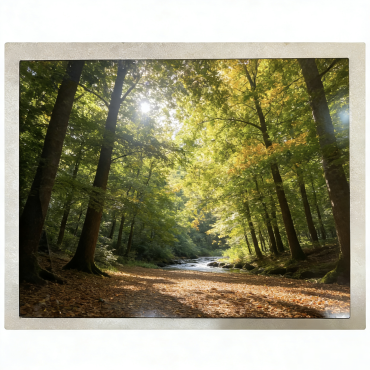

AUO G150XAN02.0 is a 15.0-inch a-Si TFT industrial LCD display module, whose core design mission is to provide a stable and durable visual interface amidst extreme temperature fluctuations. The LCD panel is not just a display component, but offers: ♦ Reliable operation that overcomes temperature barriers: It supports an industry-leading wide operating temperature range of -30℃ to 85℃. This means the LCD display can ensure uninterrupted information display without preheating or additional temperature control equipment, completely solving industry problems such as slow screen startup, ghosting, or drastically reduced lifespan caused by temperature variations. ♦ Low maintenance costs for long-term operation: With a backlight lifespan of up to 50,000 hours, combined with a matte hard coating (3H) for scratch resistance and anti-glare capabilities, it maintains long-lasting clarity and reliability in industrial environments with dust, vibration, or frequent cleaning, significantly reducing the frequency of maintenance and spare parts costs throughout the equipment's lifecycle. ♦ Plug-and-play integration convenience: It provides a complete module including an LED driver and a standard 20-pin LVDS interface, allowing your hardware team to skip complex backlight driver design and adaptation, quickly and reliably shortening the product development to mass production cycle.
♦ Model HXD-H58, HDMI+DC12V input, LVDS output, operating temperature-20 to 70, support maximum resolution of 1920*1080
♦ Model YT-VDH58 V1.1 HDMI +DC12V input, LVDS output, operating temperature-40 to 70, supports maximum resolution of 1920*1200
♦ Model HXD-VDH 58L V1.1 HDMI +DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
♦ Model HXD-V1680 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
♦ Model HXD-HP58UWV V1.1 HDMI+DC12V input, LVDS output, support audio amplifier: 2 x 10W, support maximum resolution 1920*1200
♦ Model HXD-VD68 V1.1 HDMI+DC12V input, LVDS output, operating temperature-20 to 65, support maximum resolution 1920*1200
◊ The supporting LCD driver board adopts stable industrial scheme. All devices meet industrial standards. LCD driver board has been strictly tested and demonstrated. The recommended LCD driver board is matched according to the parameters of the LCD panels.
◊ It expands the application of LCD panels. Detailed parameters of LCD driver board are described in detail on other pages.

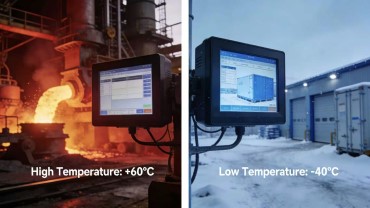

1. Ultra-wide operating temperature range: A working range of -30℃ to 85℃ covers the vast majority of extreme climates and demanding industrial scenarios worldwide, ensuring stable display performance even in freezing temperatures or scorching heat. 2. Industrial-grade long-life design: Core components are optimized for wide temperature ranges and continuous long-term operation, with a backlight lifespan of up to 50,000 hours, meeting the needs of 24/7 uninterrupted operation. 3. Robust surface protection: 3H hardness matte finish effectively resists scratches during installation, transportation, and daily use, and reduces ambient light interference.
1. Suitable Indoor and Outdoor Brightness: With a brightness of 500 cd/m², the display is clear and comfortable in indoor environments and also provides good visibility in semi-outdoor or brightly lit factory settings. 2. Distortion-Free Wide Viewing Angle: Utilizing AHVA technology, it achieves a full 89° viewing angle, ensuring consistent color and contrast from any direction, suitable for multi-person collaboration or non-frontal installation scenarios. 3. High Contrast Display: A high contrast ratio of 1000:1 makes text sharp and graphics and data clearly defined, improving the accuracy and efficiency of information retrieval.

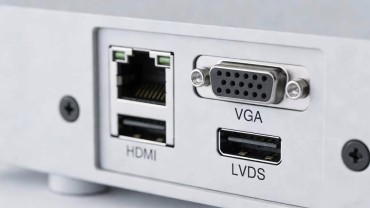

1. Ready-to-use module solution: Provides a complete kit including a driver board, simplifying customer BOM management and accelerating product assembly. 2. Universal LVDS interface: Widely compatible with mainstream industrial embedded platforms, reducing development barriers and compatibility risks. 3. Balanced cost-effectiveness: While providing top-tier wide-temperature performance, it maintains a competitive cost, making it an ideal choice for customers who prioritize long-term reliability and total cost of ownership (TCO).
As a TFT LCD display module supplier with 13 years of expertise, Zhengzhou Hengxinda Technology Co., Ltd has provided high-quality LCD panels to thousands of customers across diverse industries. For these industrial-grade TFT LCD displays, we offer a full suite of supporting services: we not only supply compatible core components such as touch screens and LCD control boards, but also provide all the small parts required for installation, enabling a one-stop shopping "LCD panels + relevant components + custom services". With our in-depth understanding of the application needs of different industries, we can accurately meet customer requirements, facilitating smooth integration while saving both time and costs. Whether you are looking for stable supply, reliable quality, or comprehensive supporting services, these cost-effective industrial LCD panels are the perfect fit. HXD is committed to advancing your industrial projects successfully with our professional services and complete supporting solutions.
FAQs: 1. Does G150XAN02.0 support touch functionality? A: G150XAN02.0 is a non-touch design. If you need touch functionality, we can provide a corresponding capacitive/resistive/infrared touch screen solution, supporting one-stop integration services. 2. Does the signal interface of G150XAN02.0 support other interfaces? A: The standard configuration is LVDS(1 ch,8-bit). If you need HDMI, DP, etc. other interfaces, we can provide customized adapter board services to meet your device compatibility requirements. 3. How long is the delivery cycle for bulk orders? A: The inventory of different models varies. The delivery cycle for regular bulk orders is 3-15 working days. For details, please contact us. 4. What is the warranty period of G150XAN02.0? A: We offer a 12-month warranty. During the warranty period, if there are quality issues that are not caused by human error, you can enjoy free repair or replacement services. 5. Can you provide customized services for the LCD panel? A: Yes. We support personalized requirements such as brightness adjustment, interface customization, and special optical processing. You can submit specific requirements, and our technical team will provide a customized solution within 3 working days. 6. Do you have a matching driver board or complete machine design solution? A: Yes. We have a professional hardware R&D team that can provide a complete set of design solutions from driver boards to the overall machine structure, helping you quickly complete product development and mass production.
