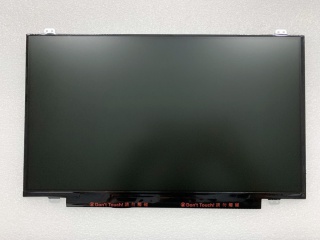

G140XTN01.0

G140XTN01.0

Download PDF Send Message

Basic Parameters

Brand	AUO	Model P/N	G140XTN01.0
Diagonal Size	14.0"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)x768,WXGA 112PPI	Pixel Format	RGB Vertical Stripe
Active Area	309.399(W)x173.952(H)mm	Bezel Opening
Outline Size	320.4(W)x205.1(H)x3(D)mm	Surface	Antiglare, Hard coating (3H)
Brightness	220 cd/m² (Typ.)	Contrast Ratio	400:1(Typ.)(TM)
Viewing Angle	45/45/15/35(Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock	Response Time	8(Typ.)(Tr+Td)
Display Colors	262K 45%NTSC	Lamp Type	WLED,10K hours,With LED Driver
Frequency	60Hz	Touch Screen	Without
Panel Weight	270g (Max.)	Application	Industrial
Signal Interface	eDP(1 Lane),30 pins Connector
Input Voltage	3.3V(Typ.)
Environment	Operating Temp.:0~50℃;Storage Temp.:-20~60℃

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
Tianma	P1400FHF1MA00	14"	1920×1080	800 nits	2200:1	WLED	LVDS	30	-20~70 °C
Tianma	P1330FHF1MB10	13.3"	1920×1080	600 nits	1000:1	WLED	LVDS	30	-20~70 ° C
Tianma	P1330FHF1ME10	13.3"	1920×1080	350 nits	1000:1	WLED	eDP	30	-20~70 °C
Innolux	N140HCG-GQ2	14"	1920×1080	400 nits	800:1	WLED	eDP	30	0~50℃
Innolux	GK133VB-01A	13.3"	3840×2160	1300 nits	1100:1	Mini LED	eDP	30	-20~70 ° C
Innolux	N133DCE-GP1	13.3"	3840×2160	340 nits	1500:1	WLED	eDP	40	0~50℃
