Wide temperature, WLED backlight, with LED driver, surface mount connectors, 6/8-bit grayscale option available, matte surface finish, Digitizer compatible.

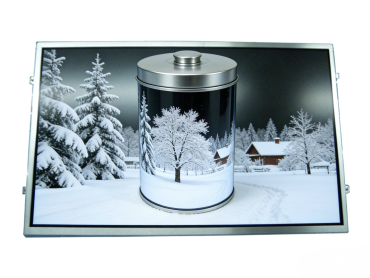

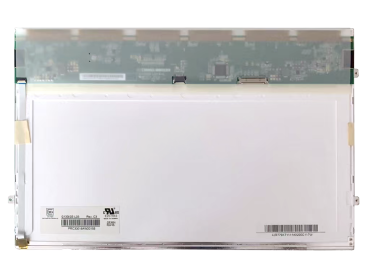

CHIMEI / Innolux G133IGE-L03 is a cost-effective 13.3-inch a-Si professional TFT LCD display panel designed for small and medium-sized equipment manufacturers. It features a 1280×800 WXGA resolution (113 PPI), 500 cd/m² brightness + 800:1 contrast ratio, along with a 3H hardness matte surface and 30K-hour WLED backlight---addressing the pain points of "screen prone to scratches, unclear display, and frequent maintenance" in equipment scenarios: 113 PPI meets the fine display requirements of small and medium-sized devices, the 3H hard surface can withstand daily scratches, and the 30K-hour backlight is sufficient to support the stable operation of the equipment for 3 years, making it a "cost-effective and practical" LCD TFT display.
Brand
Chimei / Innolux
Type
a-Si TFT-LCD
Model
G133IGE-L03
Surface Finish
Matte, Hard Coating (3H)
Size (inch)
13.3
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
308.7(W)×195(H)×8.2(D)
Optical Mode
TN,Normally white display, TM
Active Area (WxH mm)
289.1(W)×181.8(H)
Backlight Type
WLED, 30K hours, with LED drive
Viewing Angle
70/70/60/60 (Typ.)(CR≥10)
Interface
LVDS (1 ch, 6/8-bit), Connectors, 20 pins
Resolution
1280(RGB)×800,WXGA,113PPI
Response Time
6/10 (Typ.) (Tr/Td) ms
Brightness (cd/m²)
500
Display Colors
262K/16.7M, 43%NTSC
Contrast Ratio
800:1 (Typ.) (TM)
Operating Temperature (°C )
-30~ 70
Operating Voltage
3.3V (Typ.)
Storage Temperature (°C )
-30~80
Operating Frequency
60Hz
Weight
382/397g (Typ./Max.)
Application
Industrial Control
Self-service checkout machines in supermarkets, self-service ordering machines, government affairs self-service inquiry machines, outdoor self-service fuel dispensers, etc. 113PPI can clearly display details of bills / menus / government affairs operation interfaces; with a brightness of 500cd/㎡, it can adapt to indoor lighting or semi-outdoor environments, eliminating the need for frequent screen maintenance and reducing operating costs.
Industrial printer operation screen, secondary screen of conference tablet, attendance machine display screen, secondary screen of classroom multimedia, etc. With a 6/10ms response, the interface switching is smooth. The 1280×800 resolution clearly displays classroom teaching content, printing parameters, and attendance data; the 3H matte surface layer is anti-fingerprint and anti-abrasion, making daily cleaning much easier.
PLC control cabinets, packaging machine operation screens, logistics sorting machine displays, etc. The 800:1 contrast ratio ensures that the equipment parameters are clearly and easily readable. The 3H hard surface layer can withstand slight dust in the workshop and scratches from tools; the 30K hours of backlighting is sufficient to support the equipment's stable operation for 3 years, reducing the frequency of maintenance.
Zhengzhou Hengxinda Technology Co., Ltd is a profeesional LCD TFT display supplier from China, mainly providing brands sunch as AUO/BOE/IVO/Sharp/Innolux etc. We can offer the following service:
1. Customized Adaptation Services: We support customized adaptation of LCD screens in various sizes and models. From measurement to production, we provide one-on-one follow-up to ensure the glass cover perfectly fits the screen without affecting the original structure of the equipment.
2. Rigorous Quality Inspection: Every glass cover undergoes multiple tests for impact resistance, light transmittance, temperature tolerance, and more, meeting industrial-grade standards to ensure flawless products delivered to our customers.
3. Comprehensive After-Sales Support: Products come with a 12-month warranty. In case of non-human-caused issues such as glass breakage or detachment, we provide free replacement services.
4. "One-Stop Shopping" Experience: In addition to LCD TFT displays, we also supply a full range of related accessories, including LCD controller boards, LCD touch screens, light sensors, and compatible cables. You can also opt for touch screen bonding services or glass bonding services, enabling us to deliver an integrated display solution—from the screen to its peripheral components.
5. Reliable Logistics Shipping: We support various shipping methods, including air, sea, and land freight, and can flexibly adjust to your delivery timeline requirements. Standard LCD TFT panels products are shipped within 48 hours to 7 days, while customized products are delivered within 7 to 20 days.
FAQs:
1. Do you support free samples?
A: No, samples must be purchased at the retail price. When purchasing in bulk, the sample cost can be fully deducted from the corresponding payment. The sample delivery cycle is 1-2 working days.
2. How long is the cycle for customized complementary services (such as touch screen + bonding)?
A: If you choose the standard configuration of touch screen + bonding service, the order cycle is 7-10 working days; if you need a touch screen with customized special touch parameters, the cycle is 10-21 working days.
3. Is parameter customization supported?
A: Parameters such as interface type, brightness, and surface treatment can be customized. Customization requirements must meet a minimum order quantity of 500 units. Specific details can be discussed with us.
4. What is the after-sales guarantee for this product?
A: Provide 12 months full machine warranty (including screen and supporting driver board). Non-human damage (such as panel failure, backlight not working) can enjoy free repair / replacement services; beyond the warranty period, provide lifetime cost-price maintenance services.
5. Is there a price discount for bulk purchases?
A: Bulk purchases (≥100 units) can enjoy a stepped price discount. The larger the purchase volume, the higher the discount. Specific quotations can be provided by contacting us.
