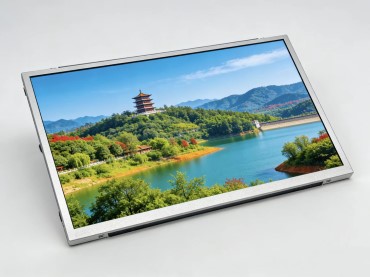

G133HAN01.1

G133HAN01.1

Wide Color Gamut, DCI-P3 and sRGB Coverage, White LED Backlight, 50,000+ Hours Lifespan, Integrated LED Driver, Anti-Glare (Matte) Surface, One-Chip Solution, JEIDA LVDS Interface.

Download PDF Send Message

13.3" 1920x1080 FHD 400nit AHVA Wide Gamut LCD Display | AUO G133HAN01.1

AUO G133HAN01.1 is a 13.3-inch Full HD industrial LCD module that brings cinematic color accuracy and wide viewing angles to applications where visual experience matters as much as reliability. The 1920×1080 FHD resolution with 166 PPI delivers sharp text and images. This TFT LCD display achieves an impressive 90% NTSC color gamut , meaning it reproduces colors with near-professional accuracy. For medical imaging, this means subtle tissue variations become visible. For gaming terminals, it means virtual worlds look more real than ever. For industrial HMIs, it means color-coded warnings are unmistakable. The AHVA technology provides true 89/89/89 full viewing angles. When multiple people gather around a screen—whether doctors reviewing a patient's scan, engineers discussing a design, or gamers waiting their turn—everyone sees the same accurate, vibrant image.

When you choose the AUO G133HAN01.1, you're choosing a LCD display that refuses to compromise—delivering both the visual quality that users notice and the reliability that engineers demand.



AUO G133HAN01.1 Basic Parameters

Brand AUO Model G133HAN01.1
Diagonal Size 13.3 inch Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)x1080,FHD 166PPI Pixel Format RGB  Vertical Stripe
Active Area 293.472(W)x165.078(H) mm Outline Dimension 295.07(W)x166.68(H) mm
Visual Area 309.7(W)x184.1(H) x10.1(D) mm Surface Treatment Matte
Brightness 400 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.) (CR≥10) Display Mode AHVA, Normally Black, Transmissive
Optimal Visual Angle Full-view Response Time 25(Typ.)(Tr+Td)
Display Colors 16.7M 90% NTSC Backlight WLED,50K hours, With LED Driver
Frame Frequency 60Hz Touch Function No
Panel Weight 500g (Max.) Application Gaming/Industrial Control/Medical Care
Interface LVDS (2 ch,8-bit),30 pins, Connector
Input Voltage 3.3V (Typ.)
Environment Temperature Operating Temperature:-20~70℃;Storage Temperature:-20~70℃

AUO G133HAN01.1 Backlight Details

Back-light Features



Lamp Type

WLED

Replacement

---

Position

Edge Light type

Amount

---

Lamp Shape

---

Life Time

50K (Typ.) hours

Interface Features

Position

---

Type

Connector

Interface Details

Brand

Model

Amount

Pins

Pin Pitch

HIROSE

DF19G-8P-1H(54)

1 pcs

8 pins

1.0 mm

Driver Electrical

with LED Driver

Driver Electrical

Current Input

1.25A (Typ.)

Voltage Input

12.0±1.2V

Consumption

15W (Max.)

AUO G133HAN01.1 Interface Details

Signal Electrical

Current Input

333.2/363.6mA (Typ./Max.)

Voltage Input

3.3V (Typ.)

Consumption

1.1/1.2W (Typ./Max.)

Signal System

LVDS (2 ch, 8-bit)

Interface Features

Position

---

Type

Connector

Connector Detail

Brand

Model

Amount

Pin Pitch

Pins

HIROSE

DF19K-30P-1H(54)

1pcs

1.0 mm

30 pins

AUO G133HAN01.1 Application Scenarios

♦ Medical & Healthcare

Terminals: Diagnostic imaging workstations, patient monitoring systems, medical review stations, telemedicine terminals, PACS displays, operating room information screens etc.

♦ Gaming & Entertainment Terminals

Terminals: Gaming machines, arcade game terminals, sports betting kiosks, interactive entertainment systems, VR arcade stations, hospitality entertainment units etc.

♦ Industrial Automation & Control Rooms

Terminals: Plant-wide monitoring stations, SCADA system displays, process control interfaces, quality inspection stations, production line dashboards etc.

♦ Commercial & Corporate AV

Terminals: Digital signage, conference room displays, corporate information boards, lobby welcome screens, executive briefing centers, training room monitors etc.

♦ Transportation & Passenger Information

Terminals: In-vehicle entertainment displays, passenger information systems, wayfinding kiosks, transit advertising screens, railway carriage displays, airport gate information terminals etc.



Ready to Bring True Color Accuracy to Your Equipment?

Let's talk about how the AUO G133HAN01.1 can transform your users' visual experience.

Whether you're designing medical imaging workstations, gaming terminals, control room displays, or commercial installations that need to impress, we're here to help you succeed. Share your requirements, your visual expectations, and your vision, and we'll provide straightforward guidance.

💬 Tell Us About Your Application

📧 Send us your inquiry today

👉 Request a Sample | Ask a Technical Question | Get a Quote

Why Partner with HXD for LCD TFT Displays?

As a leading China supplier of industrial TFT LCD display module solutions, Zhengzhou Hengxinda Technology Co,. Ltd specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.

Why Choose HXDLCD?

• One-stop Shopping: In addition to fully custom LCD display modules, we also provide supporting control boards, digital cables and touch screen solutions — all products can be purchased together.

• Customization Flexibility: Product dimensions, touch screen types and control board options can all be customized to meet the specific needs of your projects.

• Secure After-Sales Service: We offer a 1-year official warranty. For screens with non-human damage within the warranty period, free replacement or repair is provided.

Technology defines experience, and choices shape products. Welcome to contact us &.



FAQ

Q1: How does the 90% NTSC color gamut of the AUO G133HAN01.1 practically benefit medical imaging?

A: Ordinary industrial monitors typically only have a 45%-60% NTSC color gamut. When displaying medical images such as X-rays, CT scans, and MRIs, subtle grayscale differences and tissue boundaries may be lost. The G133HAN01.1's 90% NTSC high color gamut can present richer color levels, allowing doctors to clearly distinguish subtle differences between healthy tissue and lesion areas, improving diagnostic accuracy.

Q2: Do you provide matching driver boards and cables?

A: Yes, we provide a one-stop solution:

LVDS driver board: Supports multiple input interfaces such as HDMI, VGA, DVI, and DP
Industrial-grade 30-pin connection cable: Ensures stable signal transmission
Matching power adapter: Optional 12V or 24V input
Technical support: Provides complete interface definitions and timing parameters
We can provide complete display solutions.

Q3: What is your sample policy?

A: We offer paid sample testing services: Fast shipping: Samples are typically shipped within 1-5 business days. Professional packaging: Anti-static and shockproof packaging ensures safe transport. Technical support: A complete set of specifications is provided. We strongly recommend that you conduct sample verification before bulk purchase to ensure the screen fully meets your application environment, mechanical structure, and electrical requirements.

Q4: What is the availability of this LCD panel?

A: The G133HAN01.1 is a long-lifecycle product designed by AUO specifically for the industrial market, guaranteeing continuous supply for at least 3 years. For large-volume projects, annual stocking plans and capacity reservations are available. We will notify customers 6-12 months in advance of any product changes.

Q5: What if the LCD panel is damaged during transportation?

A: We provide comprehensive after-sales support: 12-month quality guarantee: Free repair or replacement for non-human-caused damage. Handling transportation damage: Please contact us within 48 hours of receipt and provide photographic evidence. We will handle the claim and arrange for a replacement.

Q6: Can the LCD panel be customized with touch functionality?

A: Of course. We can supply a variety of touch solutions:

Capacitive Touch screen: Supports multi-touch, 10-point touch, highly responsive, suitable for POS machines and interactive terminals.

Resistive Touch screen: Supports gloves and stylus input, suitable for industrial environments and medical scenarios.

Optical Bonding Service: Reduces internal reflections, improves visibility in sunlight, and increases structural strength.
