G121XTN02.0

G121XTN02.0

Wide temperature range, ultra-high brightness, WLED backlight, lifespan over 50,000 hours, includes LED driver, connectors installed on the top, 180-degree flip display, 6/8-bit grayscale options, matte surface.

Download PDF Send Message

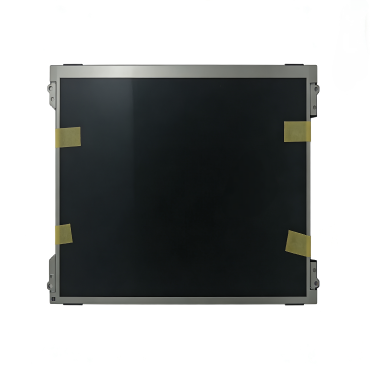

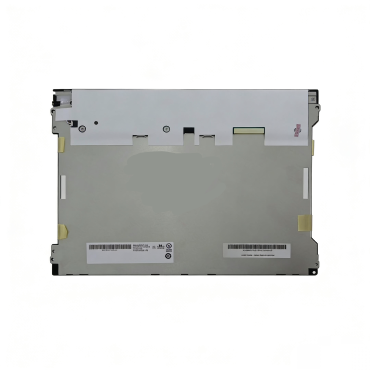

AUO G121XTN02.0

AUO G121XTN02.0 is a 12.1-inch a-Si TFT LCD panel with high brightness for industrial use. It features a RGBW rectangular pixel layout, combined with a 72% NTSC wide color gamut and a 700:1 contrast ratio, resulting in realistic and natural color reproduction. The LCD display module uses TN display technology, with viewing angles of 80/80/70/70 (CR ≥ 10), and the surface is treated with a matte hardening process (3H hardness), effectively reducing glare and providing scratch resistance. The brightness reaches up to 1000 cd/m², meeting the clear display requirements in strong light environments. The product's operating temperature range is wide, from -30°C to 85°C. It is equipped with a 653P WLED backlight system with a driver built-in, with a lifespan of up to 50,000 hours, suitable for various harsh industrial environments, providing a stable and long-lasting LCD TFT display solution.



Basic Parameter

Panel Brand AUO Panel Model G121XTN02.0
Panel Size 12.1 inch Panel Type a-Si TFT-LCD,LCD Module
Resolution ratio 1024(2)×768(2), XGA, 105PPI Pixel Layout RGBW rectangle
Display Area 245.76(W)×184.32(H) mm Appearance Size 260.5(W)×204(H)×9(D) mm
Brightness(cd/m²) 1000 (Typ.) Contrast Ratio 700 : 1 (Typ.) [Transmission]
Visual Angle 80/80/70/70 (Typ.) (CR≥10)  Surface Treatment Matte, Hard coating (3H)
Display Colors 262K/16.2M , 72% NTSC Optical Mode TN, normally white display, transmissive
Panel Weight 490g (Max.) Response Time 25/10 (Typ.) (Tr/Td) ms
Optimal Visual Angle 6 o'clock Backlight 6S3P WLED , 50K hours,with LEDdriver
Frame Frequency 60Hz   use for Industrial/High Brightness Scenarios
Signal Interface LVDS (1 ch, 6/8-bit) , Connectors, 20 pins Touch Function No
Driving Voltage 3.3V (Typ.)
Environment Temperature Operating Temperature: -30 ~85 °C ; Storage Temperature: -30 ~85 °C

AUO G121XTN02.0 Optical Details

Basic Information

Brightness (cd/m2)

1000

Contrast Ratio

700:1 (Transmission)

Viewing Angle

80/80/70/70 (Typ.)(CR≥10)

Optical Mode

TN, Normally White, Transmissive

Viewing Direction

---

Response Time

25/10 (Typ.)(Tr/Td) (ms)

Color Performance

Chromaticity

Wx:0.310; Wy:0.330

Color Numbers

262K/16.2M (6-bit / 6-bit+FRC )

Color Temperature

6638K

Uniformity

1.33 (Max.)(5 points)

AUO G121XTN02.0 Interface Details

Signal Electrical

Current Input

320/360 mA (Max.)

Voltage Input

3.3V (Typ.)

Consumption

1.056/ 1.296W (Max.)

Signal System

LVDS (1 ch, 6/8-bit)

Interface Features

Position

Back

Type

Connector

Connector Detail

Brand

Model

Amount

Pin Pitch

Pins

ACES

FI-SEB20P-HFE

1pcs

1.25 mm

20 pins



AUO G121XTN02.0 Backlight Details

Back-light Features



Lamp Type

WLED

Replacement

-

Position

Edge Light type

Amount

6S3P

Lamp Shape

Three strings

Life Time

50K (Min.) hours

Interface Features

Position

-

Type

Connector

Light Tube Electrical Components

Voltage Supply

19.2/21.6V (Typ./Max.)

Current Supply

50mA (Typ.)

Consumption

2.88/3.24W (Typ./Max.)

Interface Details

Brand

Model

Amount

Pins

Pin Pitch

ACES

50214-01001-001

1 pcs

10 pins

1.0mm

Driver Electrical

with LED Driver

Driver Electrical

Current Input

12.0±1.2V

Voltage Input

0.80A (Typ.)

Consumption

9.23W (Typ./Max.)

Why Choose Us?

Zhengzhou Hengxinda Technology Co., Ltd is a profeesional LCD TFT display supplier from China, mainly providing brands sunch as AUO/BOE/IVO/Sharp/Innolux etc. We can offer the following service:

1. Customized Adaptation Services: We support customized adaptation of LCD screens in various sizes and models. From measurement to production, we provide one-on-one follow-up to ensure the glass cover perfectly fits the screen without affecting the original structure of the equipment.

2. Rigorous Quality Inspection: Every glass cover undergoes multiple tests for impact resistance, light transmittance, temperature tolerance, and more, meeting industrial-grade standards to ensure flawless products delivered to our customers.

3. Comprehensive After-Sales Support: Products come with a 12-month warranty. In case of non-human-caused issues such as glass breakage or detachment, we provide free replacement services.

4. "One-Stop Shopping" Experience: In addition to LCD TFT displays, we also supply a full range of related accessories, including LCD controller boards, LCD touch screens, light sensors, and compatible cables. You can also opt for touch screen bonding services or glass bonding services, enabling us to deliver an integrated display solution—from the screen to its peripheral components.

5. Reliable Logistics Shipping: We support various shipping methods, including air, sea, and land freight, and can flexibly adjust to your delivery timeline requirements. Standard LCD TFT panels products are shipped within 48 hours to 7 days, while customized products are delivered within 7 to 20 days.



FAQs

Q: G121XTN02.0 has a brightness of 1000 nits. Will it consume a lot of power?
A: Higher brightness does increase some power consumption, but we have adopted the RGBW pixel technology and efficient WLED backlighting. Compared to traditional RGB screens, it is more energy-efficient at the same brightness. You can also adjust the backlight brightness to balance power consumption and display quality.



Q: The viewing angle specification is 80/80/70/70. How is it different from the common IPS screens?
A:G121XTN02.0 uses TN technology. The viewing angle is slightly narrower than that of IPS screens, but it can fully meet the requirements of industrial scenarios where the screen is directly facing (such as control consoles, equipment panels). If you need multiple people to view from multiple angles, it is recommended to choose our IPS or AHVA wide-angle models.



Q: Does G121XTN02.0 have a touch function?
A: G121XTN02.0 does not have a touch function. If you need a touchscreen, we can provide an additional touch screen fitting service, supporting capacitive, resistive or infrared touch solutions.



Q: How long does it take to ship after placing an order?
A: The delivery period for regular orders is approximately 2 to 20 days. The exact time will depend on the order details and the shipping method you choose.



Q: How do we ensure the safety of the screen during transportation?
A: We use industrial-grade shock-proof packaging. The inner layer is anti-static pearl cotton, the middle layer is high-density foam, the outer layer is thick cardboard, and we will attach a fragile item label. For large shipments, wooden boxes or pallets will be used for reinforcement during transportation to ensure safety.
