Wide temperature, 1000cd/m2 Ultra-high brightness, WLED backlight, lifespan over 50,000 hours, with LED driver, 180-degree flip display, 6/8-bit grayscale options, matte surface.

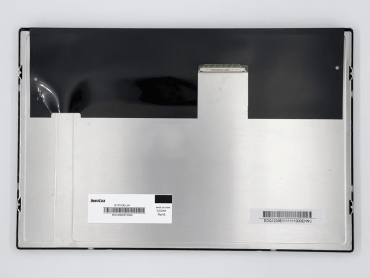

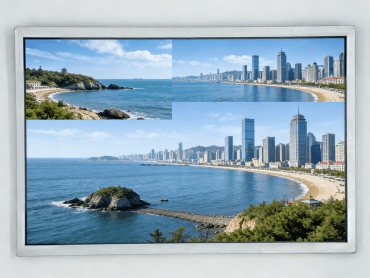

| Panel Brand | Innolux | Panel Model | G121ICE-LH1 |
| Panel Size | 12.1-inch | Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1280(RGB)x800, WXGA,124PPI | Pixel Layout | RGB vertical stripes |
| Display Area | 261.12(W)x163.2(H) mm | Appearance Size | 278(W)x184(H)x10.5(D) mm |
| Visual Area | 264.12(W)x166.2(H) mm | Surface Treatment | Hard coating(3H) |
| Brightness | 1000 cd/m² (Typ.) | Contrast Ratio | 1000:1(Typ.) (transmission) |
| Opticl Visual Angle | Full-view | Response Time | 13/12 (Typ.) (Tr/Td) ms |
| Visual Angle | 89/89/89/89 (Typ.) (CR≥10) | Display Mode | AAS, normally black display, transmissive |
| Display Color | 262K/16.7M,72% NTSC | Backlight | WLED,50K hours with LED driver |
| Weight | 470/490g (Typ./ Max.) | Application | Industrial Control/Outdoor Highlight Terminals |
| Frame Frequency | 60Hz | Touch Screen | No |
| Interface | LVDS (1 ch, 6/8-bit), Connectors, 30 pins | ||
| Voltage Supply | 3.3V (Typ.) | ||
| Environment Temperature | Operating Temperature:-30~80 °C; Storage Temperature:-30~85 °C | ||
| Basic Information | Brightness (cd/m2) | 1000 | Contrast Ratio | 1000:1 (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive | |
| Viewing Direction | Full-view | Response Time | 13/12 (Typ.)(Tr/Td) (ms) | |
| Color Performance | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 8-bit ) |
| Color Temperature | 6485K | Uniformity | 1.25/1.43 (Typ./Max.)(5 points) | |
| 1931 Color Gamut | NTSC Ratio | 72% | sRGB | 94% |
| Adobe RGB | 73% | DCI-P3 | 75% | |
| REC.2020 | 54% | REmarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical | Current Input | 560/675mA (Typ./Max.) | Voltage Input | 3.3V (Typ.) | |
| Consumption | ---W (Typ./Max.) | Signal System | LVDS (1 ch, 6/8-bit) | ||
| Interface Features | Position | --- | Type | Connector | |
| Connector Detail | Brand | Model | Amount | Pin Pitch | Pins |
| P-TWO | 187114-30091 | 1pcs | 1.0 mm | 30 pins | |
| Back-light Features
| Lamp Type | WLED | Replacement | - | Position | Edge Light type |
| Amount | - | Lamp Shape | - | Life Time | 50K (Min.) hours | |
| Interface Features | Position | - | Type | Included in the signal interface | ||
| Driver Electrical | with LED Driver | |||||
| Driver Electrical | Current Input | 12.0±1.2V | Voltage Input | 0.8/1.0 A (Typ./Max.) | ||
| Consumption | 9.6/12W (Typ./Max.) | |||||
Custom-Matched Driver Boards
We provide industrial-grade driver boards fully compatible with the G121ICE-LH1, supporting plug-and-play functionality via LVDS interface. Built-in with industrial-grade chips, these driver boards are suitable for operation within a temperature range of -30°C to 85°C.

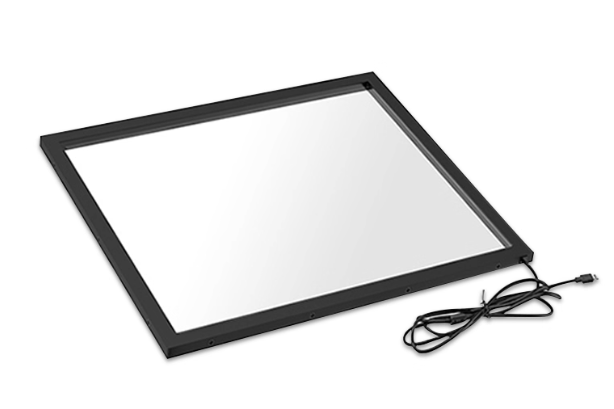

Customized Touch Screens
Capacitive touch screens or resistive touch screens in corresponding sizes can be configured according to your device requirements. The resolution and touch accuracy of the touch screens are perfectly matched to the display performance of the LCD TFT display panels.
High-Precision Bonding Technology
We offer Air bonding and Frame bonding services for integrating touch screens with LCD TFT display panels, adopting industrial-grade bonding processes. The bonding tolerance is controlled within ±0.2mm, with additional dust-proof and anti-fog treatment applied.
If you need a customized integrated solution combining LCD display panel, driver board, touch screen and bonding, feel free to contact us. We will provide a tailor-made compatibility plan based on your device parameters and application scenarios!
FAQs:
1. Do you support free samples?
A: No, samples must be purchased at the retail price. When purchasing in bulk, the sample cost can be fully deducted from the corresponding payment. The sample delivery cycle is 1-2 working days.
2. How long is the cycle for customized complementary services (such as touch screen + fitting)?
A: If you choose the standard configuration of touch screen + fitting service, the order cycle is 7-10 working days; if you need a touch screen with customized special touch parameters, the cycle is 10-21 working days.
3. Is parameter customization supported?
A: Parameters such as interface type, brightness, and surface treatment can be customized. Customization requirements must meet a minimum order quantity of 500 units. Specific details can be discussed with us.
4. What is the after-sales guarantee for this product?
A: Provide 12 months full machine warranty (including screen and supporting driver board). Non-human damage (such as panel failure, backlight not working) can enjoy free repair / replacement services; beyond the warranty period, provide lifetime cost-price maintenance services.
5. Is there a price discount for bulk purchases?
A: Bulk purchases (≥100 units) can enjoy a stepped price discount. The larger the purchase volume, the higher the discount. Specific quotations can be provided by contacting us.
| Brand | Model Name | Size | Resolution | Brightness | Contrast Ratio | Backlight Type | Interface | pins | Operation Temperature | Download PDF | Add Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tianma | P1210XGF1MA01 | 12.1" | 1024×768 | 800 nits | 1000:1 | WLED | LVDS | 20 | -30~80 ° C | ||
| Tianma | P1210XGF1MA00 | 12.1" | 1024×768 | 1300 nits | 1000:1 | WLED | LVDS | 20 | -30~80 ° C | ||
| Tianma | P1210SVF1MB00 | 12.1" | 800×600 | 500 nits | 1000:1 | WLED | LVDS | 20 | -20~70 ° C | ||
| Tianma | P1210XGN1MB00 | 12.1" | 1024×768 | 450 nits | 700:1 | WLED | LVDS | 20 | -20~70 ° C | ||
| Tianma | P1210WXF2MA00 | 12.1" | 1280×800 | 1500 nits | 1000:1 | WLED | LVDS | 20 | -30~85 ° C | ||
| Innolux | G121XCE-P01 | 12.1" | 1024×768 | 1000:1 | No Backlight | LVDS | 20 | -30~85 ° C | |||
| Innolux | G121XCE-PM1 | 12.1" | 1024×768 | 1000:1 | No Backlight | LVDS | -30~75 ° C | ||||
| Innolux | G121ICE-PM1 | 12.1" | 1280×800 | 1000:1 | No Backlight | LVDS | 30 | -20~70 °C | |||
| Innolux | G121ICE-P01 | 12.1" | 1280×800 | 1000:1 | No Backlight | LVDS | 30 | -30~80 °C | |||
| Innolux | G121XCE-L02 | 12.1" | 1024×768 | 500 nits | 1000:1 | WLED | LVDS | 20 | -30~70℃ |
