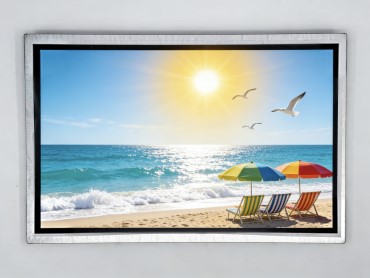

G121ICE-L01

G121ICE-L01

Wide temperature, 600 cd/m2 high brightness, WLED backlight, lifespan over 50,000 hours, with LED driver, 6/8-bit grayscale option, matte surface.

Download PDF Send Message

Product Description

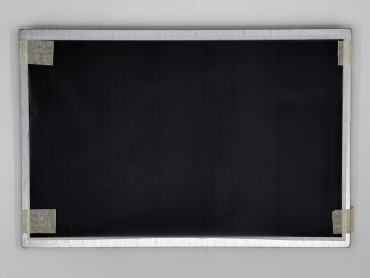

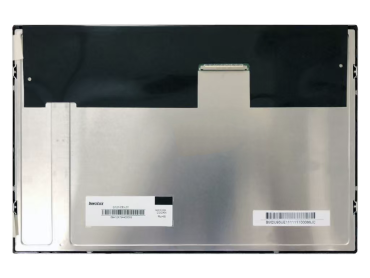

Innolux G121ICE-L01 is a 12.1-inch a-Si durable high-definition TFT LCD module. It is not an ordinary consumer-grade LCD Panel; it is a professional LCD display for helping equipment manufacturers reduce costs and improve experience. For those who use industrial/medical/vehicle/commercial equipment: The 600cd/m2 enables workers/consumers to read data in the strong light. It is equipped with a 1280×800 WXGA high-definition resolution and is paired with a 3H hard matte surface, which can solve the pain points in the equipment scenario such as "not being able to see clearly in strong light, screen prone to scratches, and rapid backlight attenuation". It is a practical professional LCD TFT panel that meets high-definition display requirements and can also reduce maintenance costs.



Basic Parameters

Panel Brand Innolux Panel Model G121ICE-L01
Panel Size 12.1-inch Panel Type a-Si TFT-LCD, LCD Module
Resolution 1280(RGB)x800,WXGA,124PPI Pixel Layout RGB vertical stripes
Display Area 261.12(W)x163.2(H) mm Appearance Size 278(W)x184(H)x10.5(D) mm
Visible Size 264.12(W)x166.2(H) mm Surface Treatment Matte, Hard coating (3H)
Brightness (cd/m2) 600 (Typ.) Contrast Ratio 1000:1(Typ.) [Transmission]
Optimal Visual Angle Full-view Optical Mode AAS, normally black display, transmissive
Visual Angle 89/89/89/89 (Typ.) (CR≥10) Response Speed 12/8 (Typ.) (Tr/Td) ms
Display Colors 262K/16.7M ,72% NTSC Backlight WLED,50K hours with LED driver
Weight 455/490g (Typ./ Max.) Application Industrial Engineering
Refresh Rate 60Hz Touch Function No
Signal Interface LVDS(1 ch, 6/8-bit), Connectors, 30 pins
Supply Voltage 3.3V (Typ.)
Environment Temeprature Storage Temperature: -30 ° C ~ 85 ° C; Working Temperature: -30 ° C ~ 80 ° C

Innolux G121ICE-L01 LCD TFT Display Panel Application

♦ Industrial Control Domain

• CNC numerical control lathe operation screens, AGV logistics trolley scheduling screens, power distribution monitoring screens, etc.

• 600cd/m2 high brightness, capable of resisting strong light in workshops, 124PPI clear display of micrometer-level parameters of the lathe; 3H hard surface layer resistant to cutting fluid splashing + metal debris scratching, 50K hours of backlighting reduces the frequency of production line maintenance and avoids production loss.

♦ Outdoor Commercial Domain

• Outdoor self-service ticket machines, intelligent charging station screens, logistics express locker screens, etc.

• 600cd/m2 high brightness, capable of resisting outdoor sun exposure, 1000:1 contrast ratio enables clear display of screen information in sunlight; 3H matte surface layer resistant to fingerprints / rain splashes, wiped clean in one go, reducing terminal cleaning costs.

♦ Medical Auxiliary Domain

• Portable ultrasound instrument auxiliary screens, rehabilitation therapy instrument parameter screens, bedside monitoring screen displays, etc.

•72% NTSC color gamut makes the color gradation of ultrasound images more rich, 124PPI clear display of curve details; anti-corrosion surface layer resistant to alcohol wiping, 89° full viewing angle convenient for medical staff to view from multiple angles, avoiding diagnostic errors.



Why Choose Us?

HXD is a professional manufacturer that has been deeply involved in the LCD TFT display industry for 12 years. We focuse on providing you with high-quality LCD display solutions and related services. At the core product level, we provide global high-end brands such as AUO, BOE, IVO, CHEIMEI, Innolux, and Sharp to meet the LCD display requirements in different scenarios. We also have our own independent R&D production capacity and can provide supporting accessories such as driver boards, cables, and touch screens that are compatible with LCD screens, achieving "LCD panel + accessories" one-stop supply, eliminating the complexity of multiple channel procurement for customers. With 12 years of accumulated professional technology and experience, HXD not only provides standardized products but also supports OEM & ODM customization services, precisely matching your individualized needs. The service also offers free quotations and free technical document support, providing efficient and high-quality services from demand connection, scheme design to after-sales guarantee, and is committed to becoming a trusted LCD display solution partner for you.



FAQs

1. What are the payment methods available?
A: We support wire transfer, Alipay/WeChat (for small orders), and for bulk orders, a 50% deposit plus the final payment will be required for shipment.


2. How long is the delivery time?
A: For international trade, it can be delivered via Fedex/DHL/sea/air freight, with an average delivery time of 3-30 days (depending on the region and the shipping way that you choose).


3. Can your LCD tft display panel parameters be customized?
A: For bulk orders, resolution and interface customization are supported. Please communicate the parameters and minimum order quantity in advance.


4. How are the after-sales faults handled?
A: After providing the fault certificate, a solution will be provided within 72 hours. Non-human factors-related issues will be free of charge for return, replacement or repair.
