G121EAN01.6

sRGB, wide temperature, WLED backlighting, with a lifespan exceeding 50,000 hours, including LED driver, matte surface.

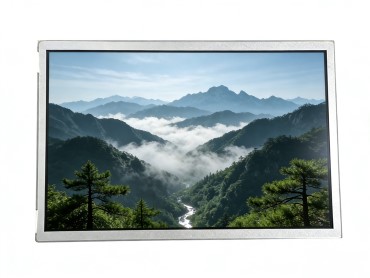

AUO G121EAN01.6

AUO G121EAN01.6 is a 12.1-inch industrial-grade TFT LCD display module equipped with an advanced eDP interface. It uses a high-quality a-Si TFT-LCD panel. Its resolution is 1280 (RGB) × 800 (WXGA standard), with a pixel density of 124 PPI, presenting you with clear and detailed images. The LCD panel adopts AHVA wide viewing angle technology, providing a full viewing experience of 89/89/89 (CR≥10) from different angles, ensuring true, consistent colors and contrast regardless of the viewing angle. Its core feature is the adoption of the eDP interface, which offers higher transmission bandwidth and more stable signals, and is compatible with new-generation embedded motherboards and industrial computers. The structure is compact and sturdy, with a working temperature range covering -30°C to 85°C. It is equipped with a WLED backlight system containing a driver, with a lifespan of up to 50,000 hours. It is a cost-effective LCD TFT display solution that is suitable for harsh environments.

Basic Parameters

Brand	AUO	Model	G121EAN01.6
Diagonal Size	12.1 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)x800,WXGA 124PPI	Pixel Format	RGB Vertical Stripe
Display Area	261.12(W)x163.2(H) mm	Outline Dimension	264.22(W)x168.12(H)mm
Active Area	278(H)x184(V) x9.52(D) mm	Surface Treatment	Matte, Hard coating (3H)
Brightness	400 cd/m² (Typ.)	Contrast Ratio	1000:1(Typ.)(TM)
Optimal Visual Angle	Full-view	Response Time	25(Typ.)(Tr+Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Optical Mode	AHVA, Normally Black, Transmissive
Display Color	16.2M 72% NTSC	Backlight	WLED,50K hours, With LED Driver
Weight	480g (Max.)	Application	Industrial, Medical
Frame Rate	60Hz	Touch Function	No
Interface Type	eDP (1 Lane),30 pins, Connector
Power Supply	3.3V (Typ.)
Environment Temperature	Operating Temperature: -30~85℃; Storage Temperature: -30~85℃

AUO G121EAN01.6 Key Feature

"eDP Interface, Efficient and Stable" – A Industrial TFT LCD Display Solution Optimized for the New Generation of Embedded Systems

♦ Advanced eDP Interface: Utilizes a 1 Lane eDP interface, offering higher signal transmission rates, stronger anti-interference capability, and simpler cabling compared to traditional LVDS interfaces. It is perfectly compatible with new-generation embedded platforms.

♦ Wide-Temperature Ruggedness: Operates reliably across a wide temperature range of -30°C to 85°C, withstanding extreme cold and heat. It adapts to harsh environments like workshops and outdoors, ensuring long-term stable operation of equipment.

♦ Long-Lasting High-Quality Backlight: Features an efficient WLED backlight system with an integrated LED driver, ensuring a long lifespan of 50,000 hours. It delivers a uniform brightness of 400 cd/m² for stable and reliable image quality.

♦ Industrial-Grade Structural Design: Its compact mechanical structure, matte anti-scratch surface, and robust connector are specifically designed for embedded installation and to meet anti-vibration requirements in industrial environments.

Why Choose Us?

Zhengzhou Hengxinda Technology Co., Ltd. (HXD) is a professional 12-year supplier specializing in custom LCD TFT displays--from development to production, from sales to service. We fully controls the entire chain independently and also possesses a 1,000 m² factory, laying a solid foundation for stable delivery and quality assurance. We provide the production, sales and after-sales services of various brand LCD panels (such as AUO, BOE, IVO,CHIMEI, Innolux, and Sharp etc.), and develops LCD control boards to expand functions and related cables, achieving integrated services of "hardware + functions + adaptation".

With 12 years of technical accumulation and market experience, we have served over a thousand customers from industry, medical, and commercial display. We are a cost-effective partner for the implementation of display equipment in various industries.

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
Tianma	P1210XGF1MB00	12.1"	1024×768	500 nits	1000:1	WLED	LVDS	20	-30~80 °C
Tianma	P1210XGN1MB00	12.1"	1024×768	450 nits	700:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1210WXF2MA00	12.1"	1280×800	1500 nits	1000:1	WLED	LVDS	20	-30~85 ° C
Tianma	P1210WXF2MA01	12.1"	1280×800	1100 nits	1000:1	WLED	LVDS	20	-30~80 °C
Tianma	P1210XGF1MA01	12.1"	1024×768	800 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P1210WXF1MB00	12.1"	1280×800	450 nits	1000:1	WLED	LVDS	30	-20~70 ° C
Tianma	P1210XGF1MA00	12.1"	1024×768	1300 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P1210SVF1MB00	12.1"	800×600	500 nits	1000:1	WLED	LVDS	20	-20~70 ° C
Innolux	G121ICE-L02	12.1"	1280×800	400 nits	1000:1	WLED	LVDS	30	-20~70 ° C
Innolux	G121ICE-LH1	12.1"	1280×800	1000 nits	1000:1	WLED	LVDS	30	-30~80 °C
Innolux	G121ICE-L01	12.1"	1280×800	600 nits	1000:1	WLED	LVDS	30	-30~80 ° C
Innolux	G121ICE-P01	12.1"	1280×800		1000:1	No Backlight	LVDS	30	-30~80 °C
Innolux	G121ICE-LH2	12.1"	1280×800	600 nits	1000:1	WLED	LVDS	30	-30~80 °C
