G121EAN01.3

G121EAN01.3

sRGB, wide temperature, 1500cd/m2 ultra-high brightness, WLED backlight, lifespan over 50,000 hours, 6/8-bit grayscale options, matte surface

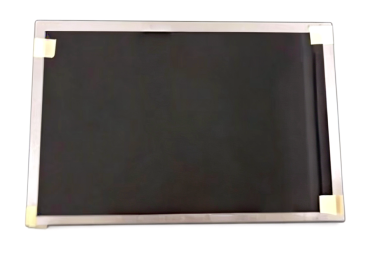

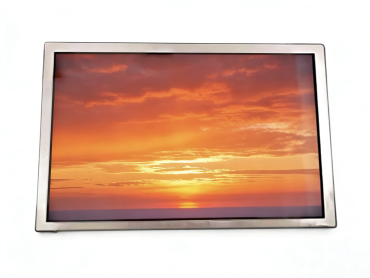

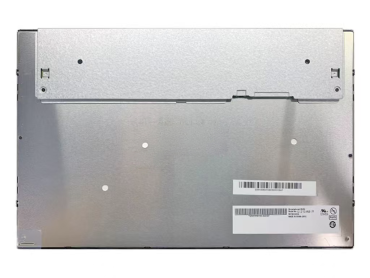

AUO G121EAN01.3


AUO G121EAN01.3 is an industrial-grade TFT LCD display module specifically designed for extreme outdoor environments. The LCD panel employs AHVA wide-angle viewing technology, offering an 89°/89°/89°/89° (CR≥10) full-angle viewing experience, ensuring consistent color and clear contrast at any angle. The panel surface is treated with matte hardening (3H hardness), effectively suppressing glare and enhancing scratch resistance. In terms of color performance, it supports 262K/16.2M color display, covering 99% of the sRGB color gamut, combined with a 1000:1 high contrast ratio, enabling vivid and accurate color reproduction. Its most prominent feature is a typical brightness of 1500 cd/m², reaching the leading level in the industrial display field, maintaining excellent readability even in strong direct sunlight. The backlight system employs long-lasting WLED light sources (lifespan of 50,000 hours), with a sturdy and reliable structure, making G121EAN01.3 an ideal choice for touchless industrial LCD TFT display applications.



Basic Parameters


Brand AUO Model G121EAN01.3
Diagonal Size 12.1 inch Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)x800,WXGA 124PPI Pixel Layout RGB  Vertical Stripe
Active Area 261.12(W)x163.2(H)mm Outline Dimension 264.22(W)x168.12(H)mm
Visual Area 283(W)x185.1(H)x9.9(D) mm Surface Treatment Antiglare, Hard coating (3H)
Brightness 1500 cd/m²(Typ.) Contrast Ratio 1000:1(Typ.)(TM)
View Direction Full-view Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Optical Mode AHVA, Normally Black, Transmissive
Display Colors 262K/16.2M 99% sRGB Backlight WLED,50K hours, W/O Driver
Weight 490g (Max.) Application Industrial, outdoor highlights
Frame Rate 60Hz Touch Function No
Interface Type LVDS (1 ch, 6/8-bit), 20 pins, Connector
Power Supply 3.3V (Typ.)
Environment Temperature Operating Temperature:-30~85℃;Storage Temperature:-30~85℃

AUO G121EAN01.3 LCD TFT Display Panel Optical Detials


Basic Information

Brightness (cd/m2)

1500

Contrast Ratio

1000:1 (Transmission)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Optical Mode

AHVA, Normally Black, Transmissive

Viewing Direction

Full-view

Response Time

25 (Typ.)(Tr+Td) (ms)

Color Performance

Chromaticity

Wx:0.313; Wy:0.329

Color Numbers

262K/16.7M (6-bit / 6-bit+FRC )

Color Temperature

6485K

Uniformity

1.33 (Max.)(5 points)

1931 Color Gamut

NTSC Ratio

73%

sRGB

99%

Adobe RGB

75%

DCI-P3

75%

REC.2020

54%

REmarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G121EAN01.3 LCD Panel Application Scenarios


This ultra-bright LCD display module has been deeply optimized for the following outdoor and special lighting environment applications:
• Outdoor high-brightness digital signage: Suitable for highway billboards, square LED information screens, building exterior displays, etc., in extremely bright environments.
• Marine and aviation instrument displays: Meeting the critical information display requirements in high-intensity environments such as bridge control consoles and aircraft cockpits.
• Industrial automation outdoor control terminal: Applied to the interfaces of heavy machinery such as oilfield drilling platforms, port crane operation consoles, and open-pit mining equipment.
• Outdoor screens for new energy charging stations: Ensure that the charging status and payment interface are clearly readable even in direct sunlight.
• Medical mobile diagnostic equipment (for outdoor emergencies): Used in ambulances and for medical equipment during field inspections. It maintains imaging diagnostic accuracy in strong light.
• Intelligent transportation system display terminals: such as outdoor smart ticket vending machines, bus electronic stop signs, parking lot guidance screens, etc.
• Special vehicle-mounted display screens: including those for engineering vehicles, fire engines, military vehicles, and other vehicles with vibration and high-contrast display requirements in such environments.

Why Choose Us?

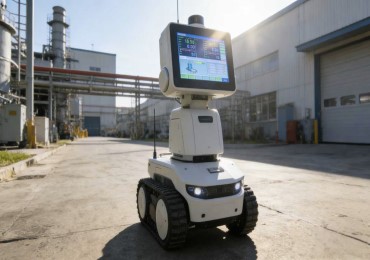

  • AUO G121EAN01.3 Key Feature
    AUO G121EAN01.3 Key Feature

    The brightness of ordinary industrial LCD TFT displays is usually between 500 - 1000 cd/m², while the G121EAN01.3 raises the typical brightness to 1500 cd/m², achieving perfect visibility even under direct sunlight at noon. Combined with a 99% sRGB color gamut and a 1000:1 contrast ratio, it ensures that the picture maintains color saturation and clear gradations even at extremely high brightness levels. Key technical advantages: 1. Extremely wide temperature operating capability: The working temperature range is from -30℃ to 85℃, capable of adapting to outdoor environments with alternating extreme cold and heat. 2. Strengthening the optical structure: The matte hardening coating effectively scatters ambient light, reduces reflection interference, and enhances outdoor readability. 3. Long-lasting backlight system: 50,000-hour backlight lifespan, using high-efficiency WLEDs, which maintains high brightness while optimizing energy consumption performance. 4. Industrial-grade interface reliability: The 20-pin LVDS interface has strong anti-interference capabilities and is suitable for long-distance signal transmission and complex electromagnetic environments.

HXD is a professional supplier that has been deeply involved in the LCD TFT display industry for 12 years. We focus on providing you with high-quality custom LCD display solutions and related services. At the core product level, we provide global high-end brands such as AUO, BOE, IVO, CHEIMEI, Innolux, and Sharp to meet the LCD display requirements in different scenarios. We also have our own independent R&D production capacity and can provide supporting accessories such as LCD controller boards, cables, and touch screens, achieving "LCD panel + accessories" one-stop supply. With 12 years of accumulated professional technology and experience, HXD not only provides standardized products but also supports OEM & ODM customization services, precisely matching your individualized needs. The service also offers free quotations and free technical document support, providing efficient and high-quality services from demand connection, scheme design to after-sales guarantee, and is committed to becoming a trusted LCD display solution partner for you.



FAQs:

1. Do you support free samples?

A: No, samples must be purchased at the retail price. When purchasing in bulk, the sample cost can be fully deducted from the corresponding payment. The sample delivery cycle is 1-2 working days.

2. How long is the cycle for customized complementary services (such as touch screen + bonding)?

A: If you choose the standard configuration of touch screen + bonding service, the order cycle is 7-10 working days; if you need a touch screen with customized special touch parameters, the cycle is 10-21 working days.

3. Is parameter customization supported?

A: Parameters such as interface type, brightness, and surface treatment can be customized. Customization requirements must meet a minimum order quantity of 500 units. Specific details can be discussed with us.

4. What is the after-sales guarantee for this product?

A: Provide 12 months full machine warranty (including screen and supporting driver board). Non-human damage (such as panel failure, backlight not working) can enjoy free repair / replacement services; beyond the warranty period, provide lifetime cost-price maintenance services.

5. Is there a price discount for bulk purchases?

A: Bulk purchases (≥100 units) can enjoy a stepped price discount. The larger the purchase volume, the higher the discount. Specific quotations can be provided by contacting us.
