sRGB, wide temperature, WLED backlight, with a lifespan exceeding 50,000 hours, including LED driver, 6/8-bit grayscale options available, matte surface.
• The LCD displays colors more accurately and true-to-life. For example, the color gradations in medical images and the interface color schemes of commercial terminals can both be reproduced as intended. This avoids misjudgments caused by color deviations and enhances the professionalism of the device.
♦ 50K-Hour WLED Backlight
• The brightness attenuation is ≤20% even after continuous use. There’s no need for frequent backlight replacements. This saves money on spare parts purchases and eliminates downtime for device operations, directly reducing long-term maintenance costs.
♦ 3H Hardness Matte Surface
• The LCD panel won’t be scratched by customer nails, dust particles around the device, or light tool scuffs. Frequent screen replacements are unnecessary, saving the labor costs and downtime associated with disassembling and replacing screens.
♦ 1280×800 WXGA Resolution (124PPI)
• Small text parameters and detailed icons on the device (such as values on industrial meters and operation buttons on self-service terminals) are clearly displayed. There’s no need to lean in to identify them accurately, which improves operational efficiency.

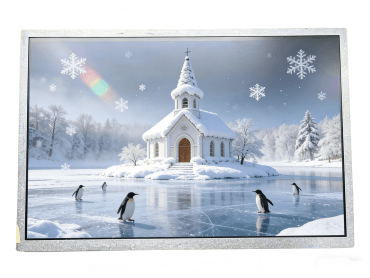

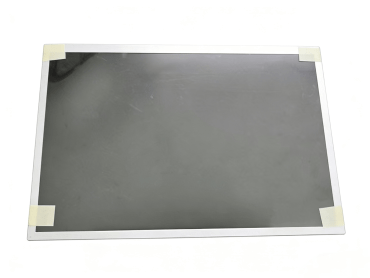

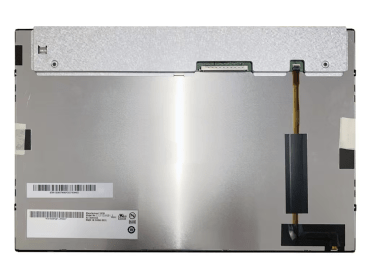

| Panel Brand | AUO | Panel Model | G121EAN01.1 |
| Panel Size | 12.1 inches | Panel Type | a-Si TFT-LCD, Liquid Crystal Module |
| Resolution | 1280(RGB)x800,WXGA,124PPI | Pixel Layout | RGB vertical stripe |
| Display Area | 261.12(W)x163.2(H)mm | Appearance Size | 278(W)x184(H)x9.64(D) mm |
| Visible Size | 264.22(H)x168.12(V)mm | Surface Treatment | Matt, Hard coating(3H) |
| Display Brightness | 400 cd/m²(Typ.) | Contrast Ratio | 1000:1(Typ.)(Transmission) |
| Viewing Direction | Full View | Response Time | 25(Typ.)(Tr+Td) ms |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black Display, Transmission Type |
| Display Colors | 262K/16.2M, 99% sRGB | Backlight | WLED, 50K hours, including LED driver |
| Weight | 480g(Max.) | Application | Industry, Medical Care |
| Frame Rate | 60Hz | Touch Screen | No |
| Interface Type | 30 pins LVDS(1 channel, 6/8-bit), connector | ||
| Voltage Supply | 3.3V(Typical) | ||

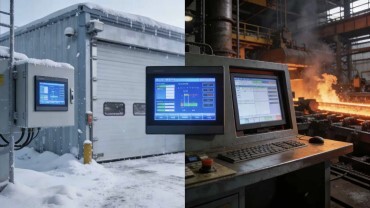

| Application Environment | Operating temperature: -30~85℃; Storage temperature: -30~85℃ | ||

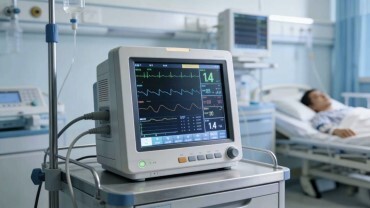

♦ Medical Equipment Field
• Terminal : Portable ultrasound machines, ECG monitors, rehabilitation therapy equipment etc.
• The 99% sRGB color gamut reproduces image details, 124PPI clearly displays curve parameters to avoid misreading values; the 50K-hour backlight reduces maintenance and won’t delay the diagnosis and treatment process.
♦ Industrial Control Field
• Terminal : CNC lathes, AGV logistics carts, power distribution monitoring screens etc.
• 124PPI clearly displays micron-level parameters for more precise operation by workers; the 3H hard surface resists cutting fluid/metal shavings, eliminating frequent screen replacements; the 50K-hour backlight supports stable device operation, reducing production line downtime losses.
♦ High-end Commercial Terminal Field
• Terminal : High-end self-service vending machines, government service terminals, brand experience screens etc.
• The 99% color gamut makes the interface more sophisticated, which matches the brand tone; 124PPI keeps small icons clear, so customers can operate easily; the 3H hard surface resists fingerprints, keeping the terminal clean and attractive at all times.
♦ Office Professional Equipment Field
• Terminal : Industrial printers, secondary screens for conference tablets, high-precision time attendance machines etc.
• The 99% color gamut makes the operation interface more comfortable; 124PPI clearly displays printing parameters/time attendance data; the matte surface resists glare, making viewing easier in office environments.
HXD is a professional manufacturer that has been deeply involved in the LCD TFT display industry for 12 years. We focuse on providing you with high-quality custom LCD display solutions and related services. At the core product level, we provide global high-end brands such as AUO, BOE, IVO, CHEIMEI, Innolux, and Sharp to meet the LCD display requirements in different scenarios. We also have our own independent R&D production capacity and can provide supporting accessories such as driver boards, cables, and touch screens that are compatible with LCD screens, achieving "LCD panel + accessories" one-stop supply, eliminating the complexity of multiple channel procurement for customers. With 12 years of accumulated professional technology and experience, HXD not only provides standardized products but also supports OEM & ODM customization services, precisely matching your individualized needs. The service also offers free quotations and free technical document support, providing efficient and high-quality services from demand connection, scheme design to after-sales guarantee, and is committed to becoming a trusted LCD display solution partner for you.
FAQs:
1. Do you support free samples?
A: No, samples must be purchased at the retail price. When purchasing in bulk, the sample cost can be fully deducted from the corresponding payment. The sample delivery cycle is 1-2 working days.
2. How long is the cycle for customized complementary services (such as touch screen + bonding)?
A: If you choose the standard configuration of touch screen + bonding service, the order cycle is 7-10 working days; if you need a touch screen with customized special touch parameters, the cycle is 10-21 working days.
3. Is parameter customization supported?
A: Parameters such as interface type, brightness, and surface treatment can be customized. Customization requirements must meet a minimum order quantity of 500 units. Specific details can be discussed with us.
4. What is the after-sales guarantee for this product?
A: Provide 12 months full machine warranty (including LCD panel and supporting driver board). Non-human damage (such as panel failure, backlight not working) can enjoy free repair / replacement services; beyond the warranty period, provide lifetime cost-price maintenance services.
5. Is there a price discount for bulk purchases?
A: Bulk purchases (≥100 units) can enjoy a stepped price discount. The larger the purchase volume, the higher the discount. Specific quotations can be provided by contacting us.
