G121ACE-LH2

Wide temperature, 600cd/m² high brightness, WLED backlight, lifespan over 50,000 hours, with LED driver, 180-degree flip display, 6/8-bit grayscale options, matte surface, PSWG compatible.

Download PDF Send Message

Product Description

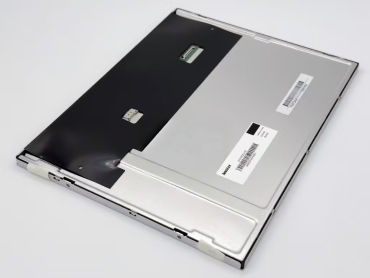

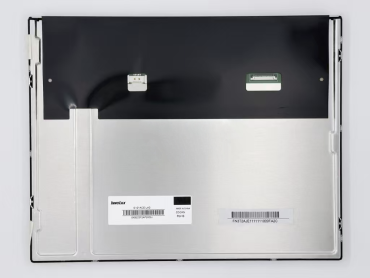

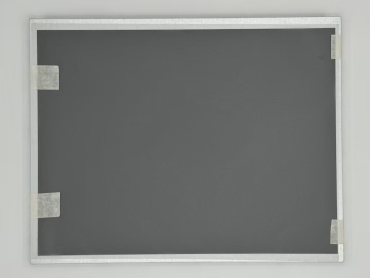

Innolux G121ACE-LH2 is an AAS wide-view 12.1-inch TFT-LCD display module specifically designed for industrial, medical and outdoor applications. It combines 600 cd/m² high brightness, an ultra-wide operating temperature range of -30°C to 85°C, an 88° full viewing angle, and a 1000:1 high contrast ratio. It is an ideal LCD TFT display solution for addressing industrial-level display challenges such as strong light, low temperatures, and multi-view observation.

If you fall into any of the following categories of customers, this LCD TFT panel is specifically designed for you:

♦ Industrial equipment manufacturer: The equipment must be clearly visible outdoors and in strong light.

♦ Medical equipment supplier: The equipment must be able to maintain high image quality.

♦ Special equipment developer: The equipment must operate stably in alternating environments of extreme cold and high heat.

It addresses four major core pain points for you:

• Unable to see clearly in strong outdoor light → 600 nits high brightness + matte anti-glare treatment.

• Short equipment lifespan and frequent maintenance → WLED backlight with 50,000-hour lifespan.

• Limited viewing angle, difficult for multiple people to collaborate → 88° full-angle view, clear at any angle.

• Low temperature prevents startup or LCD TFT panel goes black at high temperatures → -30°C to 85°C - Ultra-wide temperature range protection.

Basic Parameters

Panel Brand	Innolux	Panel Model	G121ACE-LH2
Panel Size	12.1-inch	Panel Type	a-Si TFT-LCD, LCD Module
Resolution	800(RGB)x600, SVGA, 82PPI	Pixel Layout	RGB vertical stripes
Display Area	246(W)x184.5(H) mm	Appearance Size	260.5(W)x204(H)x8.9(D) mm
Visual Area	249(W)x187.5(H) mm	Surface Treatment	Matte, Hard coating(3H)
Brightness	600 cd/m² (Typ.)	Contrast Ratio	1000:1(Typ.) (transmission)
Optical Viewing Angle	Full-view	Response Time	13/12 (Typ.) (Tr/Td) ms
Visual Angle	88/88/88/88 (Typ.) (CR≥10)	Display Mode	AAS, normally black display, transmissive
Display Color	262K/16.7M , 72% NTSC	Backlight	WLED,50K hours with LED driver
Weight	470/490g (Typ./ Max.)	Application	Industrial Engineering
Frame Frequency	60Hz	Touch Technology	No Touch Function
Interface	LVDS (1 ch, 6/8-bit), Connectors
Voltage Supply	5.0V (Typ.)
Environment Temperature	Operating temperature: -30~85 °C; Storage temperature: -30~85 °C

🚀 Innolux G121ACE-LH2 LCD TFT Display Panel Application Fields

🏭 Industrial Control and Automation
Outdoor HMI panels, construction machinery instruments, AGV scheduling screens, CNC machine control consoles, etc. 600 cd/m²high brightness suitable for outdoor terminals, wide temperature range supporting all-weather operation, lng lifespan reducing production line downtime.
🏥 Medical Imaging and Diagnostic Equipment
Mobile DR display units, ultrasound diagnostic screens, endoscope displays, operating room monitoring screens, etc. High contrast enhances image details, full viewing angle supporting multi-doctor consultations, wide temperature range adapting to temperature differences in operating rooms and storage environments.
☀️ Outdoor and Special Commercial Equipment
Gas station displays, self-service vending machine displays, vehicle dispatch terminals, etc. Anti-glare, high brightness, wide temperature range adapting to seasonal changes, 50,000-hour lifespan supporting 7×24 operation.
🔬 Testing and Measurement Instruments
Outdoor detectors, environmental monitoring screens, power instrument displays, military equipment interfaces, etc. Low-temperature startup ensures field operations, high reliability adapting to vibration environments, industrial interfaces facilitating integration.

Why Choose Us?

Zhengzhou Hengxinda Technology Co., Ltd. (HXD) is a professional 12-year supplier specializing in LCD displays--from development to production, from sales to service. We fully controls the entire chain independently and also possesses a 1,000-square-meter factory, laying a solid foundation for stable delivery and quality assurance. We provide the production, sales and after-sales services of various brand LCD displays (such as AUO, BOE, IVO,CHIMEI, Innolux, and Sharp etc.), and develops LCD control boards to expand functions and related cables, achieving integrated services of "hardware + functions + adaptation".

With 12 years of technical accumulation and market experience, we have served over a thousand customers from industry, medical, and commercial display. We are a cost-effective partner for the implementation of display equipment in various industries.

G121ACE-LH2

Product Description

• Low temperature prevents startup or LCD TFT panel goes black at high temperatures → -30°C to 85°C - Ultra-wide temperature range protection.

Basic Parameters

🚀 Innolux G121ACE-LH2 LCD TFT Display Panel Application Fields

Why Choose Us?

HXD Service

Contact us now!

Browsing History

Related Products

My Inquiry

Latest Important News

Hengxinda Completed High-Quality Custom Cables Shipping Services for Customers

Shipment of 17.3-Inch AUO G173HW01 V0 Industrial LCD Panels for Indoor HMI System Upgrades

AUO G121EAN01.3 Industrial LCD Panel Shipment for Outdoor Power Monitoring System Upgrade

Contact Us

download data sheet

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
Tianma	P1210XGF1MA01	12.1"	1024×768	800 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P1210XGF1MA00	12.1"	1024×768	1300 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P1210WXF2MA00	12.1"	1280×800	1500 nits	1000:1	WLED	LVDS	20	-30~85 ° C
Tianma	P1210WXF2MA01	12.1"	1280×800	1100 nits	1000:1	WLED	LVDS	20	-30~80 °C
Tianma	P1210XGF1MB00	12.1"	1024×768	500 nits	1000:1	WLED	LVDS	20	-30~80 °C
Innolux	G121XCE-L02	12.1"	1024×768	500 nits	1000:1	WLED	LVDS	20	-30~70℃
Innolux	G121XCE-P01	12.1"	1024×768		1000:1	No Backlight	LVDS	20	-30~85 ° C
Innolux	G121XCE-PM1	12.1"	1024×768		1000:1	No Backlight	LVDS		-30~75 ° C
Innolux	G121ACE-LH1	12.1"	800×600	450 nits	1000:1	WLED	LVDS	30	-30~85 ° C
Innolux	G121XCE-L01	12.1"	1024×768	600 nits	1000:1	WLED	LVDS	20	-30~85 ° C
