G121ACE-LH1

G121ACE-LH1

Wide temperature, WLED backlight, with a lifespan exceeding 50,000 hours, with LED driver, 180-degree flip display, 6/8-bit grayscale options, matte surface, PSWG compatible.

Download PDF Send Message

Product Description

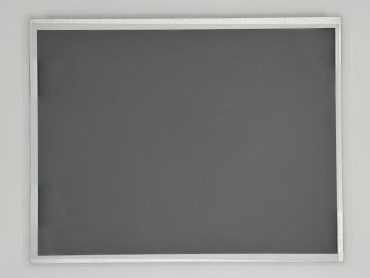

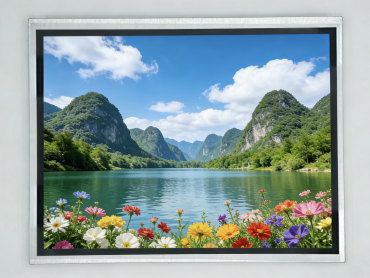

Innolux G121ACE-LH1 is a 12.1-inch AAS wide-view LCD TFT display module designed for professional fields such as industrial control, medical imaging, and outdoor terminals etc. With a brightness of 450 nits, an extremely wide operating temperature range of -30℃ to 85℃, an 89° full viewing angle, and a high contrast ratio of 1000:1, it is specifically developed to address the challenges of visibility, stability, and durability in extreme temperature variations.

If you are encountering the following display problems, this is the solution for you:

❌ In industrial settings, frequent vibrations and scratches make the screen prone to damage.

❌ The device has difficulty starting or displays abnormally in extremely cold or hot environments.

❌ When working in collaboration with others, the inconsistent viewing of content is caused by limited viewing angles.

❌ The equipment needs to operate stably for an extended period, but the display components are not durable enough.





Basic Parameters

Panel Brand Innolux Panel Model G121ACE-LH1
Panel Size 12.1-inch Panel Type a-Si TFT-LCD, LCD Module
Resolution 800(RGB)x600, SVGA, 82PPI Pixel Layout RGB vertical stripes
Display Area 246(W)x184.5(H) mm Appearance Size 260.5(W)x204(H)x8.9(D) mm
Viewable Area 249(W)x187.5(H) mm Surface Treatment Matte, Hard coating(3H)
Brightness 450 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM)
Visual Angle 89/89/89/89 (Typ.) (CR≥10) Optical Pattern AAS, normally black display, transmissive
Viewing Direction Full-view Reaction Time 13/12 (Typ.) (Tr/Td) ms
Display Color 262K/16.7M , 72% NTSC Backlight WLED,50K hours with LED driver
Working Frequency 60Hz Touch Screen No
Weight 470/490g (Typ./ Max.) Application Industrial Engineering
Interface LVDS (1 ch, 6/8-bit) , 30 pins , Connectors
Driving Voltage 5.0V (Typ.)
Environment Temperature Working temperature: -30 °C to 85 ° C; Storage temperature: -30 °C to 85 ° C

Innolux G121ACE-LH1 Optical Details

Basic Information

Brightness (cd/m2)

450

Contrast Ratio

1000:1 (Transmission)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Optical Mode

AAS, Normally Black, Transmissive

Viewing Direction

Full-view

Response Time

13/12 (Typ.)(Tr/Td) (ms)

Color Performance

Chromaticity

Wx:0.313; Wy:0.329

Color Numbers

262K/16.7M (6-bit/ 8-bit)

Color Temperature

6485K

Uniformity

1.25/1.43 (Typ./Max.)(9 points)

1931 Color Gamut

NTSC Ratio

72%

sRGB

94%

Adobe RGB

73%

DCI-P3

74%

REC.2020

54%

REmarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

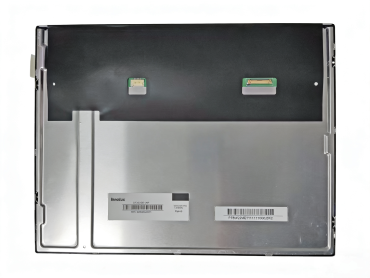

Innolux G121ACE-LH1 Interface Details

Signal Electrical

Current Input

88/106mA (Typ./Max.)

Voltage Input

5.0V (Typ.)

Consumption

-W (Max.)

Signal System

LVDS (1 ch, 6/8-bit)

Interface Features

Position

Back

Type

Connector

Connector Detail

Brand

Model

Amount

Pin Pitch

Pins

I-PEX

20455-030E-76

1pcs

0.5 mm

30 pins



Innolux G121ACE-LH1 Backlight Details

Back-light Features



Lamp Type

WLED

Replacement

-

Position

Edge Light type

Amount

-

Lamp Shape

-

Life Time

50K (Min.) hours

Interface Features

Position

-

Type

Connector

Interface Detail

Brand

Model

Amount

Pin Pitch

Pins

CviLux

CI4205M2HRP-NH

1 pcs

1.25 mm

5 pins

Driver Electrical

with LED Driver

Driver Electrical

Current Input

12.0±1.2V

Voltage Input

0.6±0.2A



Consumption

7.2 W (Typ.)



Why Choose Us?

  • Industrial Control
    Industrial Control

    LCD TFT displays, as the "core of data visualization" in industrial scenarios, are compatible with inspection tablets, workshop consoles, and logistics dispatch displays in extreme environments, displaying equipment faults, production line parameters, and cargo information in real time. Wide viewing angle supports collaborative viewing by multiple people. And ultra-wide temperature tolerance and long lifespan meet the long-term stable operation needs of industrial equipment, significantly reducing maintenance costs.

  • Medical Imaging
    Medical Imaging

    LCD TFT displays, as the information presentation carrier for medical equipment, are adapted to outdoor emergency devices and laboratory testing instruments, accurately displaying patients' vital signs and experimental data curves. High color gamut and contrast ensure detailed reproduction of medical images, while wide temperature tolerance suits special environments like ambulances and high/low-temperature laboratories. The lightweight design also facilitates the mobile use of portable medical devices.

  • Commercial Terminals
    Commercial Terminals

    LCD TFT displays, as the interaction portal for commercial terminals, are used in outdoor government self-service kiosks, high-temperature business district checkout screens, etc., to display interfaces like social security inquiries and settlement information. The wide viewing angle accommodates users of different heights during operation, and the high-brightness design ensures clear display even in strong light. Their compact size and easy integration allow flexible embedding into various self-service terminals, improving service efficiency.

Zhengzhou Hengxinda Technology Co., Ltd. (HXD) is a professional 12-year supplier specializing in LCD TFT displays--from development to production, from sales to service. We provide the production, sales and after-sales services of various brand LCD displays (such as AUO, BOE, IVO,CHIMEI, Innolux, and Sharp etc.), and develops LCD controller boards to expand functions and related cables, achieving integrated services of "hardware + functions + adaptation".

With 12 years of technical accumulation and market experience, we have served over a thousand customers from industry, medical, and commercial display. We are a cost-effective partner for the implementation of display equipment in various industries.




FAQs:
Q1. Can I get a sample order first?
A: Yes, we welcome customers to place a sample order for testing and quality inspection. Mixed samples of different product numbers are also acceptable. However, we do not offer free samples. If you have a bulk demand in the future, we will apply for a discount for you.

Q2. What is the delivery time?
A: The inventory quantity of each product varies. For details, please consult our sales manager. For inventory products, sample samples will be provided immediately. For custom-designed products, sample production takes 10-20 days; after the sample approval, large-scale production will take 20-30 days.

Q3. Do you have any minimum order quantity restrictions for sample orders?
A: The minimum order quantity is low. The sample testing can provide a minimum order quantity of 1 piece.

Q4. How do you transport these goods?
A: You can choose to transport them via DHL, UPS, FedEx or TNT. The goods will be delivered within 5 to 7 days. Additionally, you can choose air transportation or sea transportation.

Q5: How do I place an order for the LCD TFT display module?
A: First, please explain your requirements or application content to us. Second, we will quote based on your requirements or our suggestions. Third, the customer confirms the sample and pays the deposit to officially place the order. Fourth, we arrange production.

Q6: Do you provide warranty services for the products?
A: Yes, we provide one-year warranty services for the products.
