G104XVN01.0

Matte Surface, 180-degree Display, White LED Backlight, Wide Temperature Range, 6/8-bit Grayscale Optional, Integrated LED Driver, Lifespan ＞ 50,000 hours

Download PDF Send Message

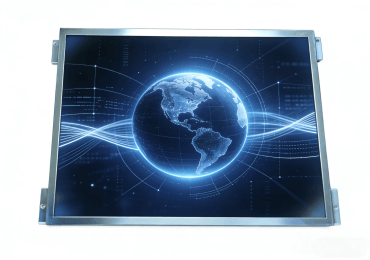

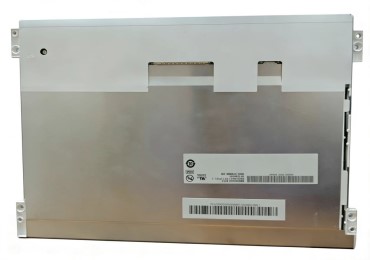

10.4" 1024 × 768 XGA Industrial 4:3 TFT LCD Panel AUO G104XVN01.0 China Factory Direct

AUO G104XVN01.0 is an original 10.4-inch PSA LCD TFT display designed for industrial HMIs, factory automation control panels, medical equipment, POS machines, and industrial control instruments. G104XVN01.0 is a classic mid-sized mainstream industrial control module with 470 nit brightness, and matte with hard-coating design. AUO G104XVN01.0 1024 (RGB) × 768 XGA Panel, and combined with the option of 6/8-bit grayscale, it can not only provide clear display for basic monitoring, but also present the delicate details of industrial inspection and medical data. Designed with industrial-grade reliability as the core, this screen supports a wide temperature range of -30°C to 80°C. It is widely used in industrial control, medical monitoring equipment, and vehicle terminals, etc. Its compact size, built-in LCD control board, and LVDS signal interface provide system integrators and distributors with flexible and cost-effective installation adaptation solutions.

Basic Parameters

Panel Brand	AUO	Panel Model	G104XVN01.0
Panel Size	10.4 inches	Panel Type	a-Si TFT-LCD, LCD module
Resolution	1024(RGB)x768, XGA, 123PPI	Pixel Layout	RGB vertical stripe
Display Area	210.4(W)x157.8(H)mm	Appearance Size	238.6(W)x175.8(H)x7(D)mm
Viewable Area	215.4(W)x161.8(H)mm	Surface Treatment	Matt, Hard coating(3H)
Panel Brightness	470 cd/m²(Typ.)	Contrast	3000:1(Typ.)(TM)
Viewing Angle	89/89/89/89(Typ.)(CR≥10)	Operating Mode	PSA, Normally Black Display, Transmissive
Viewing Direction	Full View	Response Time	20/10(Typ.)(Tr/Td) ms
Display Color	262K/16.2M, 60% NTSC	Light Source Type	2 strings WLED, 50K hours, including LED driver
Operating Frequency	60Hz	Touch Screen	No Touch
Panel Weight	295g(Typ.)	Panel Application	Industrial Control
Signal Interface	LVDS(1 ch, 6/8-bit), 30 pins, connector
Drive Screen Voltage	3.3V(Typ.)
Operating Environment	Operating: -30~80℃; Storage: -30~80℃

AUO G104XVN01.0 Key Features

1.Matte surface: the reflection of strong environmental light.

2.180-degree flip display: multi-directional installation such as upside-down or side-mounted.

3. 6/8-bit grayscale: the display requirements of ordinary and high-precision detection equipment.

4.Wide temperature operation: extreme environmental conditions such as high and low temperature environment.

5.The lifespan ≥ 50,000 hours and white LED backlight: the maintenance cost and ensures "7×24-hour operation".

10.4-inch 470 nit brightness LCD Displays Applications

1. Portable terminals: POS machine etc.

2. Commercial display: Smart vending machines etc.

3. Medical emergency terminals: Emergency monitoring equipment etc.

4. Industrial inspection terminals: Geological, power and oilfield inspection instrument etc.

5. Automotive industry: Car control screen, logistics monitoring screen, bus / subway / airplane information screen etc.

Why Partner with HXD for LCD TFT Displays?

Zhengzhou Hengxinda Technology Co., Ltd. (HXD) is a professional 12-year supplier specializing in LCD displays—from development to production, from sales to service. We fully control the entire chain independently and also possess a 1,000-square-meter factory, laying a solid foundation for stable delivery and quality assurance.

As a G104XVN01.0 LCD panel OEM supplier, we provide high-quality industrial display solutions tailored to customer specifications. Our product lineup includes the AUO G104XVN01.0 industrial display supplier series, widely used in industrial control, medical equipment, and commercial terminals. We offer AUO G104XVN01.0 industrial LCD module bulk supply with competitive pricing, making us a trusted AUO G104XVN01.0 module supplier low MOQ partner for both small startups and large manufacturers.

For clients seeking cost-effective procurement, we provide AUO G104XVN01.0 wholesale price from China factory directly, eliminating middlemen and ensuring the best value. Our 10.4 inch AUO G104XVN01.0 bulk buy wholesale service supports volume orders with flexible delivery options. As a professional G104XVN01.0 TFT LCD module wholesale China supplier, we also offer matching LCD control boards, touch screens, and related cables, achieving integrated services of "hardware + functions + adaptation."

If you are looking for a reliable AUO G104XVN01.0 wholesale distributor or need cheap bulk AUO G104XVN01.0 China exporter services, we are your ideal partner. Contact us today for AUO G104XVN01.0 XGA module wholesale quote and let us support your display needs with quality and expertise.

With 12 years of technical accumulation and market experience, we have served over a thousand customers from industry, medical, and commercial display sectors. We are a cost-effective partner for the implementation of display equipment in various industries.
