Matte Surface, 180-degree Display, White LED Backlight, Wide Temperature Range, 6/8-bit Grayscale Optional, Integrated LED Control Board, Lifespan exceeding 50,000 hours

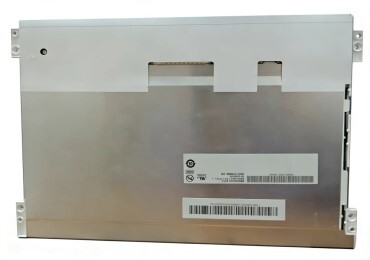

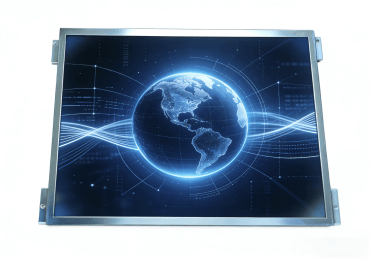

AUO G104XVN01.0 is a 10.4-inch PSA LCD TFT display designed for industrial, medical and vehicle/outdoor terminal applications. Its brightness is 470 nits, and matte with hard-coating design ensures clear display even in high-brightness environments. It features a 1024 (RGB) × 768 XGA resolution, with a full-view (89/89/89/89) display characteristic. Combined with the option of 6/8-bit grayscale, it can not only provide clear display for basic monitoring, but also present the delicate details of industrial inspection and medical data. Designed with industrial-grade reliability as the core, this screen supports a wide temperature range of -30°C to 80°C. It is widely used in industrial control, medical monitoring equipment, and vehicle terminals, etc. Its compact size, built-in LCD control board, and LVDS signal interface provide system integrators and distributors with flexible and cost-effective installation adaptation solutions.
| Panel Brand | AUO | Panel Model | G104XVN01.0 |
| Panel Size | 10.4 inches | Panel Type | a-Si TFT-LCD, LCD module |
| Resolution | 1024(RGB)x768, XGA, 123PPI | Pixel Layout | RGB vertical stripe |
| Display Area | 210.4(W)x157.8(H)mm | Appearance Size | 238.6(W)x175.8(H)x7(D)mm |
| Viewable Area | 215.4(W)x161.8(H)mm | Surface Treatment | Matt, Hard coating(3H) |
| Panel Brightness | 470 cd/m²(Typ.) | Contrast | 3000:1(Typ.)(TM) |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Operating Mode | PSA, Normally Black Display, Transmissive |
| Viewing Direction | Full View | Response Time | 20/10(Typ.)(Tr/Td) ms |
| Display Color | 262K/16.2M, 60% NTSC | Light Source Type | 2 strings WLED, 50K hours, including LED driver |
| Operating Frequency | 60Hz | Touch Screen | No Touch |
| Panel Weight | 295g(Typ.) | Panel Application | Industrial Control |
| Signal Interface | LVDS(1 ch, 6/8-bit), 30 pins, connector | ||
| Drive Screen Voltage | 3.3V(Typ.) | ||
| Operating Environment | Operating: -30~80℃; Storage: -30~80℃ | ||
1.Matte surface: the reflection of strong environmental light.

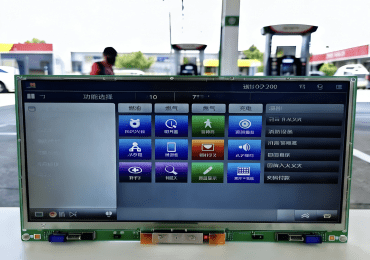

2.180-degree flip display: multi-directional installation such as upside-down or side-mounted.
3. 6/8-bit grayscale: the display requirements of ordinary and high-precision detection equipment.

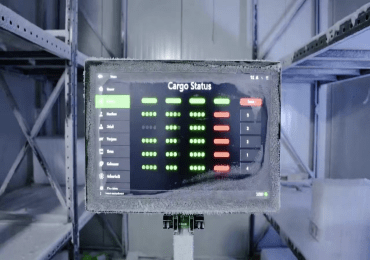

4.Wide temperature: extreme environmental conditions such as high and low temperature environment.
5.The lifespan over 50,000 hours and white LED backlight: the maintenance cost and ensures "7×24-hour operation".
1. Portable terminals: POS machine etc..
2. Commercial display: Smart vending machines etc..
3. Medical emergency terminals: Emergency monitoring equipment etc..
4. Industrial inspection terminals: Geological, power and oilfield inspection instrument etc..
5. Automotive industry: Car control screen, logistics monitoring screen, bus / subway / airplane information screen etc..
Zhengzhou Hengxinda Technology Co., Ltd. (HXD) is a professional 12-year supplier specializing in LCD displays--from development to production, from sales to service. We fully controls the entire chain independently and also possesses a 1,000-square-meter factory, laying a solid foundation for stable delivery and quality assurance. We provide the production, sales and after-sales services of various brand LCD displays (such as AUO, BOE, IVO,CHIMEI, Innolux, and Sharp etc.), and develops LCD control boards to expand functions and related cables, achieving integrated services of "hardware + functions + adaptation".
With 12 years of technical accumulation and market experience, we have served over a thousand customers from industry, medical, and commercial display. We are a cost-effective partner for the implementation of display equipment in various industries.
1. Ultra-fast Delivery: 3-7 days for sample production.
2. After-sales Service: free technical documents and 24/7 technical support.
3. Full Process Support: free quotations based on your requirements and one-stop shopping for OEM/ODM.
4. Customized LCD Display Solution: customize brightness (peak 3000 nit), contrast, resolution, shape, size and interface etc..
