G104VN01 V1

G104VN01 V1

Wide temperature, easy replacement of backlight, white LED backlight, lifespan over 50,000 hours, includes LED driver, 180-degree flip display, 6/8-bit grayscale options, matte surface.

Download PDF Send Message

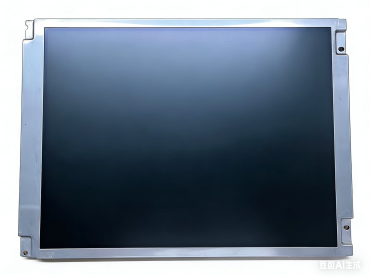

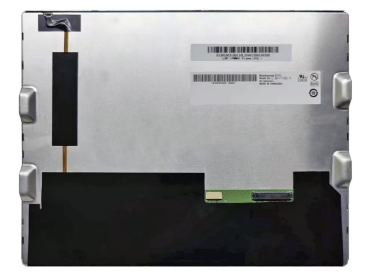

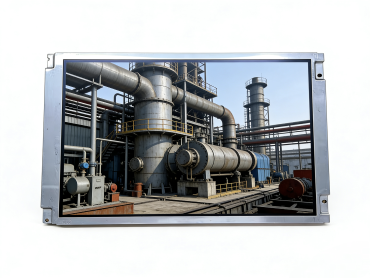

AUO G104VN01 V1

AUO G104VN01 V1 is a 10.4-inch industrial-grade LCD TFT display module. With a viewing angle of 80/80/60/80°, it meets the requirements of one-person operation + multi-person collaborative viewing in industrial scenarios; equipped with 640×480 resolution can precisely display data, instructions, etc.; with an ultra-wide working temperature range of -30~85℃ and a matte Hard coating anti-scratch design, it can operate stably in high and low temperature, dusty industrial sites; weighing 350g and with a compact size of 243mm, it can be easily integrated into various small and medium-sized devices, balancing display flexibility and environmental durability.



Basic Parameter

Brand AUO Model G104VN01 V1
Size 10.4 inch Type a-Si TFT-LCD, LCD Module
Resolution 640(RGB)×480, VGA, 76PPI Pixel Layout RGB vertical stripes
Display Area 211.2(W)×158.4(H) mm Appearance Size 243(W)×176.6(H)×8.5(D) mm
Brightness 450 cd/m² (Typ.) Contrast 700:1 (Typ.) (TM)
Visual Angle 80/80/60/80 (Typ.) (CR≥10)  Surface Treatment Matte, Hard coating (3H)
Display Colors 262K/16.2M , 45% NTSC Optical Mode TN, normally white display, transmissive
Weight 350g (Typ.) Response Time 20/10 (Typ.) (Tr/Td)
Best Visual Angle 6 o'clock Backlight 8S2P WLED , 50K hours, with LED driver
Working Frequency 60Hz   Application Industrial engineering
Interface LVDS (1 ch, 6/8-bit), 20 pins, Connector Touch Function No
Driving Voltage 3.3V (Typ.)
Application Environment Operating temperature: -30 ~85 °C ; Storage temperature: -30 ~85 °C

AUO G104VN01 V1 TFT LCD Panel Key Features

Wide-view Flexible Display: 80/80/60/80° viewing angle (CR≥10), covers front and partial side views, ideal for single-operator and temporary collaborative viewing.

Industrial-grade Environmental Resistance: Operating temperature -30~85℃, stable in industrial/outdoor environments with temperature and humidity fluctuations.

Easy-integration Design: Lightweight 350g + compact size 243×176.6×8.5mm, fits space and load limits of small and medium-sized equipment.

Long-life Backlight: 50K-hour WLED backlight lifespan, reduces maintenance frequency and costs for industrial equipment.



AUO G104VN01 V1 TFT LCD Panel Application Scenarios

Industrial Vehicle Sector: Industrial forklift status display, logistics delivery vehicle dispatch display.

Industrial Control Sector: Workstation console display, portable industrial control detector, small workshop control cabinet display.

Medical Equipment Sector: Outpatient self-service registration terminal display, portable ECG monitor display, small laboratory testing equipment display.

Commercial Service Sector: Community government self-service terminal display, convenience store self-checkout terminal display, campus visitor self-registration terminal display.

HXD Services

1. Flexible Customization Service
Support personalized adjustments to the core parameters of LCD tft screen, covering dimensions, shape, brightness, interfaces, resolution, etc., to meet the requirements of your terminal products.
2. Precise Demand Matching
Based on the scene of your terminal product and combining your core demands, we will precisely recommend LCD tft panel models that are suitable for you.
3. "One-stop Shopping"
In addition to LCD tft displays, we also supply LCD AD boards, LCD touch screens, light sensors, adapter plate and  cables, and other complete related accessories.
4. Reliable Shopping Transportation
Can provide door-to-door shipping services, supporting various transportation ways such as air freight, sea freight, and express, and allowing you to flexibly choose according to your delivery time requirements; standard model LCD tft displays products are sent within 48 hours to 7 days, while customized products are sent within 7 to 20 days.
5. Product Quality Assurance
Before each batch of LCD tft panels is sent, aging tests, lifespan tests, and environmental adaptability tests are completed.
6. Reliable After-sales Service
Warranty Guarantee: Provide 1-year warranty. LCD tft panels that are not damaged by human factors within the warranty period can be replaced or repaired free of charge.



FAQs:

1. Do you support customization services for these original LCD panels?
A: We can provide touch screen customized service for these original LCDs, but it has different tooling fee, which includes Touch interface, Cover Glass (silkscreen, AG/AR/AF coatings), Optical Bonding Services, etc.
2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 2-3 weeks.
3. What Express do you use to deliver the samples?
A: You can choose the shipment method you prefer to, such as FedEx, DHL, EMS, or your shipping agent.
4. How long is the product warranty?
A: Besides damage caused by human factors, within one year warranty from the start of shipping. If there are special conditions, the warranty time will be separately notified.
