Wide temperature range, white LED backlight, lifespan >50,000 hours, integrated LED driver, 180° flip display, 6/8-bit grayscale selectable, matte surface.

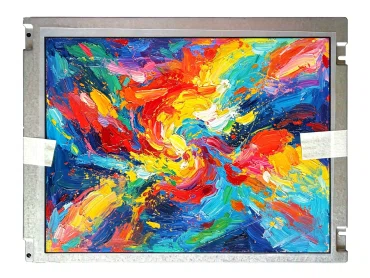

Innolux G104AGE-L02 is a 10.4-inch a-Si industrial TFT-LCD display panel. It is equipped with a WLED backlight and a built-in LED backlight driver but no touch function. Featuring a classic 4:3 aspect ratio, G104AGE-L02 can be used across a wide variety of equipment and scenarios. It delivers a display resolution of 800(RGB)×600 (SVGA), adopting an RGB vertical stripe arrangement to present clear and precise visual data. The surface treatment employs a matte, hard-coating protection (3H) process, which not only effectively diffuses harsh workshop environment light but also prevents daily superficial scratching.
In terms of backlight, G104AGE-L02 adopts a WLED backlight with an operating lifespan of ≥50,000 hours. It operates with ultra-low power consumption, featuring a total power consumption of only 4.35W. For electrical signal, it uses a standard LVDS (1 ch, 6/8-bit) 20-pin terminal interface with a driving voltage of 3.3V. Engineered specifically for harsh industrial environments, G104AGE-L02 supports an ultra-wide operating and storage temperature range of -30 to 85°C. Based on its outstanding wide-temperature tolerance, long backlight lifespan, and highly reliable LVDS signal transmission, G104AGE-L02 is widely applied in industrial display devices, medical display equipment, portable smart instrumentation, power and energy displays, as well as the automotive and rail transit industries.
Brand
Innolux
Type
a-Si TFT-LCD, LCM
Model
G104AGE-L02
Surface Finish
Matte, Hard Coating (3H)
Size (inch)
10.4-inch
Pixel Layout
RGB Vertical Strip
Outline Dimension
243×184×8.5 mm
Optical Mode
TN, Normally White Display, TM
Active Area
211.2(H)×158.4(V) mm
Backlight Type
WLED, 50K hours, with LED driver
Visual Area
214.8×162.7 mm (H×V)
Interface
LVDS (1 ch, 6/8-bit), 20 pins , Connector
Optimal Visual Angle
/
Viewing Angle
80/80/70/70 (Typ.)(CR≥10
Resolution
800(RGB)×600, SVGA, 4:3
Response Time
5/11 (Typ.)(Tr/Td)
Brightness (cd/m²)
400
Display Colors
262K/16.2M, 53% NTSC
Contrast Ratio
700 : 1 (Typ.) (TM)
Operating Temperature (°C )
-30 ~ 85
Operating Voltage
3.3V (Typ.)
Storage Temperature (°C )
Operating Frequency
60Hz
Touch Function
No
Power Consumption
4.35W (Typ.)
Weight
505/540g (Typ./Max.)
Application
Industrial Control
Production State
Out of Production
As a supplier and manufacturer with 15 years of experience in the TFT LCD display industry, Hengxinda has always adhered to the original principle of quality. With stable product performance and professional technical strength, we had become a long-term LCD display supplier specializing in brands such as AUO, BOE, IVO, Innolux, CHEMEI, and Sharp. We can provide one-stop solutions for LCD Display Kits, and professionally offer bonding services for LCD screens and touch screens; relying on our own R&D production capabilities, we create supporting products such as LCD driver boards, touch screens, LED driver boards, and cables, meeting the diverse application needs of customers.
√ offering free quotation services to enable customers to clearly understand the cost budget.
√ supporting OEM/ODM customization services tailored to specific customer requirements.
√ providing free product technical materials to help customers quickly familiarize themselves with product applications.
Quick response, meticulous protection! Welcome to contact us!
A: Yes, we have a stable and reliable inventory of the original Innolux G104AGE-L02 in our warehouse. We closely monitor market demands for legacy panels to ensure our automation and medical manufacturing clients can secure immediate replacement stock without line stoppages.
A: Lead Time: For in-stock items, products are typically dispatched within 1 to 7 working days after payment confirmation.
Shipping Methods: We ship worldwide via major express couriers including DHL, FedEx, and UPS to ensure fast and secure door-to-door delivery. Air freight and sea freight options are also available for bulk wholesale orders.
A: Every single G104AGE-L02 panel undergoes a strict quality control inspection and complete display testing (brightness, color uniformity, and interface signaling) by our engineering team before packaging. We provide a 12-month warranty starting from the date of delivery. If any non-artificial technical issues occur within the warranty period, we offer replacement or repair support.
A: Industrial LCD panel price can fluctuate based on current market availability, batch quantities, and stock levels. To get an accurate, up-to-date quote, please click our Inquire Now or send an email directly to our sales team. We offer competitive price.
A: We use specialized, heavy-duty industrial packaging designed specifically for fragile electronics. Each LCD display panel is wrapped in an anti-static bag, cushioned with tailored shock-absorbing foam slots, and sealed inside rigid, multi-layered corrugated export cartons. For bulk shipments, palletizing and wooden crate reinforcement are applied to guarantee zero-damage transit.
A: Absolutely. We are a one-stop industrial display solution provider. We can supply fully compatible custom accessories for the G104AGE-L02, including:
• 4-wire or 5-wire resistive touch panels or multi-touch capacitive touch screens.
• Industrial-grade LCD driver boards with HDMI/VGA inputs configured for 3.3V LVDS 20-pin signal.
• Customcables to fit your precise HMI enclosure layout.
