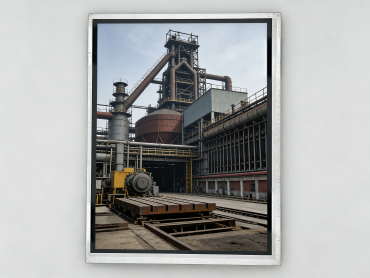

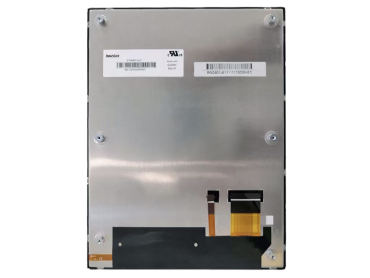

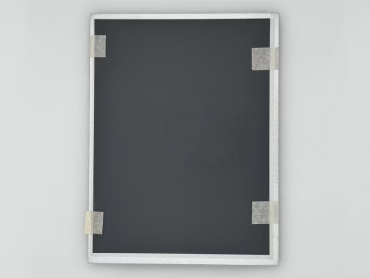

G104ACJ-L01

Portrait mode, wide temperature range, 900cd/m²high brightness, WLED backlight, lifespan over 50,000 hours, 180-degree flip display, matte surface.

Download PDF Send Message

Designed for Harsh Environments, 900 Nits Brightness, Wide-Temperature Reliability

If you are looking for a LCD TFT display panel that can operate reliably under strong light, extreme temperatures, and demanding industrial environments, Innolux G104AC1-L01 is not just a LCD TFT display panel—it is a solid foundation for stable operation and clear interaction for your equipment.

Core Product Value:

Innolux G104AC1-L01 is a true industrial-grade LCD TFT display panel that integrates high brightness (900 cd/m²), an ultra-wide operating temperature range (-40°C ~ 85°C), a rugged structure, and long-life backlighting to ensure that your equipment provides a clear, stable, and durable visual interface whether in the desert sun or icy conditions.

If your project faces the following challenges, please read on:

Equipment needs to be used outdoors or in high-light environments
The operating environment has large temperature variations or requires cold-start capability
Stringent requirements for long-term stability and lifespan of the equipment
A LCD TFT panel is needed that can withstand vibration and shock

Basic Parameter

Panel Brand	Innolux	Panel Model	G104ACJ-L01
Panel Size	10.4-inch	Panel Type	a-Si TFT-LCD, LCD Module
Resolution	960(RGB)x1280,Quad-VGA,153PPI	Pixel Layout	RGB vertical stripe
Display Area	158.4(W)x211.2(H) mm	Outline Dimensions	173.4(W)x228.7(H)x14.27(D) mm
Opening Size	160.6(W)x213.9(H) mm	Surface Treatment	Matte, Hard coating(3H)
Brightness	900 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (TM)
Visual Angle	85/85/85/85 (Typ.) (CR≥10)	Optical Mode	AAS, normally black display, transmissive
Optimal Viewing Angle	Full-view	Reaction Time	13/12 (Typ.) (Tr/Td)
Display Color	16.7M,73% NTSC	Backlight	3 strings WLED,50K hours, without driver
Refresh Frequency	60Hz	Touch Screen	No
Weight	435/452g (Typ./ Max.)	Application	Industrial Control/Outdoor Highlight Scenarios
Signal Interface	LVDS(1 ch,8-bit), 50 pins, connetors
Driving Voltage	3.3V (Typ.)
Environment Temperature	Working temperature: -40 °C to 85 ° C; Storage temperature: -40 °C to 90 ° C

Core Product Highlights (Why Choose the G104AC1-L01?)

1. The typical brightness of 900 cd/m² is more than three times that of ordinary industrial screens (~250-300 nits). Even in the midday sunlight, the content remains clearly readable.
2. Long-life backlight: The WLED backlight system is designed to have a lifespan of up to 50,000 hours, far exceeding that of ordinary backlights (typically 15,000 hours), significantly reducing maintenance costs and downtime risks.
3. Wide viewing angle AAS technology: 85°/85°/85°/85° full viewing angle, ensuring consistent color and brightness from all angles, suitable for multiple viewers or inclined installation.
4. Stable interface: Adopting the mature and reliable LVDS interface (50 pins), with strong anti-interference ability, stable transmission, and compatibility with mainstream industrial motherboards.

Typical Application Areas

Innolux G104ACJ-L01 LCD TFT display panel is an ideal choice for the following sectors:

Outdoor Terminal Equipment: Self-service ticket machines, outdoor information kiosks, parcel lockers, charging stations.

Transportation: Vehicle navigation/monitoring systems, construction machinery dashboards, forklift terminals, marine equipment.

Industrial Automation: Factory PLC control panels, HMI interfaces, test and measurement equipment, CNC machine tools.

Energy & Power: Power dispatch systems, substation monitoring, outdoor control equipment for oil and gas fields.

HXD Services

HXD is a professional supplier of LCD tft display moudles, providing brands such as AUO/BOE/IVO/Sharp/ Innolux etc. And we have our own factory to provide relevant accessories including LCD control board, touch screen, light sensor, adapter plate, cable etc. and important components. For all products, we can provide the following services:

1. Flexible Customization Service

Supports personalized adjustments of the core parameters of LCD tft panel, covering size (3"-32"), shape, brightness (up to 25oo nits), interfaces, resolution and other aspects, to meet the differentiated requirements of your terminal products.

2. "One-stop Shopping" Experience

In addition to the LCD tft display, we also supply a complete set of related accessories such as LCD driver boards, LCD touch screens, light sensors, and adapter cables.

3. Product Quality Assurance

Before each batch of LCD tft screens is shipped, aging tests, lifespan tests, and environmental adaptability tests are completed.

4. Reliable After-sales Service

Provide 1-year official warranty. that are not damaged by human factors during the warranty period can be replaced or repaired free of charge.

Welcome to contact us 📧 & ☎️ now!

FAQs:

Q1: How does 900 nits brightness compare to regular displays?

A: Standard industrial displays typically offer 250-300 nits. Our 900 nits display provides 3x higher visibility, making content crystal clear even under direct sunlight - perfect for outdoor kiosks, construction equipment, and transportation systems.

Q2: What's the real benefit of -40°C to 85°C temperature range?

A: This means your equipment can operate reliably in extreme conditions:

Cold environments: Parking payment systems in winter, freezer room displays, Arctic research equipment

Hot environments: Factory floors, vehicle dashboards in summer, desert installations

Most displays fail below 0°C or above 50°C -- ours keeps working.

Q3: Is 1000:1 contrast ratio sufficient for industrial use?

A: Absolutely! Compared to typical 500-700:1 ratios, our 1000:1 contrast delivers sharper text and clearer graphics - crucial for safety warnings, equipment status indicators, and complex data visualization in control rooms.

Q4: Do you support the bonding of touch screens and LCD TFT panel?

A: Yes. We can offer optional infrared, capacitive, and resistive touch screens, and also provide full-bonding/frame-bonding services to enhance the integration and protection level of the entire device.

Q5: What is the minimum order quantity?

A: The minimum order quantity for the standard model is 1 piece. For custom orders, small batch trial production orders can start from 10 pieces. We can provide complete technical support and related services for trial production orders.

Q6: Are there accompanying driver boards, cables and touch screens provided?

A: Yes. We can offer a complete solution package, including driver boards, cables, touch screens and internal components. We can also provide customized accessory services based on the overall structure of the customer's machine.
