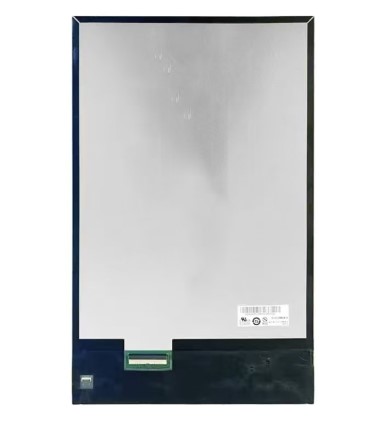

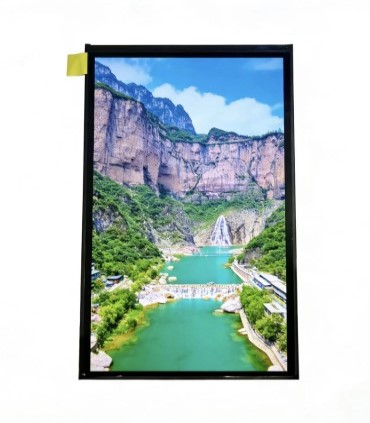

G101UAN04.0

G101UAN04.0

Portrait Mode Support, White LED Backlight, Mirror Surface.

Download PDF Send Message

10.1" 1200x1920 WUXGA 225PPI High-Definition LCD Display | AUO G101UAN04.0

AUO G101UAN04.0 is a 10.1-inch ultra-high-definition industrial LCD module that brings smartphone-grade pixel density to professional applications—delivering stunning clarity that reveals every detail your content has to offer. At the heart of AUO G101UAN04.0 lies its most remarkable feature: 225 pixels per inch (PPI) . It packs 50% more pixels into every inch of screen real estate , resulting in text that looks like it's printed, images that reveal details other screens miss, and interfaces that feel premium and modern.

1200×1920 WUXGA resolution in portrait orientation is specifically optimized for applications that display vertical content—documents, lists, schematics, and medical images. At just 5.36mm thin and 167g light , the LCD display is engineered for portable and handheld applications. Whether you're building a tablet-style interface or a device designed for reading and reviewing, this format maximizes usable screen space. When you choose the AUO G101UAN04.0, you're choosing a display that transforms how users experience your equipment—from "functional" to "exceptional."




AUO G101UAN04.0 Basic Parameters

Panel Brand AUO Panel Model G101UAN04.0
Panel Size 10.1 inch Panel Type a-Si TFT-LCD,LCD Module
Resolution 1200(RGB)×1920, WUXGA, 225PPI Pixel Layout RGB vertical stripes
Display Area 135.36(W)×216.58(H) mm Appearance Size 142(W)×228.55(H)×5.36(D) mm
Brightness(cd/m²) 500 cd/m² (Typ.) Contrast Ratio 900:1 (Typ.) (transmission)
Visual Angle 89/89/89/89 (Typ.) (CR≥10)  Surface Treatment Mirror (Haze 0%)
Display Colors 16.7M , 70% NTSC Backlight WLED , 15K hours, no drive
Panel Weight 167g (Max.) Response Time 30 (Typ.) (Tr+Td) ms
Optimal Visual Angle Full-view Optical Mode AHVA, normally black display, transmissive
Working Frequency 60Hz   Application Industrial Engineering
Interface 40 pins, MIPI (4 data lanes) , Connectors Touch Function No
Driving Voltage 3.3V (Typ.)
Application Environment Operating Temperature: -20 ~70 °C ; Storage Temperature: -30 ~80 °C

Why 225 PPI Matters

Comparison

Standard 10.1" LCD Panel

G101UAN04.0

Benefit

Pixel Density

~150 PPI

225 PPI

Text appears smooth, not pixelated

Detail Visibility

Basic

Exceptional

See fine details in schematics and images

User Experience

Functional

Premium

Your equipment feels modern and high-end

Reading Comfort

Acceptable

Superior

Less eye strain during extended use

AUO G101UAN04.0 Application Scenarios & End Products

♠ Medical & Healthcare Devices

Terminals: Portable diagnostic tools, handheld patient monitors, medical tablets, ultrasound viewers etc.

AUO G101UAN04.0 225 PPI delivers exceptional clarity, revealing details that lower-resolution screens simply cannot show.

♠ Industrial Portable Terminals

Terminals: Field service tablets, equipment diagnostic tools, maintenance terminals, inspection devices, portable HMI etc.

The combination of 225 PPI clarity and 500 nits brightness means they can see every wire label, every part number, every instruction.

♠ Transportation & Logistics

Terminals: Delivery driver terminals, warehouse handheld scanners, fleet management tablets, vehicle-mounted displays, logistics coordination devices etc.

The portrait-oriented WUXGA resolution is perfect for lists and forms, showing more information without scrolling.

♠ Commercial Terminals

Terminals: POS systems, guest check-in tablets, interactive directories, menu displays, room control panels etc.

AUO G101UAN04.0 clarity and colors create a premium experience that sets your commercial installations apart. The mirror finish makes colors pop, while the wide viewing angles ensure everyone sees the same great image.

♠ Defense & Field Operations

Terminals: Portable communication devices, field data terminals, handheld navigation units, tactical tablets etc.

The 225 PPI clarity ensures fine details and small text, while the robust construction handles the demands of field use.



Ready to Bring Ultra-High Definition to Your Equipment?

Let's talk about how AUO G101UAN04.0 can transform your product's user experience.

Whether you're designing a new medical tablet, upgrading field service tools, or creating commercial installations that need to impress, we're here to help you succeed. Share your requirements, your challenges, and your vision, and we'll provide straightforward guidance to help you make the right choice.

💬 Tell Us About Your Application

📧 Send us your inquiry today

👉 Request a Sample | Ask a Technical Question | Get a Quote

AUO G101UAN04.0 Relevant Supporting Services

♦ Custom-Matched Driver Boards

We provide industrial-grade driver boards fully compatible with AUO G101UAN04.0, supporting plug-and-play functionality via MIPI interface. Built-in with industrial-grade chips, these driver boards are suitable for operation within a temperature range of -20°C to 70°C.

♦ Customized Touch Screens

Capacitive touch screens or resistive touch screens in corresponding sizes can be configured according to your device requirements. The resolution and touch accuracy of the touch screens are perfectly matched to the display performance of the LCD TFT display panels.

♦ High-Precision Bonding Technology

We offer Air bonding and Frame bonding services for integrating touch screens with LCD TFT display panels, adopting industrial-grade bonding processes. The bonding tolerance is controlled within ±0.2mm, with additional dust-proof and anti-fog treatment applied.

If you need a customized integrated solution combining LCD display panel, driver board, touch screen and bonding, feel free to contact us. We will provide a tailor-made compatibility plan based on your device parameters and application scenarios!



FAQ

1. What do you do?
A: We are a professional supplier of TFT LCD display solutions founded in 2013. Our core business is to supply high-quality industrial LCD display modules from leading brands such as AUO, Innolux, and BOE.
2. Besides the LCD panel, do you also provide other related products?
A: Yes, we offer complete display peripheral accessories, including various touch screens (resistive, capacitive, infrared), custom cables, backlight driver boards, main control driver boards (LVDS/eDP driver boards), LED driver boards, and brightness adjustment converters, forming a one-stop solution.
3. Do you support customized LCD displays?
A: Yes, we support deep customization, including non-standard sizes, specific resolutions, special interface definitions, wide temperature and voltage ranges, high-brightness anti-glare processing, etc. The customization service usually has a minimum order quantity requirement. For details, please send an inquiry to contact the sales manager.
4. What payment methods do you support?
A: We support payment methods such as T/T, PayPal (for small amounts), and L/C. Specific terms will be negotiated after the order confirmation.
5. What shipping methods do you use?
A: We usually use international express delivery (such as DHL, FedEx, UPS) for samples and small batch orders; for bulk goods, we use air or sea transportation to save costs. We can negotiate according to your needs.
