800 Nit High Brightness, White LED Backlight, Integrated LED Driver, Reverse-Mount Terminals, eDP 1.2 Interface.

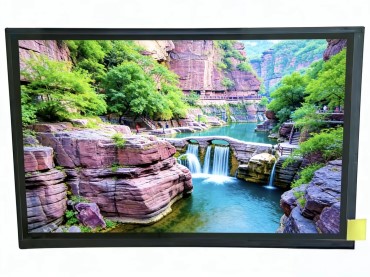

AUO G101UAN01.1 is a 10.1-inch ultra-high-definition industrial LCD display module engineered for one mission: to deliver stunning 224 PPI clarity that stays perfectly readable even under direct sunlight. At its heart lies a stunning 1920×1200 WUXGA resolution with 224 PPI and 800 nit. It means your content cuts through direct sunlight. The landscape-oriented 1920×1200 is optimized for applications that display wide-format content—control panels, spreadsheets, video feeds, and side-by-side data views. It gives you more horizontal real estate exactly where most industrial applications need it. At just 5.05mm thin and 170g light, it disappears into slim enclosures and adds negligible weight to handheld devices. For designers of portable terminals, mobile medical equipment, and field devices, this slim profile opens up possibilities that thicker displays simply cannot match. The AHVA technology delivers true 89/89/89/89 full viewing angles. When multiple operators need to gather around a screen to review data or collaborate on a task, everyone sees the same accurate colors and contrast.
Feature
G101UAN01.0
G101UAN01.1
The Difference
Brightness
380 nits
800 nits
2.1x brighter—true outdoor sunlight readability
Backlight Life
30,000 hours
15,000 hours
Still can operating at 8hrs/day
Thickness
5.35mm
5.05mm
Even slimmer
Weight
140g
170g
Slightly heavier, still ultra-light
Best For
Indoor portable
Indoor/Outdoor high-brightness area
Choose based on your environment
Terminals: Field service tablets, equipment diagnostic tools, maintenance terminals, inspection devices, outdoor plant monitoring units etc.
AUO G101UAN01.1 800 nits brightness ensures schematics, diagnostic data, and equipment manuals remain readable in any light—reducing errors and speeding repairs.
Terminals: Field emergency tablets, mass casualty triage devices, mobile vaccination clinic terminals, outdoor patient intake systems etc.
Critical medical information available when and where it's needed, in any lighting environment.
Terminals: Outdoor POS systems, smart vending machine, outdoor self-service fuel machine, curbside pickup terminals, food truck ordering screens, outdoor event check-in devices etc.
AUO G101UAN01.1 ensures every interaction is clear. Completed transactions, happy customers, and commercial installations that perform in any weather.
1. Installation Guide
Please note that this product does not include installation instructions. We hereby declare that we are not responsible for any damage caused by improper installation. Please ensure you have the necessary skills to complete the installation before purchasing. Thank you for your understanding and cooperation.
2. Compatibility Guarantee
We promise that the product you receive will be compatible with your device. However, please note that we cannot guarantee other specific functionalities.
3. Quality Assurance and Testing
Every LCD tft panel undergoes comprehensive functional testing before shipment to ensure 100% normal operation upon delivery. During testing, old, damaged, cracked, or malfunctioning filters will be repaired or replaced to ensure the product always performs at its best.
4. Post-delivery Precautions
Upon receiving the product, please do not immediately remove the protective film or apply glue to the back of the LCD tft screen. Please be sure to install the new panel first and test the device's sensitivity. This step effectively confirms product quality and avoids potential damage to the device's motherboard and screen.
5. Safety Guidelines During Testing
Before conducting any testing operation, please make sure to disconnect the power supply of the device to prevent damage to the motherboard and screen due to live operation. If the equipment suffers irreparable damage due to failure to follow this requirement, we are not responsible for it. Please operate carefully and strictly follow the above instructions.
