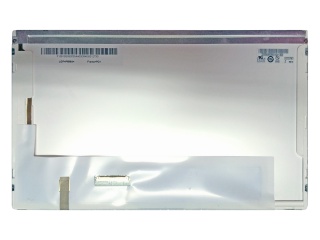

G101STN01.0

Panel Brand	AUO	panel model	G101STN01.0
Panel size	10.1-inch	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	1024(RGB)×600, WSVGA, 117PPI	pixel layout	RGB vertical stripes
display area	222.72(W)×125.28(H) mm	Appearance size	235(W)×143(H)×5.2(D) mm
Brightness (cd/m²)	250 cd/m² (Typ.)	the contrast	500:1 (Typ.) (TM)
visual Angle	70/70/60/60 (Typ.) (CR≥10)	surface treatment	Hardcoating (3H)
display color	262K/16.7M , 45% NTSC	light source type	WLED , 15KhourswithLEDdriver
Panel Weight	180g (Typ.)	Response Time	7/9 (Typ.) (Tr/Td) ms
recommended angle of view	6 o'clock	work pattern	TN, normally white display, transmissive
frame frequency	60Hz	use for	industrial engineering
signal interface	LVDS (1 ch, 6/8-bit) , 40 pins , Connector	touch panel	without
driving voltage	3.3V (Typ.)
application environment	Working temperature: -10 ~60 °C ; Storage temperature: -30 ~70 °C
