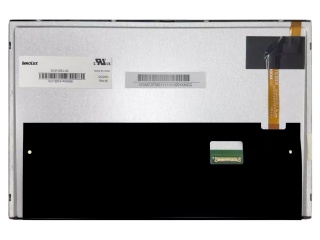

G101ICE-LH2

Panel Brand	Innolux	panel model	G101ICE-LH2
Panel size	10.1-inch	panel type	a-Si TFT-LCD, LCD Module
resolution	1280(RGB)x800, WXGA,149PPI	pixel layout	RGB vertical stripes
display area	216.96(W)x135.6(H) mm	Appearance size	230.7(W)x152.55(H)x7(D) mm
open area	218.96(W)x137.6(H) mm	surface treatment	Hard coating (3H)
display brightness	1200 cd/m² (Typ.)	contrast	800:1(Typ.) (transmission)
recommended angle of view	full-view	Response time	13/12 (Typ.) (Tr/Td) ms
visual Angle	88/88/88/88 (Typ.) (CR≥10)	display mode	AAS, normally black display, transmissive
support color	262K/16.7M	light source type	WLED,50K hours with LED driver
weight	300/315g (Typ./ Max.)	application products	Industrial outdoor highlight
frame frequency	60Hz	touch technology	touchless
interface type	LVDS (1 ch, 6/8-bit) , Terminals
voltage supply	5.0V (Typ.)
application environment	Operating temperature:-30~80 °C; Storage temperature:-40~85 °C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature
BOE	GV101WXM-N11	10.1"	1280×800	400 nits	900:1	WLED	MIPI	40	-20 ~70°C
BOE	GV101WXB-NN0-3GP0	10.1"	1280×800		1000:1	No backlight	LVDS	40	-20~70 ° C
BOE	TV101WUM-LML	10.1"	1200×1920	440 nits	1400:1	WLED	MIPI	51	-10~60 ° C
BOE	ET101WSM-N90	10.1"	1024×600	350 nits	600:1	WLED	LVDS	34	0~60° C
BOE	RV101FBB-N02-V1	10.1"	4920×2880		400:1	No backlight	eDP	40	0~70℃
BOE	TV101WUB-NW6	10.1"	1200×1920		900:1	No backlight	MIPI	40	-20~60 ° C
BOE	ET101WSM-A90	10.1"	1024×600	300 nits	600:1	WLED	LVDS	34	0~60℃
BOE	TV101WUM-NS1	10.1"	1200×1920	450 nits	900:1	WLED	MIPI	34	-20~65 ° C
BOE	TV101WXM-NA0	10.1"	1280×800	450 nits	1000:1	WLED	MIPI	40	-10~60 ° C
BOE	TV101WXM-NLB	10.1"	1280×800	350 nits	1000:1	WLED	MIPI	39	-20~60 ℃
BOE	TV101WUM-NM0	10.1"	1200×1920	410 nits	900:1	WLED	MIPI	51	-10~60 ° C
Innolux	G101ICE-LM1	10.1"	1280×800	350 nits	800:1	WLED	LVDS	30	-10~60 °C
Innolux	G101ICE-LH1	10.1"	1280×800	500 nits	800:1	WLED	LVDS	30	-30~80 ° C
Innolux	G101ICE-LH2	10.1"	1280×800	1200 nits	800:1	WLED	LVDS	30	-30~80 °C
