1000nit high brightness, white LED backlight with a lifespan exceeding 50,000 hours; Connector Reverse Orientation; selectable 6-bit or 8-bit grayscale; mirror-finish surface.

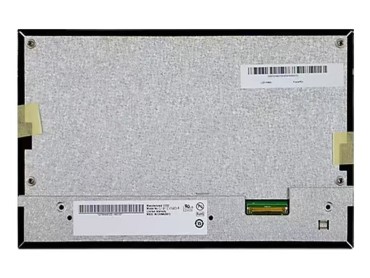

• AUO G101EVN03.0 is a 10.1-inch a-Si industrial TFT LCD panel, with 1000 nit high brightness, especially designed for outdoor or semi-outdoor scenarios such as gas station, charging pile, digital signage, smart vending machine, solar energy system and transportation information display screen etc. • AUO G101EVN03.0 applys MVA TFT display technology, achieving wide visual angle and fast response time. Your devices can realize better color contrast and brightness display from different angles. • AUO G101EVN03.0 is equipped with the contrast ratio of 1300:1, making your devices images cleraer and colors more vivid. It can enhance the visual experience of your clients and leave a good impression of your devices. • AUO G101EVN03.1 is a mirror surface LCD panel. The mirror screen has stronger transparency than matter screen. The mirror technology can reduce the scattering of the light, thereby enhancing the contrast and color reproduction of your devices.
Brand
AUO
Type
a-Si TFT-LCD, LCM
Model
G101EVN03.0
Surface Finish
Matte, Hard Coating (3H)
Size (inch)
10.1 inch
Pixel Layout
RGB Vertical Strip
Outline Dimension
227.69(W)×148.31(H)×7.75(D) mm
Optical Mode
MVA,Normally black display, TM
Active Area
216.96(W)×135.6(H) mm
Backlight Type
WLED, 50K hours, without LED driver
Visual Area (WxH mm)
---
Interface
LVDS (1 ch, 6/8-bit) , 40 pins, Connectors
Optimal Visual Angle
Full-view
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Resolution
1280(RGB)×800, WXGA, 149PPI
Response Time
25 (Typ.)(Tr+Td) ms
Brightness (cd/m²)
1000
Display Colors
262K/16.2M, 45% NTSC
Contrast Ratio
1300:1 (Typ.) (TM)
Operating Temperature (°C )
-20~ 60
Operating Voltage
3.3V (Typ.)
Storage Temperature (°C )
-30~70
Operating Frequency
60Hz
Weight
350g (Max.)
Application
Industrial Control/Outdoor High-brightness Scenarios
♦ We can change length, placement, and pins of the cable based on what you need, or add extra connectors to make it work better. With customization, you can get safer circuit connections and more dependable performance.
♦ You can choose the appropriate thickness to match the touch screen or customize the protective glass according to your needs, and use optical bonding technology to improve the durability and related performance of LCD displays.
♦ We can offer different LCD controller board that is suitable your LCD panels. We can also develop more functions of LCD controller boards according to your needs. Common customization features include interface conversion, control signal generation, data transmission, and setting of the LCD panel startup logo, etc.
1. Installation Guide
Please note that all LCD panels do not include installation instructions. We hereby declare that we are not responsible for any damage caused by improper installation. Please ensure you have the necessary skills to complete the installation before purchasing. Thank you for your understanding and cooperation.
2. Compatibility Guarantee
We promise that the product you receive will be compatible with your device. However, please note that we cannot guarantee other specific functionalities.
3. Quality Assurance and Testing
Every LCD panel undergoes comprehensive functional testing before shipment to ensure 100% normal operation upon delivery. During testing, old, damaged, cracked, or malfunctioning filters will be repaired or replaced to ensure the product always performs at its best.
4. Post-delivery Precautions
Upon receiving the product, please do not immediately remove the protective film or apply glue to the back of the LCD panel. Please be sure to install the new panel first and test the device's sensitivity. 5. Safety Guidelines During Testing
Before conducting any testing operation, please make sure to disconnect the power supply of the device to prevent damage to the motherboard and panel due to live operation. Please operate carefully and strictly follow the above instructions.
FAQs：
1. What product does your company mainly offer?
A: We are a China supplier mainly offering new brand LCD panel, including AUO/IVO/BOE/Innolux/Sharp/Kyocera etc. We guarantee that every LCD panel from us are original. And we also provide relevant accessories such as LCD controller board, capacitive touch screen, resistive touch screen, adapter plate, light sensor cable and custom cable. 2. Do you offer sample?
A: Yes, we suggest that every client buys one sample for test. We do not have MOQ (MOQ=1 pcs), if the sample passes test, we are willing to apply a discount for your lager order. 3. What time will LCD panel be delivered?
A: Every model is different according to its production suitation. If the model is in our inventory, it will be dispatched within 1 to 3 days. If we don't have this model in stock, it will be dispatched within 3 to 7 days. We have warehouses in Hong Kong, Shanghai and Shenzhen. 4. On which devices can AUO G101EVN03.0 be applied?
A: AUO G101EVN03.0 is designed for outdoor or semi-outdoor scenarios such as gas station, charging pile, digital signage, smart vending machine, solar energy system and transportation information display screen etc. 5. What brightness and temperature does AUO G101EVN03.0 achieve? A: AUO G101EVN03.0 has a high brightness of 1000 nit and can operates -20~60℃.
