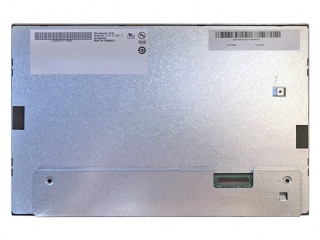

G101EVN01.3

Panel Brand	AUO	panel model	G101EVN01.3
Panel size	10.1	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	1280(RGB)×800, WXGA, 149PPI	pixel layout	RGB vertical stripes
display area	216.96(W)×135.6(H) mm	Appearance size	227.91(W)×148(H)×8.34(D) mm
Brightness(cd/m²)	500 cd/m² (Typ.)	the contrast	1300:1 (Typ.) (transmission)
visual Angle	85/85/85/85 (Typ.) (CR≥10)	surface treatment	Hard coating, reflectivity 1.5% (Typ.)
number of colors	262K/16.2M , 45% NTSC	optical type	WLED , 50K hours with LED driver
Panel Weight	350g (Max.)	response time	25 (Typ.) (Tr+Td) ms
recommended angle of view	6 o'clock	display mode	MVA, normally black display, transmissive
frame frequency	60Hz	use for	industrial engineering
signal interface	40 pins LVDS (1 ch, 6/8-bit) , Terminals
driving voltage	3.3V (Typ.)
application environment	Operating temperature: -20 ~70 °C ; Storage temperature: -30 ~80 °C
