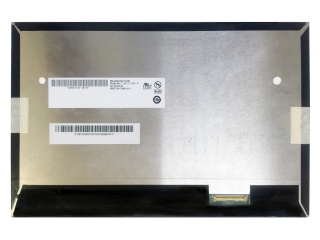

G101EVN01.0

Panel Brand	AUO	panel model	G101EVN01.0
Panel size	10.1-inch	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	1280(RGB)×800, WXGA, 149PPI	pixel layout	RGB vertical stripes
display area	216.96(W)×135.6(H) mm	Appearance size	229.46(W)×149.2(H)×4.96(D) mm
Brightness(cd/m²)	300 (Typ.)	the contrast	1300 : 1 (Typ.) [Transmission]
visible size	220.36(W)×139.1(H) mm	surface treatment	Hard coating (3H), reflectivity1.5% (Max.)
number of colors	262K , 45% NTSC	optical mode	MVA, normally black display, transmissive
Panel Weight	187g (Max.)	response time	25 (Typ.) (Tr+Td) ms
recommended angle of view	6 o'clock	backlight system	WLED , 15KhourswithLEDdriver
frame frequency	60Hz	use for	industrial engineering
signal interface	LVDS (1 ch, 6-bit) , Terminals, 40 pins	touch panel	touchless
driving voltage	3.3V (Typ.)
application environment	Storage temperature: -30 ~70 °C Operating temperature: -20 ~60 °C
