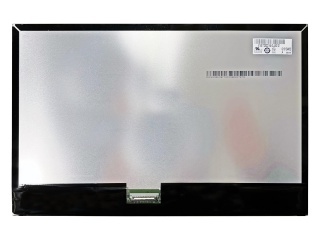

G101EAN02.4

Panel Brand	AUO	panel model	G101EAN02.4
Panel size	10.1	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	1280(RGB)×800, WXGA, 149PPI	pixel layout	RGB vertical stripes
display area	216.96(W)×135.6(H) mm	Appearance size	227.72(W)×147.8(H)×4.8(D) mm
Brightness(cd/m²)	400 (Typ.)	the contrast	800 : 1 (Typ.) [Transmission]
visual Angle	89/89/89/89 (Typ.) (CR≥10)	surface treatment	Hard coating
number of colors	16.7M , 45% NTSC	optical mode	AHVA, normally black display, transmissive
Panel Weight	200g (Max.)	response time	29 (Typ.) (Tr+Td) ms
recommended angle of view	6 o'clock	Backlight type	WLED , 20K hours with LED driver
frame frequency	60Hz	use for	industrial engineering
signal interface	eDP (1 Lane) , Terminals, 30 pins	touch panel	touchless
driving voltage	3.3V (Typ.)
application environment	Storage temperature: -20 ~60 °C Operating temperature: 0 ~ 60 °C
