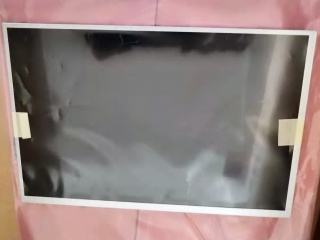

G101EAN02.2

Panel Brand	AUO	panel model	G101EAN02.2
Panel size	10.1	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	1280(RGB)×800, WXGA, 149PPI	pixel layout	RGB vertical stripes
display area	216.96(W)×135.6(H) mm	Appearance size	227.91(W)×148(H)×7.75(D) mm
Brightness(cd/m²)	500 cd/m² (Typ.)	the contrast	800:1 (Typ.) (transmission)
visual Angle	89/89/89/89 (Typ.) (CR≥10)	surface treatment	Hard coating
number of colors	16.7M , 45% NTSC	optical mode	AHVA, normally black display, transmissive
Panel Weight	290g (Max.)	response time	29 (Typ.) (Tr+Td) ms
recommended angle of view	6 o'clock	light source type	WLED , 50KhourswithLEDdriver
frame frequency	60Hz	use for	industrial engineering
signal interface	40 pins LVDS (1 ch, 8-bit) , Terminals	touch panel	touchless
driving voltage	3.3V (Typ.)
application environment	Operating temperature: -20 ~70 °C ; Storage temperature: -30 ~80 °C
