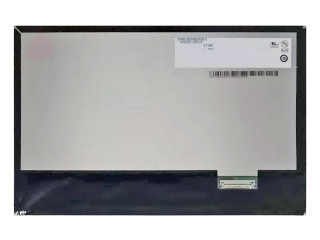

G101EAN02.1

Panel Brand	AUO	panel model	G101EAN02.1
Panel size	10.1	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	1280(RGB)×800, WXGA, 149PPI	pixel layout	RGB vertical stripes
display area	216.96(W)×135.6(H) mm	Appearance size	227.72(W)×147.8(H)×4.8(D) mm
Brightness(cd/m²)	400 cd/m² (Typ.)	the contrast	800:1 (Typ.) (transmission)
visual Angle	89/89/89/89 (Typ.) (CR≥10)	surface treatment	Hard coating
number of colors	16.7M , 50% NTSC	work pattern	AHVA, normally black display, transmissive
Panel Weight	195g (Max.)	response time	29 (Typ.) (Tr+Td) ms
recommended angle of view	6 o'clock	Lamp Type	WLED, 20 K hours with LED driver
frame frequency	60Hz	use for	industrial engineering
signal interface	LVDS (1 ch, 8-bit) , 40 pins , Terminals	touch panel	touchless
driving voltage	3.3V (Typ.)
application environment	Operating temperature: -20 ~60 °C ; Storage temperature: -20 ~60 °C
