Wide temperature, Easy replacement of backlight, White LED backlight, Lifespan exceeding 50,000 hours, LED driver Included, Flipping display up, down, left and right, 6/8-bit grayscale options, Matte surface

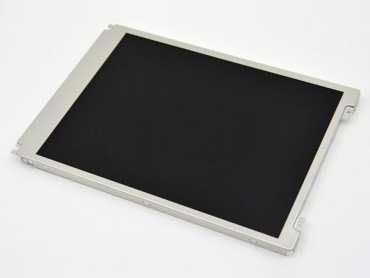

AUO G084SN05 V9 is an 8.4-inch highly reliable LCD tft panel specially designed for industrial control scenarios. It can adapt to extreme conditions with an ultra-wide temperature range of -30℃ to 85℃, and is equipped with 3H hard coating to withstand wear and dust in industrial environments. It can also be embedded in various small control terminals with an 8mm ultra-thin body. From the PLC panel in low-temperature storage to the data collector in high-temperature workshops, it can stably meet the long-term and high-frequency display requirements of industrial scenarios, and is a highly adaptable display solution for reducing equipment operation and maintenance costs.
Brand
AUO
Type
a-Si TFT-LCD
Model
G084SN05 V9
Surface Finish
Matte Surface, Hard Coating (3H)
Size (inch)
8.4
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
203(W)×142.5(H)×8(D)
Optical Mode
TN
Active Area (WxH mm)
170.4(W)x127.8(H)
Backlight Type
WLED, 50K hours
Viewing Angle
80/80/80/60 (Typ.)(CR≥10)
Interface
LVDS (1 ch, 6/8-bit) , 20 pins
Resolution
800(RGB)×600,SVGA,119PPI
Response Time
20/10 (Typ.) (Tr+Td) ms
Brightness (cd/m²)
450
Dispay Colors
262K/16.2M,45% NTSC
Contrast Ratio
600:1
Operating Temperature (°C )
-30~ 85
Operating Voltage
3.3V (Typ.)
Storage Temperature (°C )
-30~85
Operating Frequency
60Hz
Weight
250g
Application
Industrial Control
HXD is a professional supplier that has been deeply involved in the LCD tft panel industry for 12 years. We provide you with global high-end brands LCD panel such as AUO, BOE, IVO, CHEIMEI, Innolux, and Sharp. We also have our own independent R&D production capacity and can provide supporting accessories such as driver boards, cables, and touch screens that are compatible with LCD screens, achieving "LCD tft display+ accessories" one-stop supply, eliminating the complexity of multiple channel for customers.
1. Q: Can AUO G084SN05 V9 be used in outdoor scenarios? A: Its brightness is 450cd/㎡, which is more suitable for industrial indoor environments. If it needs to be used outdoors, a high-brightness version (with brightness ≥ 700cd/㎡) can be customized.
2. Q: Does this LCD TFT panel support touch functionality? A: The basic model does not support touch. It can be integrated with a resistive touch module as per customer requirements (compatible with industrial gloves for operation), and the sample production cycle is 5 days.
3. Q: What is the delivery cycle for bulk purchases? A: Orders of 1000 pieces or less are delivered within 48 hours of order placement; orders over 1000 pieces have a production cycle of approximately 7 - 14 working days.
4. Q: What is the warranty period for the LCD tft panel? A: A 12-month warranty is provided. During the warranty period, non-human-induced faults can be replaced free of charge.
5. Q: Can samples be provided for testing? A: One sample (not free) can be provided. The testing period is 7 days, and test guidance documents are supported.
