Wide temperature range, easy-to-replace backlight, white LED backlight, lifespan exceeding 50,000 hours, includes LED driver, 180° flip display, selectable 6- or 8-level grayscale, matte finish.

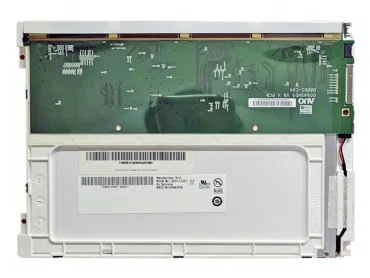

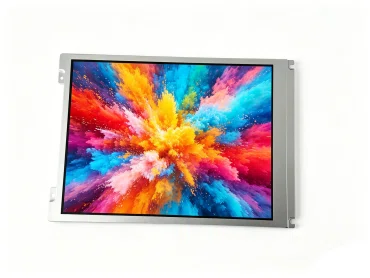

AUO G084SN05 V8 (also known as G084SN05 V.8) is an 8.4-inch a-Si TFT-LCD industrial display module designed for wide temperature ranges. It features a WLED backlight and an built-in LED backlight driver but does not include touch functionality. This panel can operate and be stored within a temperature range of -30°C to 85°C and has a vibration resistance of 1.5G (14.7 m/s²). G084SN05 V8 has a display resolution of 800 (RGB) × 600, an aspect ratio of 4:3, and pixels arranged in vertical RGB stripes. For backlight, this LCD panel uses a side light source with 2 strings of WLED, with a light lifespan of 50,000 hours. G084SN05 V8 features an LVDS signal interface with a total of 20 pins, connected via connectors, and operates at a drive voltage of 3.3V (typ.). Based on these features, AUO G084SN05 V8 is widely used in portable HMI panels, charging station display terminals, various testing instrument terminals, in-vehicle display devices, facial recognition systems, and other similar applications.
Brand
AUO
Type
a-Si TFT-LCD, LCM
Model
G084SN05 V8
Surface Finish
Matte, Hard Coating (3H)
Size (inch)
8.4-inch
Pixel Layout
RGB Vertical Strip
Outline Dimension
203(H)×142.5(V)×8.3(D) mm
Optical Mode
TN, Normally White Display, TM
Active Area
132.48×99.36 mm (H×V)
Backlight Type
2 strings WLED, 50K hours, with LED driver
Visual Area
170.4(H)×127.8(V) mm
Interface
LVDS (1 ch, 6/8-bit), 20 pins , Connector
Optimal Visual Angle
/
Viewing Angle
80/80/80/60 (Typ.)(CR≥10)
Resolution
800(RGB)×600, SVGA, 4:3
Response Time
20/10 (Typ.)(Tr/Td) ms
Brightness (cd/m²)
450
Display Colors
262K/16.2M, 45% NTSC
Contrast Ratio
600 : 1 (Typ.) (TM)
Operating Temperature (°C )
-30 ~ 85
Operating Voltage
3.3V (Typ.)
Storage Temperature (°C )
Operating Frequency
60Hz
Touch Function
No
Power Consumption
4.2W (Typ.)
Weight
250±10g
Application
Industrial Control
Production State
Out of Production
Hengxinda is a China supplier and manufacturer specializing in industrial LCD screens and core LCD display components. With 15 years of deep expertise in the industrial display, we provide competitive LCD display solutions to customers worldwide through our unique dual-engine model of direct supply from original equipment manufacturers and customization at our own factories. We have established long-term, stable strategic partnerships with the world’s leading panel manufacturers and maintain a consistent supply of original Grade A industrial LCD screens ranging from 3.5 to 32 inches from the following brands: AUO, BOE, IVO, Sharp, Chimei Innolux, Kyocera, and others. In addition to LCD panel distribution, we specialize in the R&D and production of related accessories. Our product lines include: capacitive touch screens, resistive touch screens, infrared touch screens, LCD driver boards, LED driver boards, knob dimming modules, button dimming modules (for brightness adjustment in special environments such as medical, marine, and aviation applications), and cable : LVDS cables, eDP cables, and custom industrial display cables across various categories. We Promise: ♦ Constant Stock and Fast Shipping: We maintain a safety stock of standard brand models and in-house manufactured boards, enabling shipment within 24–48 hours of receiving an order. ♦ End-to-End Logistics Traceability: We collaborate closely with DHL, FedEx, UPS, and major ocean freight forwarders to provide full tracking and declared value services. ♦ 12-Month Manufacturer Warranty: All products come with a minimum one-year official warranty; our in-house boards and touchscreen products are eligible for extended technical support. ♦ 1-on-1 Remote Debugging by Engineers: We offer a 24/7 rapid response mechanism. During the equipment debugging phase, our hardware and software engineers will provide you with 1-on-1 online technical support. ♦ Long-Term Supply Lifecycle Guarantee: Recognizing the long lifecycle of industrial control equipment, Hengxinda commits to providing 3–5 years of stable, long-term supply for core models. For EOL models, we offer a comprehensive solution featuring our own in-house boards and alternative panel options to ensure your projects never face production interruptions.
1. Is AUO G084SN05 V8 in stock?
A: We have a limited quantity in stock. This model is currently discontinued, but we have retained a limited stock. If the stock is sold out at the time of your inquiry, we will provide you with several compatible LCD display options.
2. Are you an authorized AUO distributor?
A: Yes. We have maintained a partnership with AUO since our establishment. All AUO LCD panels we supply are sourced directly from AUO’s factory, offering more competitive pricing than other distributors. Furthermore, we guarantee that we never provide refurbished LCD panels.
3. Do you offer customization services?
A: Absolutely. We can customize LCD screens with different brightness levels and add auxiliary mounting structures according to customer requirements. For touchscreens, we can customize the dimensions of the functional film and cover glass, as well as the material and patterns on the cover glass. We select the appropriate touch panel driver solution based on the operating environment. Touch panels can be configured with either frame-bonded or full-laminated designs, and can be treated with AG, AR, AF, or UV-resistant coatings. Customization is available. For LCD cables, we can accommodate custom connector types and cable lengths, and use different materials based on the protection rating required for the customer’s product.
4. How can I contact you?
A: Click the form below to submit an inquiry or use the contact navigation bar on the right to reach us. Our sales representatives will contact you within 6 hours of receiving your message.
5. What is your warranty period?
A: All products we provide come with a one-year warranty. Within one year, we will repair or replace products free of charge for non-human-caused damage.
