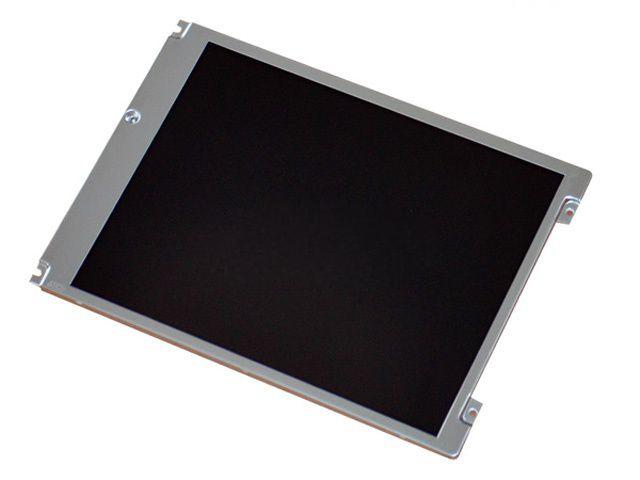

G084SN03 V3

Panel Brand	AUO	panel model	G084SN03 V3
Panel size	8.4-inch	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	800(RGB)×600, SVGA, 119PPI	pixel layout	RGB vertical stripes
display area	170.4(W)×127.8(H) mm	Appearance size	203(W)×142.5(H)×6.2(D) mm
Brightness(cd/m²)	250 cd/m² (Typ.)	the contrast	600:1 (Typ.) (TM)
visual Angle	80/80/80/60 (Typ.) (CR≥10)	surface treatment	Hard coating (3H)
number of colors	262K/16.2M , 45% NTSC	work pattern	TN, normally white display, transmissive
Panel Weight		response time	20/10 (Typ.) (Tr/Td) ms
viewing direction		light source type	3 strings WLED , 30K hours, with LED driver
frame frequency	60Hz	use for	industrial engineering
signal interface	LVDS (1 ch, 6/8-bit) , 20 pins , Terminals	touch panel	without
driving voltage	3.3V (Typ.)
application environment	Operating temperature: -20 ~70 °C ; Storage temperature: -30 ~80 °C
