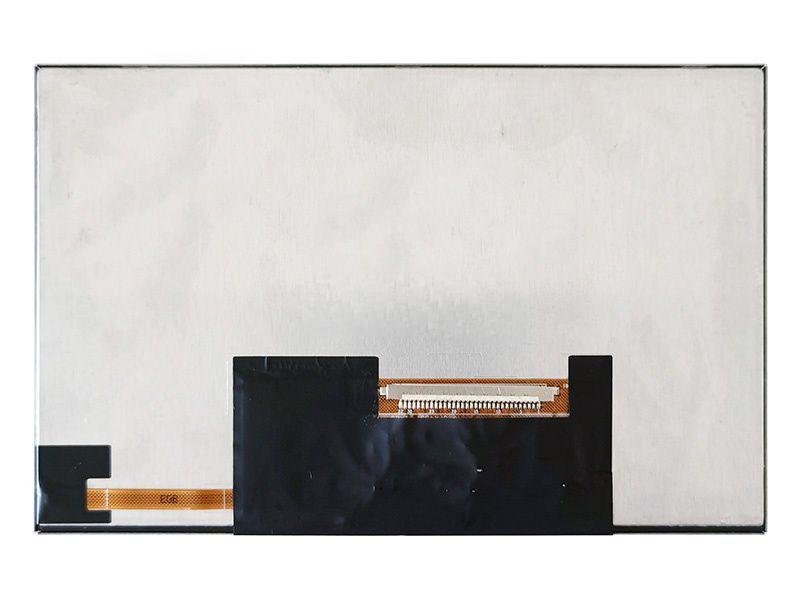

G070VAN01.1

Panel Brand	AUO	panel model	G070VAN01.1
Panel size	7.0 inches	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	800×480(RGB), WVGA, 133PPI	pixel layout	RGB horizontal stripes
display area	152.4(W)×91.44(H) mm	Appearance size	166.6(W)×107(H)×10(D) mm
Brightness(cd/m²)	200 cd/m² (Typ.)	the contrast	1300:1 (Typ.) (transmission)
visual Angle	85/85/85/85 (Typ.) (CR≥10)	surface treatment	matte
number of colors	262K/16.7M , 60% NTSC	display mode	AHVA, normally black display, transmissive
Panel Weight	160g (Typ.)	response time	11/19 (Max.) (Tr/Td) ms
recommended angle of view	full-view	light source type	WLED [7S2P] , 30K hours, no drive
frame frequency	60Hz	used for	industrial engineering
signal interface	30 pins LVDS (1 ch, 6/8-bit) , Terminals	touch panel	touchless
driving voltage	3.3V (Typ.)
application environment	Operating temperature: -20 ~70 °C ; Storage temperature: -30 ~80 °C
